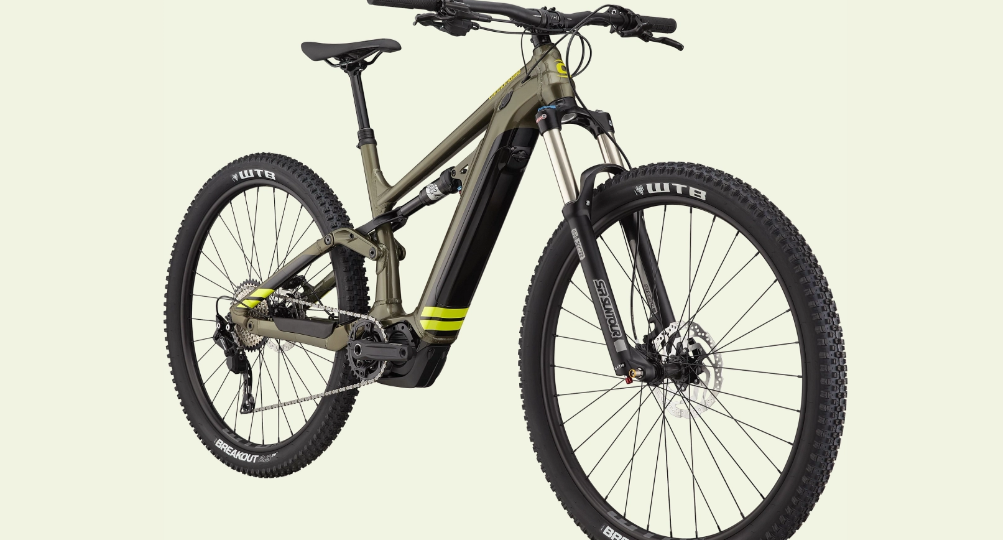

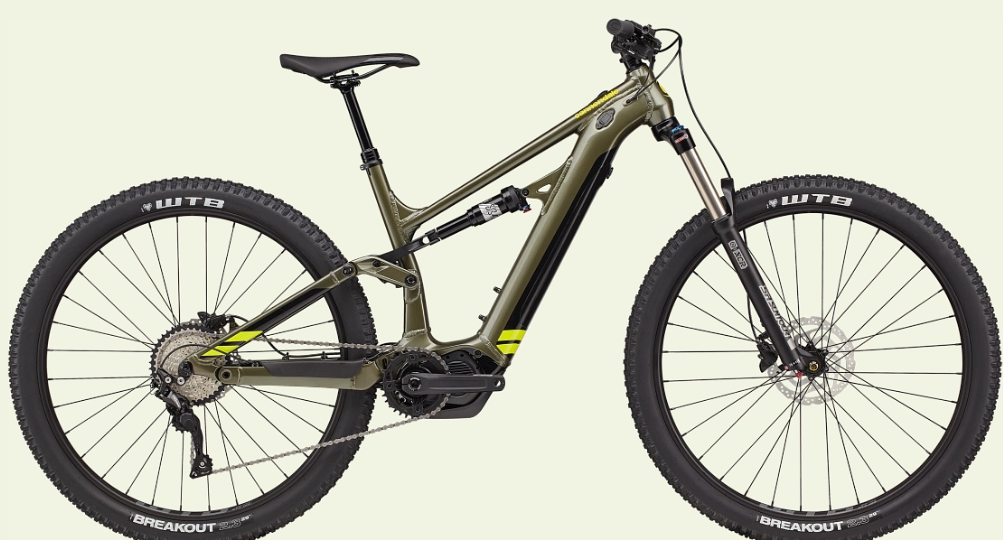

2025 Cannondale Moterra 5 – Electric Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Moterra 5 |
|
Vehicle Category |
Electric Mountain Bike |
|
Application |
Trail riding, all-mountain biking |
|
Starting Price (2025) |
$3,999.00 USD |
|
Color Options |
Mantis, Black |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
150mm travel, SmartForm C2 Alloy, Cannondale Tuned Suspension, removable downtube battery, internal cable routing, 148x12mm thru-axle, post mount brake, tapered headtube |
|
Fork |
SR Suntour XCR LO Boost 29, 140mm travel, 15mm thru axle, tapered alloy steerer |
|
Rear Shock |
X-Fusion 02 Pro RL, Rebound and Lockout |
|
Drivetrain Compatibility |
Shimano Deore 10-speed |
|
Dropouts |
148x12mm thru-axle |
|
Bottom Bracket |
Not specified (Shimano STEPS E7000 integrated) |
|
Crankset |
FSA Shimano E-Bike, 165mm, FSA Megatooth, 34T |
|
Chain |
Shimano Deore, 10-speed |
|

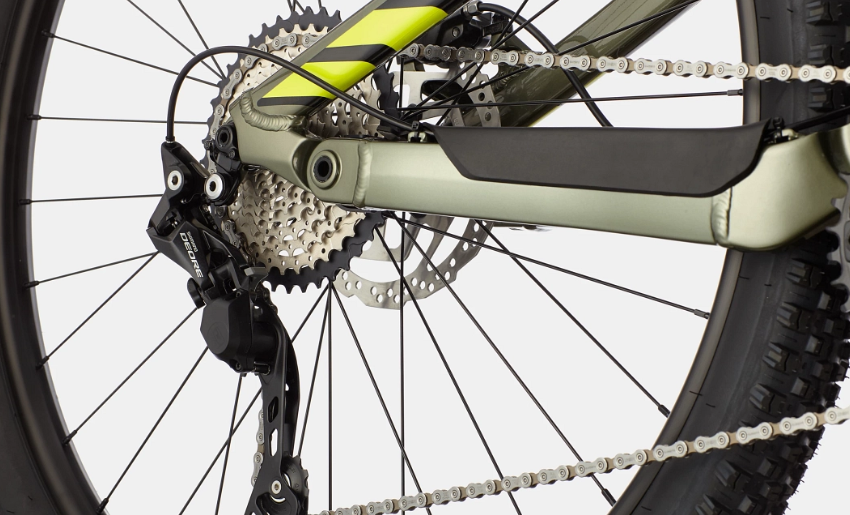

Rear Derailleur |
Shimano Deore M6000 |
|
Shifter |
Shimano Deore M4100, 10-speed |
|
Cassette |
Shimano HG500, 11-42, 10-speed |
Components & Features
|
Specification |
Details |
|
Seating |
1 rider (Cannondale Ergo XC) |
|
Fuel Type |
Electric (Shimano STEPS BT-E8035, 504Wh) |
|
Wheels/Tyres |
(F) WTB Breakout, 29x2.3", DNA Compound, Comp Level, 30TPI / (R) WTB Breakout, 29x2.3", DNA Compound, Comp Level, 30TPI |
|
Wheel Size |
29" in |
|
Brakes |
Shimano MT200 hydraulic disc, 180/180mm RT10 rotors |
|
Brake Levers |
Shimano MT200 hydraulic disc |
|

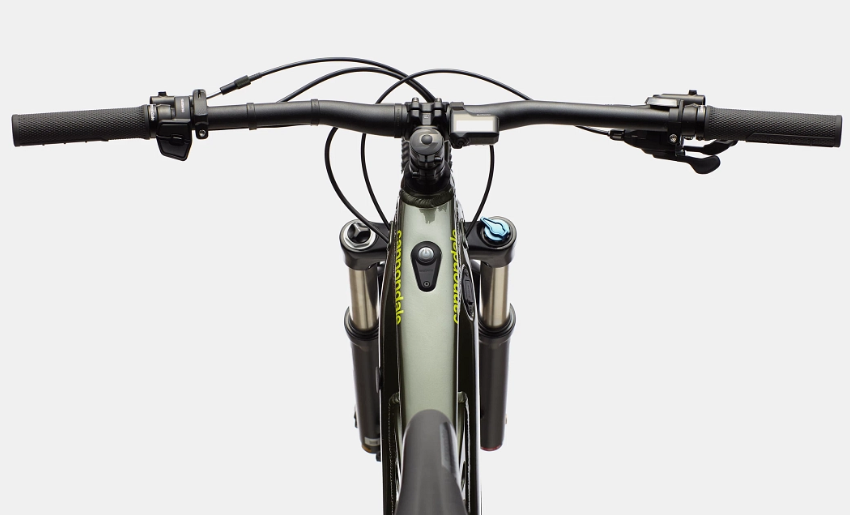

Handlebar |
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm |
|
Stem |
3D Forged 6061 Alloy, 1-1/8", 31.8, 7° |
|
Headset |
Integrated Sealed Bearing, Tapered |
|
Saddle |
Cannondale Ergo XC |
|
Seatpost |
TranzX dropper, internal routing, 31.6, 100mm (S), 120mm (M), 130mm (L-XL) |
|
Seatpost Clamp |
Integrated |
|
Grips |
Cannondale Locking Grips |
|
Front Hub |
Shimano MT400, 15x110mm thru-axle |
|
Rear Hub |
Shimano MT400, 12x148mm thru-axle |
|
Rims |
WTB STX i25 TCS, 32h, tubeless ready |
|
Spokes |
Stainless Steel, 14g |
|
Interior Features |
Internal cable routing, removable downtube battery |
|

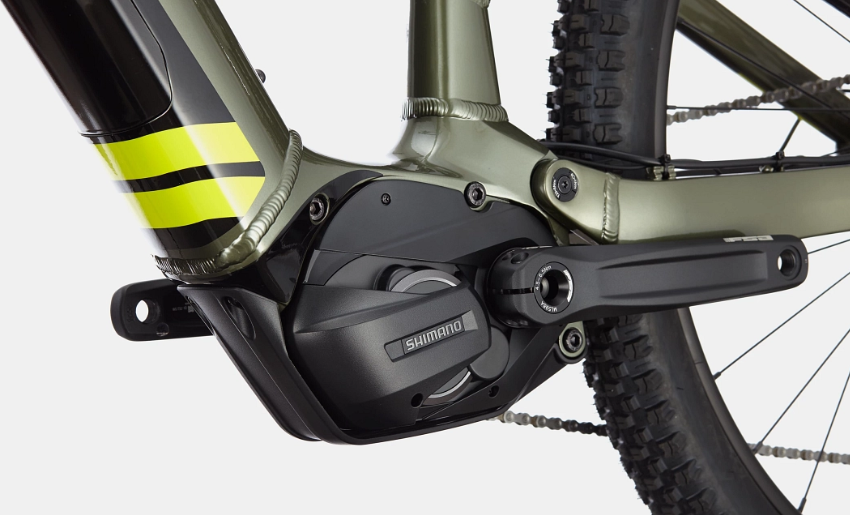

Drive Unit |
Shimano STEPS DU-E7000, 250W, up to 60Nm torque |
|
Battery |
Shimano STEPS BT-E8035, 504Wh |
|
Charger |
Shimano Battery Charger 2A |
|
Display |
Shimano SC-E7000, Bluetooth enabled |
|
Range |
Up to 100 km (60 mi, varies by terrain, rider weight, and assist mode) |
