2025 Cannondale Moterra 3 – Electric Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Moterra 3 |
|
Vehicle Category |
Electric Mountain Bike |
|
Application |
All-mountain and trail riding |
|
Starting Price (2025) |
$5,000.00 USD |
|
Color Options |
Chalk, Matte Black |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Moterra, SmartForm C1 Alloy, 29" wheels, 150mm travel, Cannondale Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtube, 40mm two-bolt kickstand compatible, integrated Moterra rear rack and fender mounts |
|
Fork |
RockShox Psylo Silver RC, 160mm, Motion Control, SoloAir, 15x110mm Maxle, tapered steerer, 44mm offset |
|
Rear Shock |
RockShox Deluxe Select, DebonAir+, adjustable rebound, 230x62.5mm |
|
Drivetrain Compatibility |
Shimano CUES U6000 LinkGlide 11-speed |
|
Dropouts |
148x12mm thru-axle, UDH |
|
Bottom Bracket |

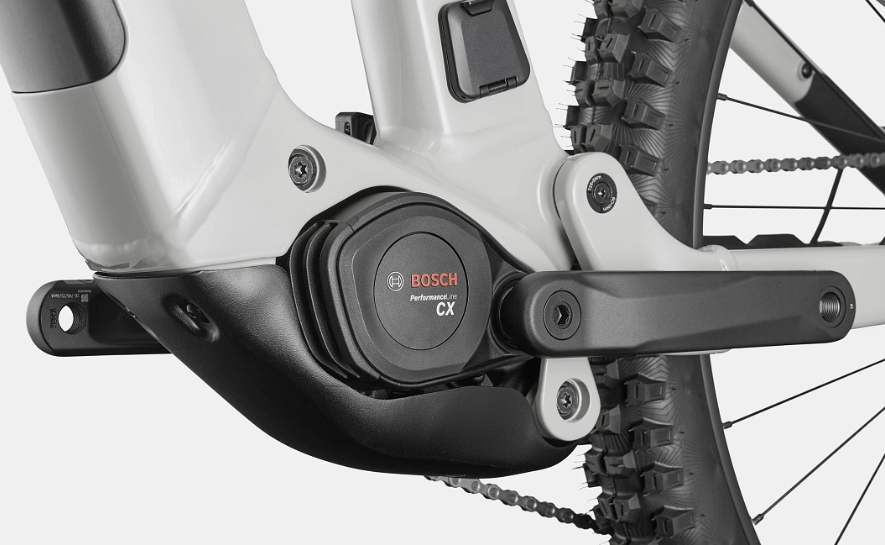

Not specified (Bosch Performance Line CX integrated) |
|
Crankset |
FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T |
|
Chain |
Shimano LG500, LinkGlide, 11-speed |
|

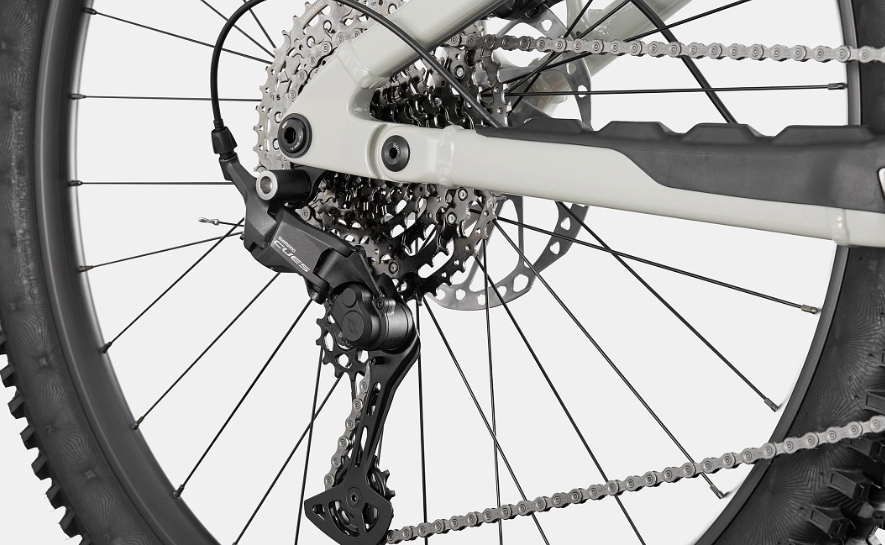

Rear Derailleur |
Shimano CUES U6000, LinkGlide |
|
Shifter |
Shimano CUES U6000, 11-speed, LinkGlide |
|
Cassette |
Shimano CUES LG400, LinkGlide, 11-50, 11-speed |
Components & Features
|
Specification |
Details |
|
Seating |
1 rider (WTB Silverado Medium) |
|
Fuel Type |
Electric (Bosch PowerTube, 800Wh) |
|
Cargo Capacity |
Not specified (integrated Moterra rear rack and fender mounts) |
|
Wheels/Tyres |
(F) Continental Kryptotal-F, 29x2.4", Enduro Soft Black Foldable / (R) Continental Kryptotal-R, 29x2.4", Enduro Soft Black Foldable |
|
Wheel Size |
29" in |
|
Brakes |
Shimano MT520 4-piston hydraulic disc, 203mm RT64 rotors |
|
Brake Levers |
Shimano MT501 hydraulic disc |
|

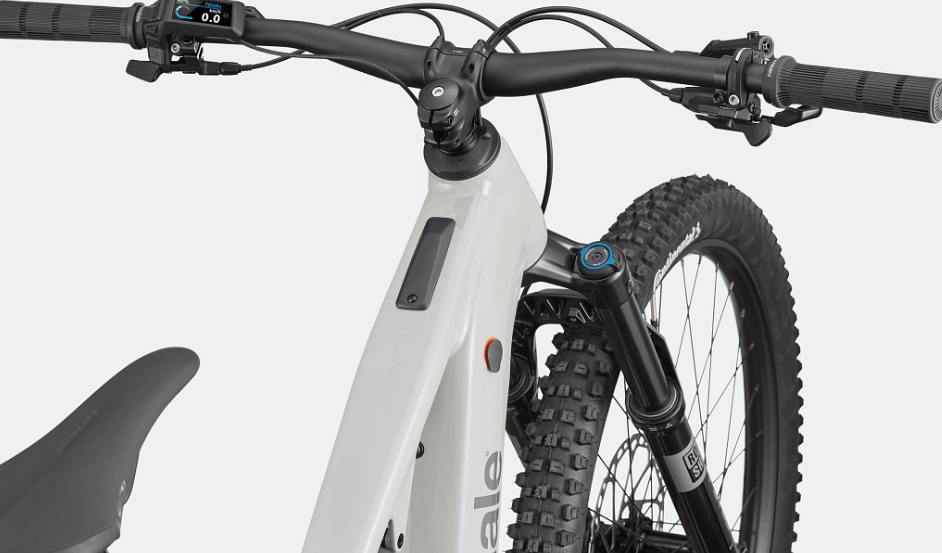

Handlebar |
Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm |
|
Stem |
Cannondale 1, 6061 Alloy, 35.0, 40mm, 0° |
|
Headset |
Acros ICR, 1.5" to 1.8", sealed bearings |
|
Saddle |
WTB Silverado Medium |
|
Seatpost |
Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL) |
|
Seatpost Clamp |
Integrated |
|
Grips |
Cannondale TaperRidge |
|
Front Hub |
Shimano TC500, 15x110mm thru-axle |
|
Rear Hub |
Shimano TC500, 12x148mm thru-axle, centerlock |
|
Rims |
WTB ST i30 TCS, 30mm inner width, 32h, tubeless compatible |
|
Spokes |
DT Swiss Champion 2.0 |
|
Interior Features |
Internal cable routing, removable downtube battery, alloy skid plate |
|
Exterior Features |
Bosch PowerMore range extender compatible, integrated Moterra rear rack and fender mounts |
