2025 Cannondale Moterra 2 – Electric Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Moterra 2 |
|
Vehicle Category |
Electric Mountain Bike |
|
Application |
Trail riding, enduro, all-mountain |
|
Starting Price (2025) |
$6,800.00 USD |
|
Color Options |
Jade |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Moterra Carbon, 29" wheels, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtube, 40mm two-bolt kickstand compatible |
|
Fork |
RockShox ZEB Select, 160mm, Charger RC, DebonAir+, 15x110mm Maxle, 44mm offset |
|
Rear Shock |
RockShox Deluxe Select+, DebonAir+, 2-Pos mode adjust, adjustable rebound, 230x62.5mm |
|
Drivetrain Compatibility |
Shimano XT/CUES U8000, LinkGlide, 11-speed |
|
Dropouts |
148x12mm thru-axle, UDH |
|
Bottom Bracket |
Bosch, integrated |
|
Crank |
FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T |
|
Chain |
Shimano LG500, LinkGlide, 11-speed |
|

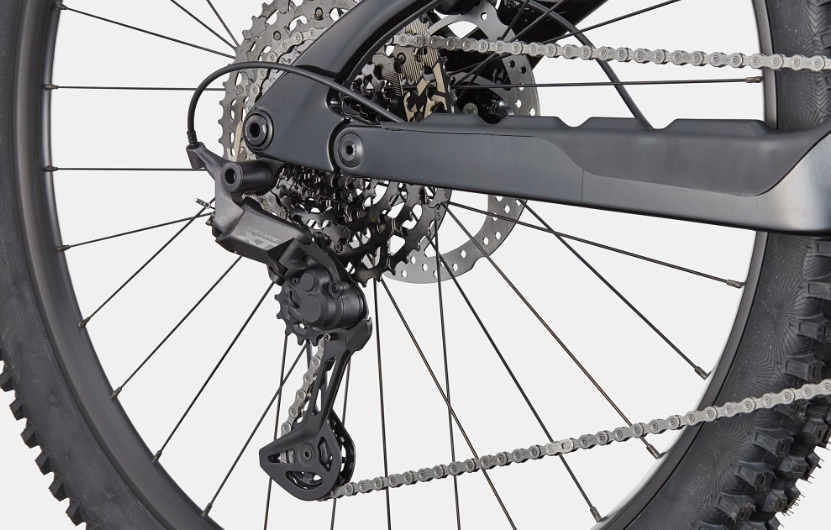

Rear Derailleur |
Shimano XT M8130, LinkGlide |
|
Shifters |
Shimano CUES U8000, 11-speed, LinkGlide |
|
Cassette |
Shimano CUES LG700, LinkGlide, 11-50, 11-speed |
Components & Features
|
Specification |
Details |
|
Seating |
1 passenger (Fizik Terra Aidon X5, 145mm, Wingflex, S-Alloy Mobius rail) |
|
Fuel Type |
Electric |
|
Wheels/Tyres |
(F) Continental Kryptotal-F, 29x2.4", Enduro Soft Black Foldable / (R) Continental Kryptotal-R, 29x2.4", Enduro Soft Black Foldable |
|
Wheel Size |
29” in |
|
Brakes |
Magura MT5 4-piston hydraulic disc, 203mm Storm rotors |
|
Brake Levers |
Magura MT5 hydraulic disc |
|
Handlebar |
Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm |
|
Stem |
Cannondale Trail HeadsUp w/ integrated display mount, 3D Forged 6061 Alloy, 1-1/8", 45mm, 0° |
|
Headset |
Acros ICR, 1.5" to 1.8", sealed bearings |
|
Saddle |
Fizik Terra Aidon X5, 145mm, Wingflex, S-Alloy Mobius rail |
|
Seatpost |
Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL) |
|
Seatpost Clamp |
Integrated |
|
Grips |
Cannondale TaperRidge |
|
Front Hub |
Shimano TC500, 15x110mm thru-axle |
|
Rear Hub |
Shimano TC500, 12x148mm thru-axle, centerlock |
|
Rims |
WTB ST i30 Tough TCS, 30mm inner width, 32h, tubeless compatible |
|
Spokes |
DT Swiss Champion 2.0 |
|
Exterior Features |
Bosch PowerMore range extender compatible |
|

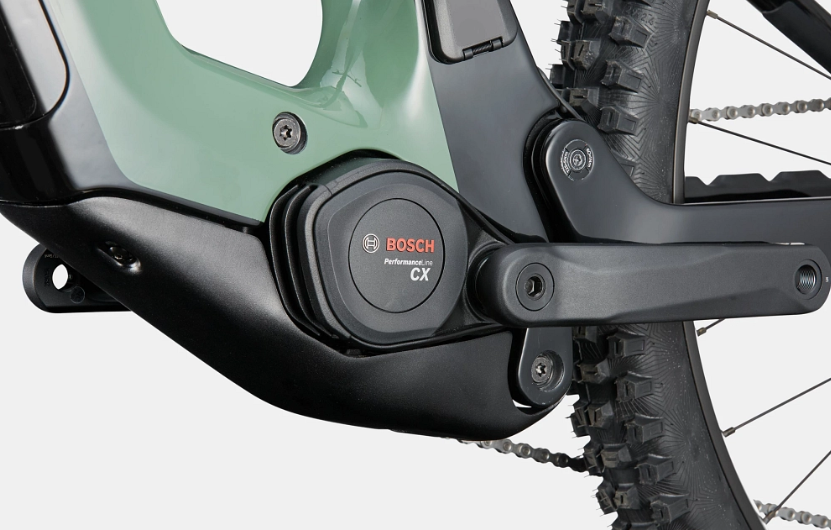

Drive Unit |
Bosch Performance Line CX |
|
Battery |
Bosch PowerTube, 800Wh |
|
Charger |
Bosch 4A |
|

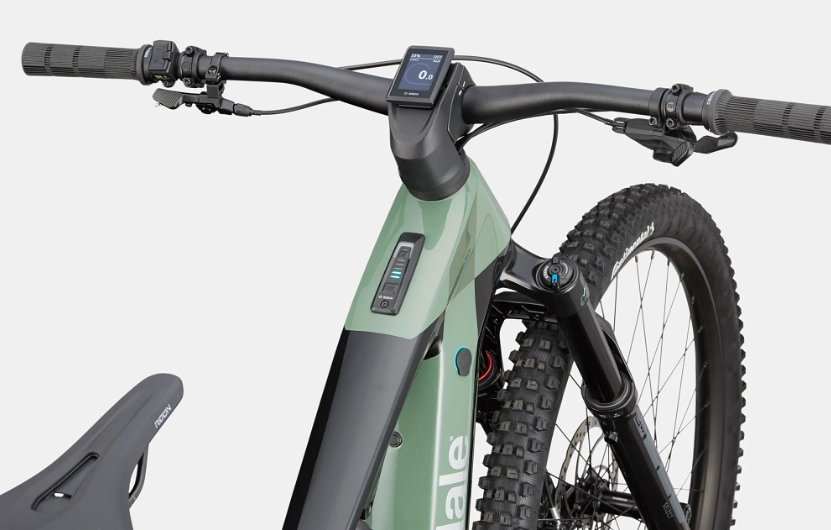

Display |
Top Tube System Controller w/ Bosch Kiox 300 & Mini Remote |
|
Range |
Up to 100 km (62 miles) |
