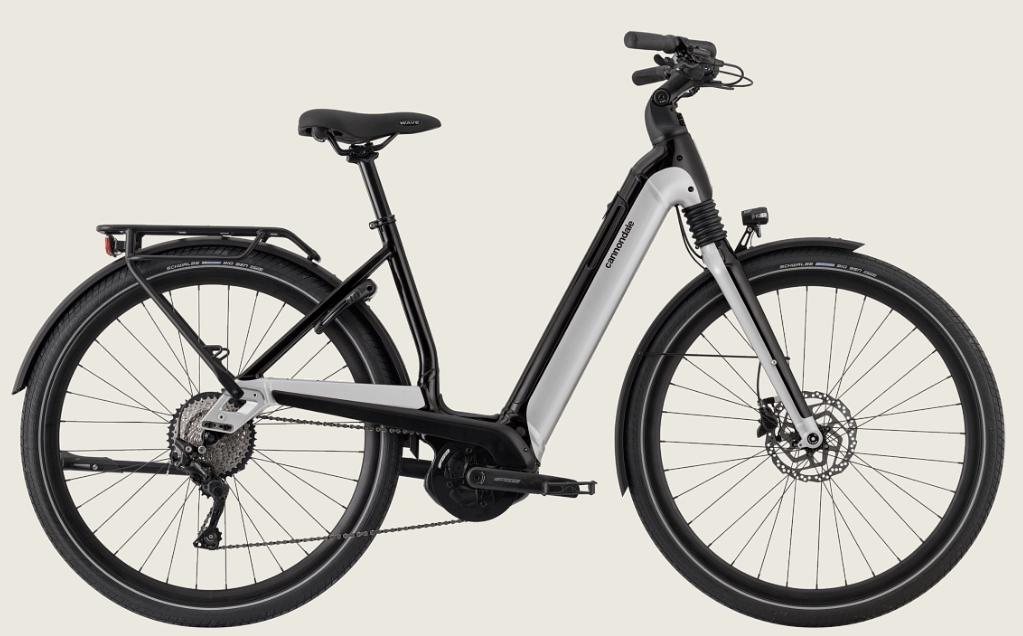

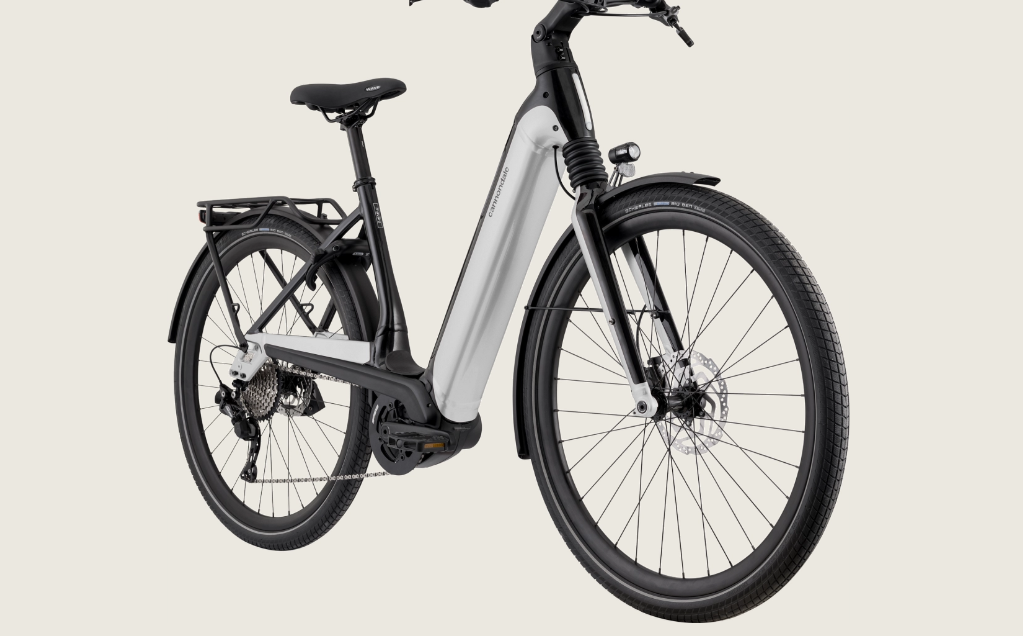

2025 Cannondale Mavaro 5 – Electric Urban Bike
Specifications
|
Specification |
Details |
|
Model |
Mavaro 5 |
|
Vehicle Category |
Electric Urban Bike |
|
Application |
Urban commuting and joyriding |
|
Starting Price (2025) |
$3,499.99 USD |
|
Color Options |
Cashmere |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Mavaro Si, SmartForm C1 Alloy step-thru frame, removable downtube battery, fully internal cable routing, 135x9mm sliding dropout, post mount disc, headtube waterbottle mounts, integrated daytime running light, HDT child seat/cargo mount compatible |
|
Fork |
HeadShok DL50, 50mm, Isolated Damper Technology, OPI, 15x100mm thru-axle |
|
Drivetrain Compatibility |
Shimano Deore 10-speed drivetrain |
|
Dropouts |
15x100mm thru-axle front, 135x9mm sliding dropout rear |
|
Bottom Bracket |
Bosch, press-fit |
|
Crankset |
FSA Bosch E-Bike, 38T |
|
Chain |
Shimano Deore, 10-speed |
|
Rear Derailleur |
Shimano Deore M6000 |
|
Shifter |
Shimano Deore M6000, 10-speed |
|
Cassette |
Shimano HG500, 11-42, 10-speed |
Components & Features
|
Specification |
Details |
|
Seating |
1 rider (Selle Royal Wave) |
|
Fuel Type |
Electric (Bosch PowerTube, 500Wh) |
|
Cargo Capacity |
Not specified (Atran Velo-compatible rear rack, HDT child seat/cargo mount compatible) |
|
Wheels/Tyres |
Schwalbe Big Ben, 28x2.00" (50-622), K-Guard puncture protection, reflective sidewalls |
|
Wheel Size |
700c |
|
Brakes |
TRP Slate G4, 4-piston hydraulic disc, 180/160mm rotors |
|
Brake Levers |
TRP hydraulic disc |
|
Handlebar |
Cannondale Low-Rise Urban, butted 6061 Alloy, 31.8mm, 25mm rise, 35° sweep, 680mm |
|
Stem |
Cannondale 1 Adjustable Si Stem w/ Integrated Cable Routing and SP-connect Mount |
|
Headset |
Cannondale HeadShok |
|
Saddle |
Selle Royal Wave |
|
Seatpost |
Cannondale 4, 6061 Alloy, 31.6, 300mm (SM), 350mm (MD), 400mm (LG) |
|
Seatpost Clamp |
Integrated |
|
Grips |
Cannondale Ergo Performance, Lock-On |
|
Front Hub |
Shimano MT400, 15x100mm thru-axle |
|
Rear Hub |
Shimano FH-TX505 |
|
Rims |
Cannondale 2, double wall |
|
Spokes |
DT Swiss Champion |
|
Pedals |
Cannondale Fitness |
|
Interior Features |
Fully internal cable routing, integrated daytime running light |
|
Exterior Features |
Axa Compactline 35E front light, Axa Blueline rear light, Atran Velo-compatible rear rack, Wingee fenders, ABUS Pro Shield frame lock, headtube waterbottle mounts, HDT child seat/cargo mount compatible |
|
Drive Unit |
Bosch Active Line Plus, 250W, 50Nm, 25 km/h max assist |
|
Battery |
Bosch PowerTube, 500Wh |
|
Charger |
Bosch 2A |
|
Display |
Bosch Purion |
|
Range |
Up to 149 km |
