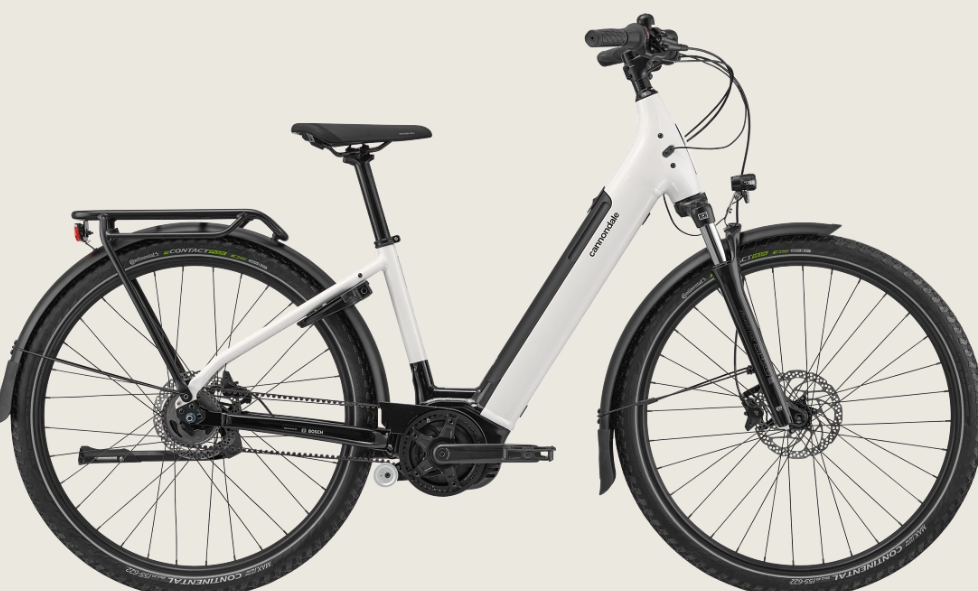

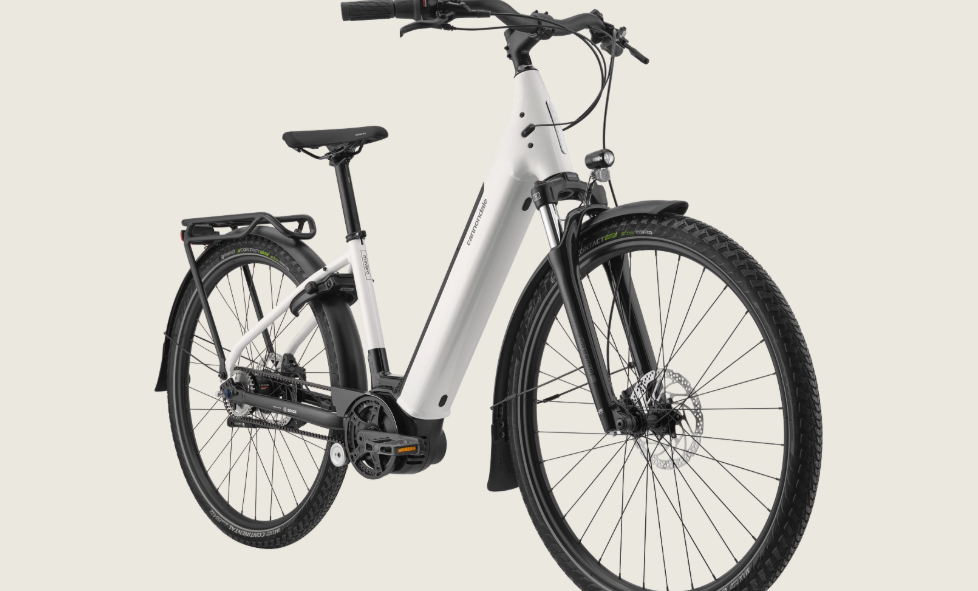

2025 Cannondale Mavaro 4 Low StepThru – Electric Bicycle
Specifications
|
Specification |
Details |
|
Model |
Mavaro 4 Low StepThru |
|
Vehicle Category |
Electric Bicycle |
|
Application |
Urban commuting, errands, joyriding |
|
Starting Price (2025) |
$3,499.00 USD |
|
Color Options |
Cashmere |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
SmartForm C2 Alloy, low step-thru, removable 500Wh downtube battery, integrated headtube reflector, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection |
|
Fork |
SR Suntour Mobie A32, 63mm travel, coil with preload adjuster, lockout, crown light mount, 44mm offset |
|
Drivetrain Compatibility |
Shimano Nexus 5, internal gear hub |
|
Dropouts |
135mm QR hub spacing (rear) |
|
Bottom Bracket |
Bosch, press-fit |
|
Crank |
FSA for Bosch |
|
Chain |
Gates CDX Carbon Belt |
|
Rear Derailleur |
Shimano Nexus 5, internal gear hub |
|
Shifters |
Shimano Nexus, 5-speed, twist style |
|
Cassette |
Gates CDC 26T |
Components & Features
|
Specification |
Details |
|
Seating |
1 passenger (Fizik Essenza Moderate M) |
|
Cargo Capacity |
25 kg (Tubus rear rack) |
|
Wheels/Tyres |
Continental eContact Plus w/ reflective sidewalls, 27.5x2.20" 55-584 (SM), 29x2.20" 55-622 (MD-LG) |
|
Wheel Size |
27.5" (SM), 29" (MD, LG) |
|
Brakes |
Shimano MT400 hydraulic disc, 180/180mm RT30 rotors |
|
Brake Levers |
Shimano MT400 hydraulic disc |
|

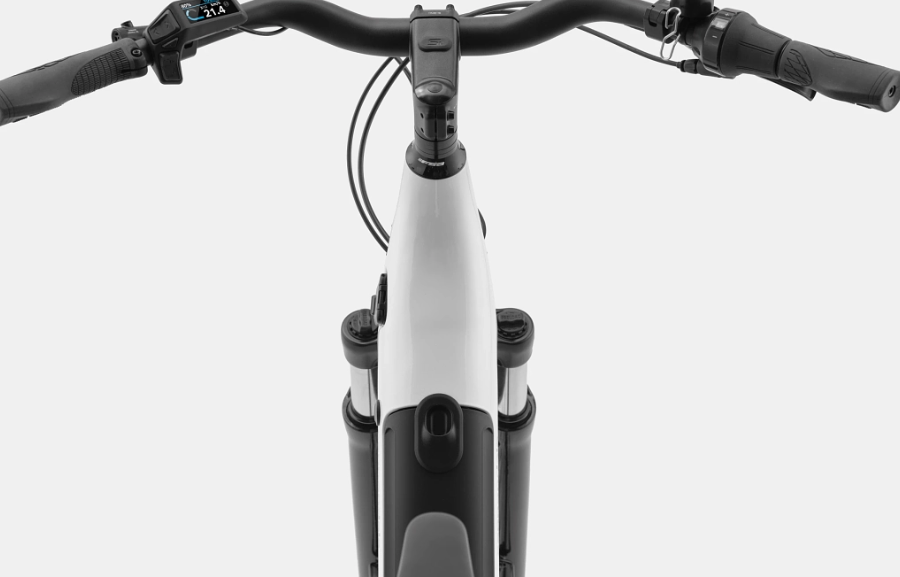

Handlebar |
Cannondale Low-Rise Urban, butted 6061 Alloy, 31.8mm, 25mm rise, 35° sweep, 680mm |
|
Stem |
Cannondale 3, Alloy, 31.8mm clamp |
|
Headset |
Semi-Integrated, Tapered; 1-1/8"-1-1/2" |
|
Saddle |
Fizik Essenza Moderate M |
|
Seatpost |
Cannondale 3, 6061 Alloy, 31.6 |
|
Seatpost Clamp |
Integrated |
|
Grips |
Cannondale Ergo Fitness Dual Density, Lock-on |
|
Front Hub |
Shimano MT400B, 110x15mm thru-axle |
|

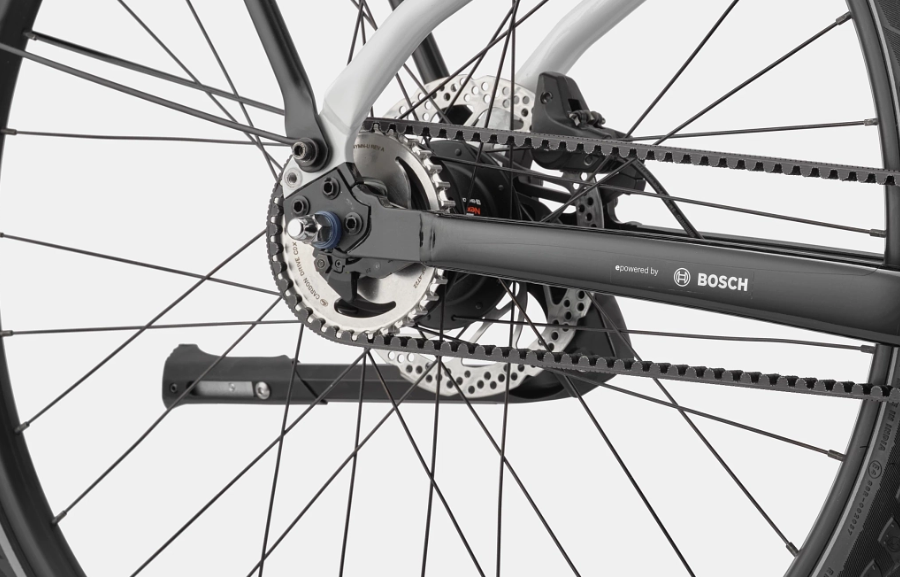

Rear Hub |
Shimano Nexus 5, 5-speed internal gear hub |
|
Rims |
Alloy, double wall, 32 hole, 25mm internal width, disc-specific |
|
Spokes |
Stainless Steel, 14g |
|
Pedals |
Cannondale Fitness |
|
Exterior Features |
Axa Compactline 35E front light, Axa Blueline rear light, Abus framelock (key-matched with battery lock), Tubus rear rack (25kg, Racktime compatible), full-coverage fenders |
|

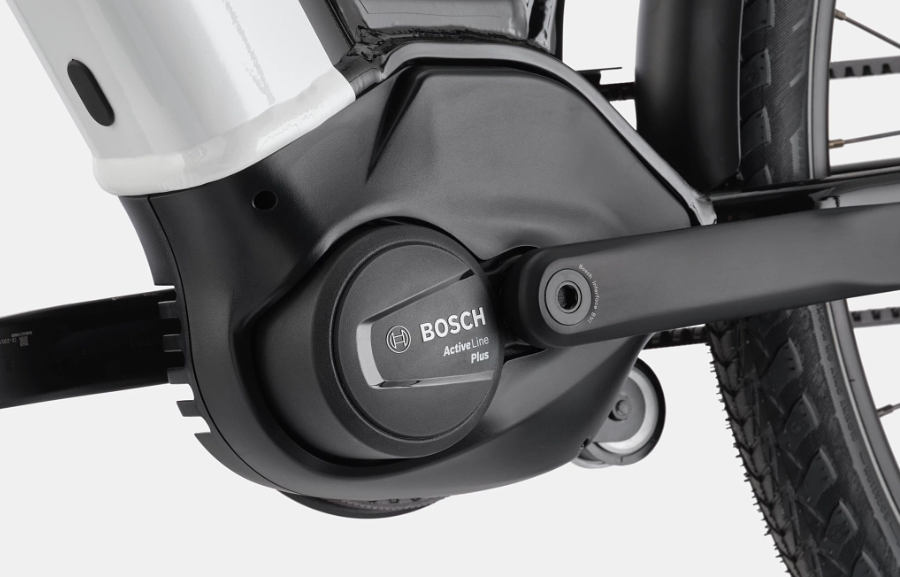

Drive Unit |
Bosch Active Line Plus, Smart System, 25 km/h, 50Nm |
|
Battery |
Bosch PowerTube, 500Wh |
|
Charger |
Bosch 2A |
|
Display |
Bosch Purion 200 |
|
Range |
Up to 110 km |
