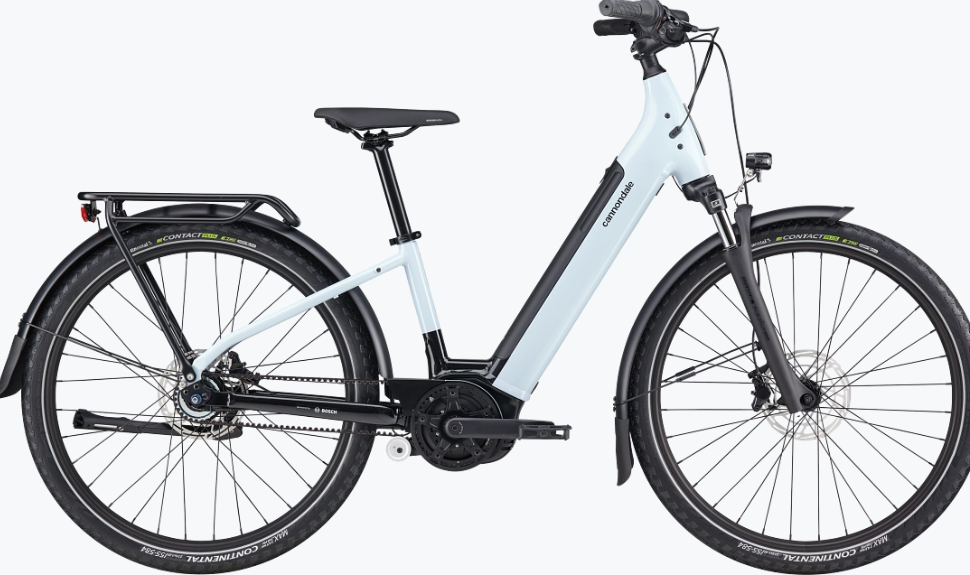

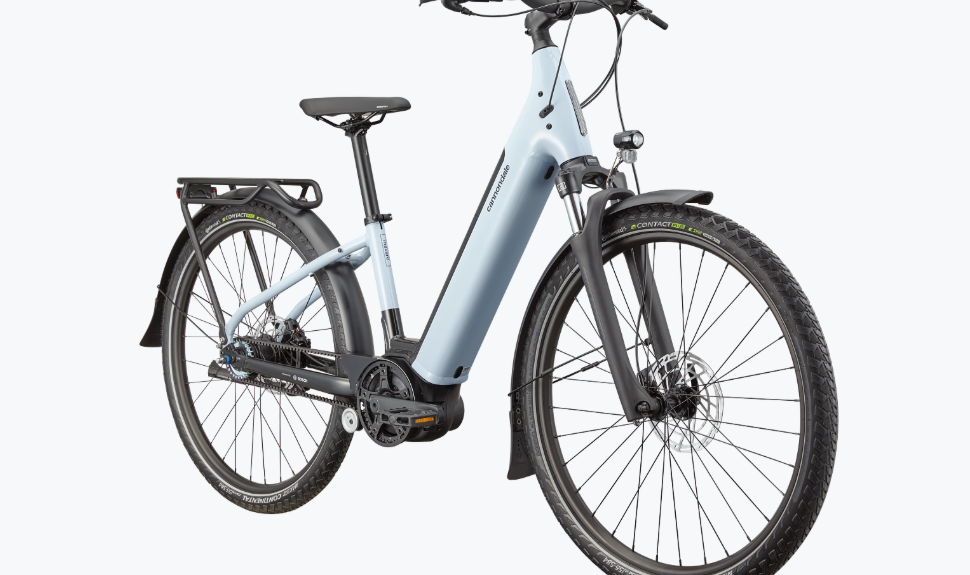

2025 Cannondale Mavaro 3 Low Step-Thru – Electric Urban Bike
Specifications
|
Specification |
Details |
|
Model |
Mavaro 3 Low Step-Thru |
|
Vehicle Category |
Electric Urban Bike |
|
Application |
Urban commuting and joyriding |
|
Starting Price (2025) |
$2,999.00 USD |
|
Color Options |
Dust Blue |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
SmartForm C2 Alloy, low step-thru, removable 500Wh downtube battery, integrated headtube reflector, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection |
|
Fork |
SR Suntour Mobie A32, 63mm travel, coil with preload adjuster, lockout, crown light mount, 44mm offset |
|
Drivetrain Compatibility |
Shimano Nexus 7-speed internal gear hub, Gates CDX Carbon belt drive |
|
Dropouts |
110x15mm thru-axle front, 135mm QR rear |
|
Bottom Bracket |
Bosch, press-fit |
|
Crankset |
FSA for Bosch |
|
Chain |
Gates CDX Carbon Belt |
|
Rear Derailleur |
Shimano Nexus 7, internal gear hub |
|
Shifter |
Shimano Nexus, 7-speed, twist style |
|
Cassette |
Gates CDC, 26T |
Components & Features
|
Specification |
Details |
|
Seating |
1 rider (Fizik Essenza Moderate M) |
|
Cargo Capacity |
25 kg (Tubus rear rack, Racktime compatible) |
|
Wheels/Tyres |
Continental eContact Plus w/ reflective sidewalls, 27.5x2.20" (SM), 29x2.20" (MD, LG) |
|
Wheel Size |
27.5" (SM), 29" (MD, LG) |
|
Brakes |
Riderever Attack-U-OE, 2-piston hydraulic disc, 180/180mm rotors |
|
Brake Levers |
Riderever Attack-U-OE, hydraulic disc |
|
Handlebar |
Cannondale Low-Rise Urban, butted 6061 Alloy, 31.8mm, 25mm rise, 35° sweep, 680mm |
|
Stem |
Cannondale 3, Alloy, 31.8mm clamp |
|
Headset |
Semi-Integrated, Tapered; 1-1/8"-1-1/2" |
|
Saddle |
Fizik Essenza Moderate M |
|
Seatpost |
Cannondale 3, 6061 Alloy, 31.6 |
|
Seatpost Clamp |
Integrated |
|
Grips |
Cannondale Ergo Fitness Dual Density, Lock-on |
|
Front Hub |
Shimano MT400B, 110x15mm thru-axle |
|
Rear Hub |
Shimano Nexus 7, 7-speed internal gear hub |
|
Rims |
Alloy, double wall, 32 hole, 25mm internal width, disc-specific |
|
Spokes |
Stainless Steel, 14g |
|
Pedals |
Cannondale Fitness |
|
Interior Features |
Internal cable routing |
|
Exterior Features |
Axa Compactline 35E front light, Axa Blueline rear light, Tubus rear rack (25kg, Racktime compatible), full-coverage fenders, integrated headtube reflector |
|
Drive Unit |

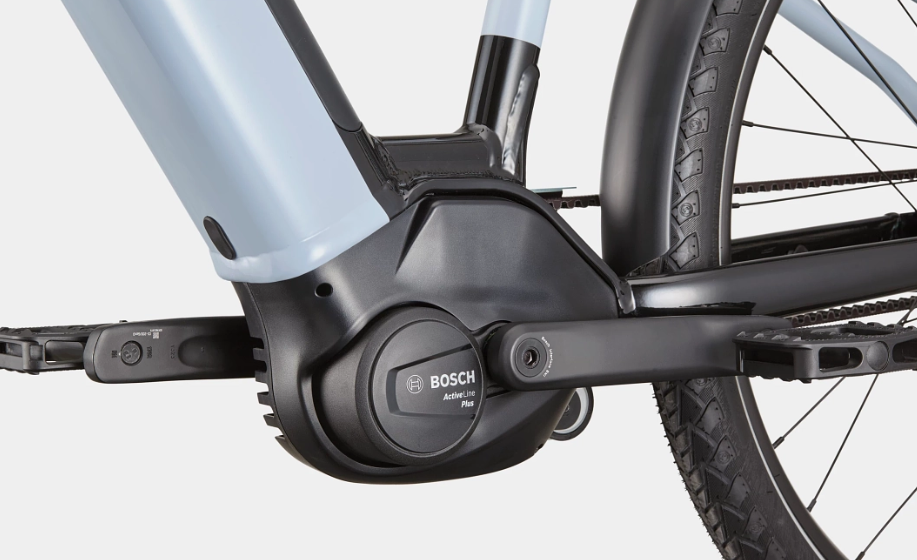

Bosch Active Line Plus, Smart System, 250W, 50Nm, 20 mph max assist |
|
Battery |
Bosch PowerTube, 500Wh |
|
Charger |
Bosch 4A |
|
Display |
Bosch Purion 200 |
|
Range |
Up to 70 miles (113 km) |
|
Certifications |
UL 2849 |
