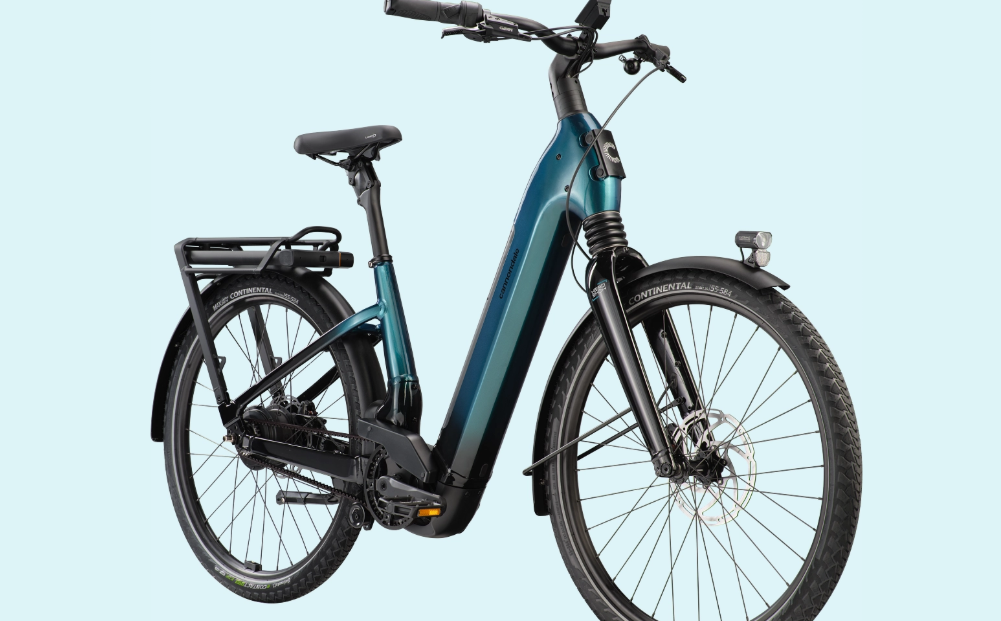

2025 Cannondale Mavaro 1 Low StepThru – Electric Bicycle
Specifications
|
Specification |
Details |
|
Model |
Mavaro 1 Low StepThru |
|
Vehicle Category |
Electric Bicycle |
|
Application |
Urban commuting, joyriding |
|
Starting Price (2025) |
$5,584.04 USD |
|
Color Options |
Deep Teal |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Mavaro, low step-thru, SmartForm C1 Alloy, removable 800Wh downtube battery, tapered headtube, internal cable routing, 135mm QR hub spacing, post mount disc brake, motor protection, integrated RackLock rack and fender - RackTime SnapIt 2.0 and child seat compatible |
|
Fork |
Cannondale HeadShok, 50mm travel, Quad Cage needle bearing internals, coil spring, twin chamber semi open-bath oil damping, post mount disc, 110x15mm thru-axle |
|
Drivetrain Compatibility |
Enviolo Continuously Variable Transmission internal gear hub |
|
Dropouts |
135mm QR hub spacing (rear) |
|
Bottom Bracket |
Bosch, press-fit |
|
Crank |
Gates Bosch E-bike, w/ 40T sprocket |
|
Chain |
Gates CDX high performance carbon drive belt |
|
Rear Derailleur |
Enviolo Continuously Variable Transmission internal gear hub |
|
Shifters |
Enviolo Trekking stepless controller, twist style |
|
Cassette |
Gates CDX, 22T |
Components & Features
|
Specification |
Details |
|
Seating |
1 passenger (Selle Royal Essenza) |
|
Cargo Capacity |
27 kg (RackLock rear rack) |
|
Wheels/Tyres |
Continental eContact Plus w/ reflective sidewalls, 27.5x2.20" 55-584 (SM, MD), 29x2.20" 55-622 (LG, XL) |
|
Wheel Size |
27.5" (SM, MD), 29" (LG, XL) |
|
Brakes |
Tektro HD-M530 Gemini, 4-piston hydraulic disc, 203mm TR rotor (Front), 2-piston hydraulic disc, 180mm TR rotor (Rear) |
|
Brake Levers |
Tektro HD-M530 Gemini hydraulic disc |
|
Handlebar |
Cannondale Urban Ergo Bar, 6061 Alloy, 25mm rise, 35° sweep, 0° rise, 680mm |
|
Stem |
Cannondale Urban w/ Intellimount, Alloy, 31.8mm clamp, 60mm, +30°, Acros ICR, w/ SP Connect SPC+ Stem Mount & Kiox mount |
|
Headset |
Acros, integrated cable routing, sealed bearing, tapered |
|
Saddle |
Selle Royal Essenza |
|
Seatpost |
Parallelogram Suspension Seatpost, 31.6, 27mm travel, 300mm (SM), 350mm (MD), 400mm (LG, XL) |
|
Seatpost Clamp |
Integrated |
|
Grips |
Ergon GC10 |
|
Front Hub |
Shimano TC500, 110x15mm thru-axle, centerlock |
|

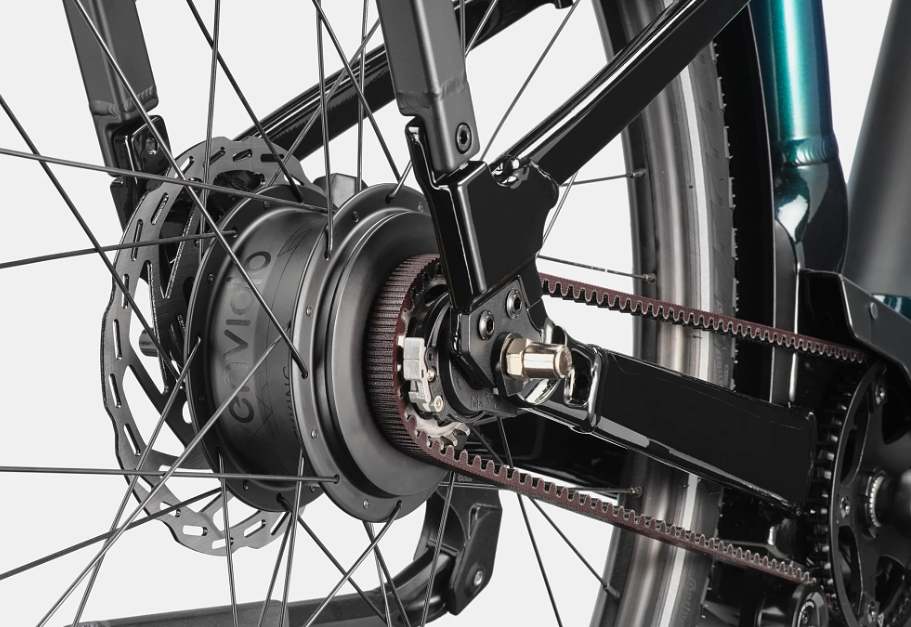

Rear Hub |
Enviolo Trekking, continuously variable transmission, wide range internal hub |
|
Rims |
Alloy, double wall, 32h, 25mm internal width, disc-specific |
|
Spokes |
DT Swiss, Stainless Steel, 14g |
|
Pedals |
Cannondale Fitness |
|
Interior Features |
Bosch Connect Module (BCM) compatibility |
|
Exterior Features |
RackLock rear rack (27kg, Racktime SnapIt 2.0 & child seat compatible) with integrated Trelock U-Lock (key-matched with battery lock), Lezyne Foresite E350 front light, SuperNova TL3-Z rear light with integrated reflector, full-coverage fenders |
|

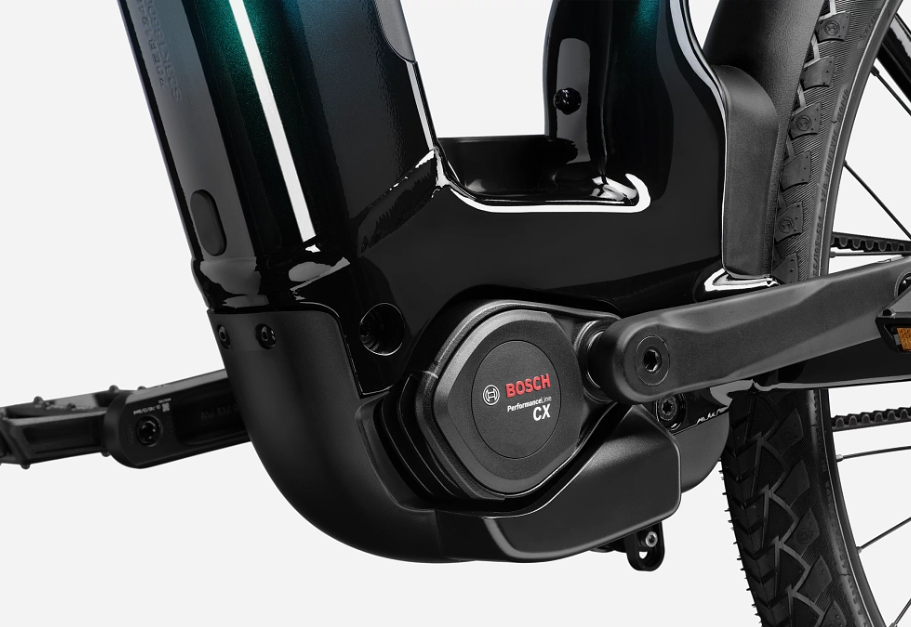

Drive Unit |
Bosch Performance Line CX 250W 2025, 85Nm |
|
Battery |
Bosch PowerTube, 800Wh |
|
Charger |
Bosch 4A |
|

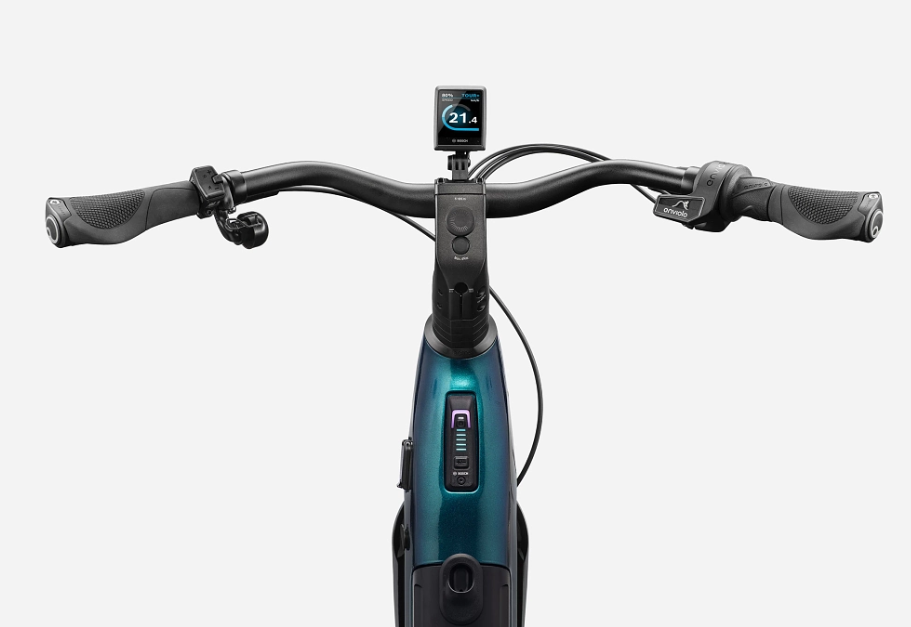

Display |
Bosch Kiox 300 w/ Mini Remote & System Controller |
|
Range |
Up to 185 km |
