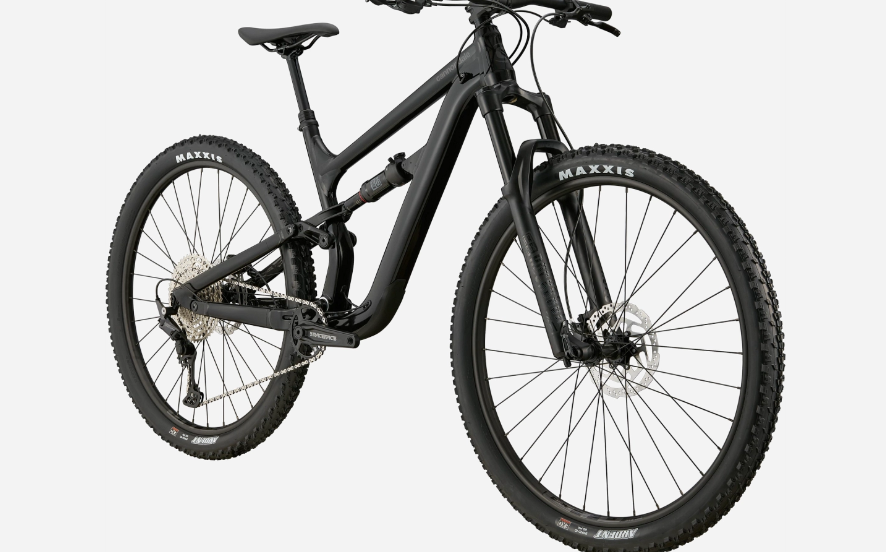

2025 Cannondale Habit 5 – Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Habit 5 |
|
Vehicle Category |
Mountain Bike |
|
Application |
Trail riding |
|
Starting Price (2025) |
$2,200.00 USD |
|
Color Options |
Black |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
130mm travel, SmartForm C1 Alloy, Proportional Response Tuned, Ai offset drivetrain, ISCG05, BSA 83, post mount brake, tapered headtube |
|
Fork |
RockShox 35 Silver R, 140mm, Coil, 15x110mm thru-axle, tapered steerer, 51mm offset |
|
Rear Shock |
RockShox Deluxe Select, DebonAir, adjustable rebound |
|
Drivetrain Compatibility |
1x11 speed |
|
Dropouts |
12mm thru axle (front 15x110mm, rear 12x148mm) |
|
Bottom Bracket |
Race Face BSA |
|

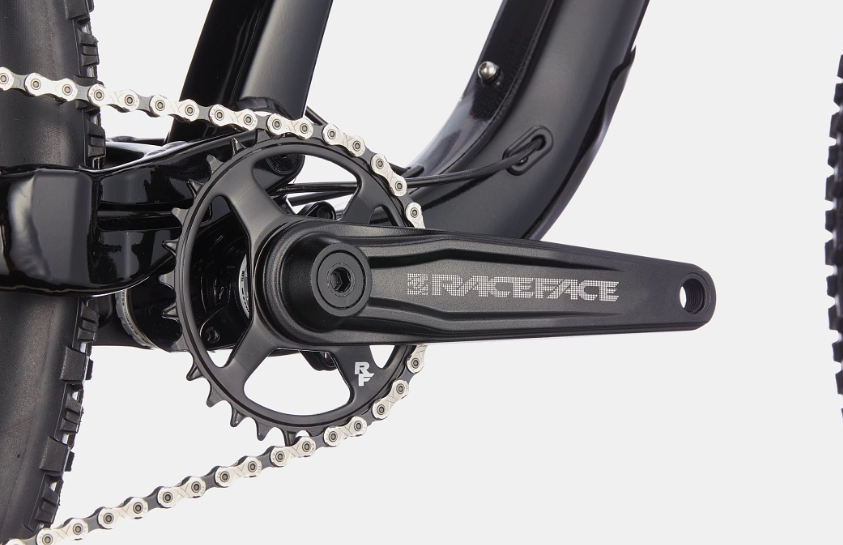

Crankset |
RaceFace Ride Cinch, 30T |
|
Chain |
KMC X11, 11-speed |
|

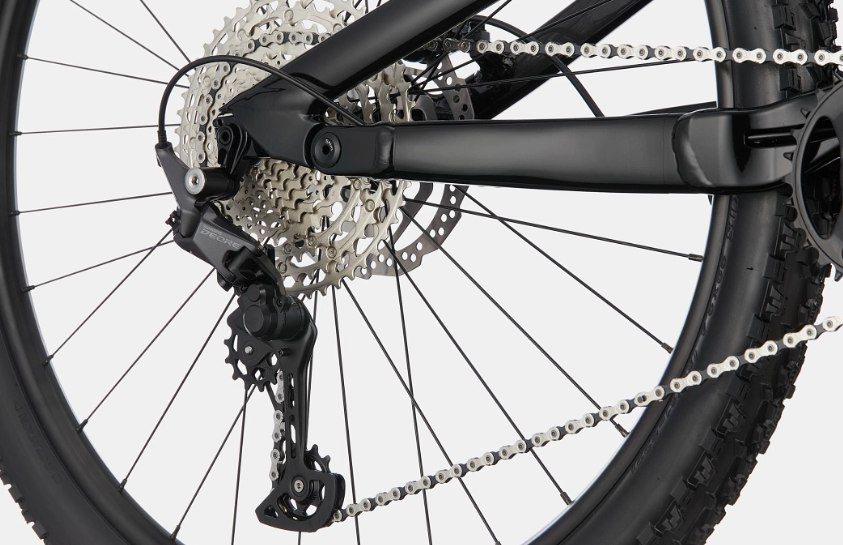

Rear Derailleur |
Shimano Deore M5100 |
|
Shifter |
Shimano Deore M5100, 11-speed |
|
Cassette |
Shimano Deore M5100, 11-51, 11-speed |
Components & Features
|
Specification |
Details |
|
Seating |
1 passenger (Cannondale Ergo XC) |
|
Fuel Type |
Human-powered |
|
Wheels/Tyres |
Maxxis Ardent, 29x2.4", EXO casing |
|
Wheel Size |
29" in |
|
Brakes |
Tektro M275 hydraulic disc, 180/180mm rotors |
|
Brake Levers |
Tektro hydraulic disc |
|

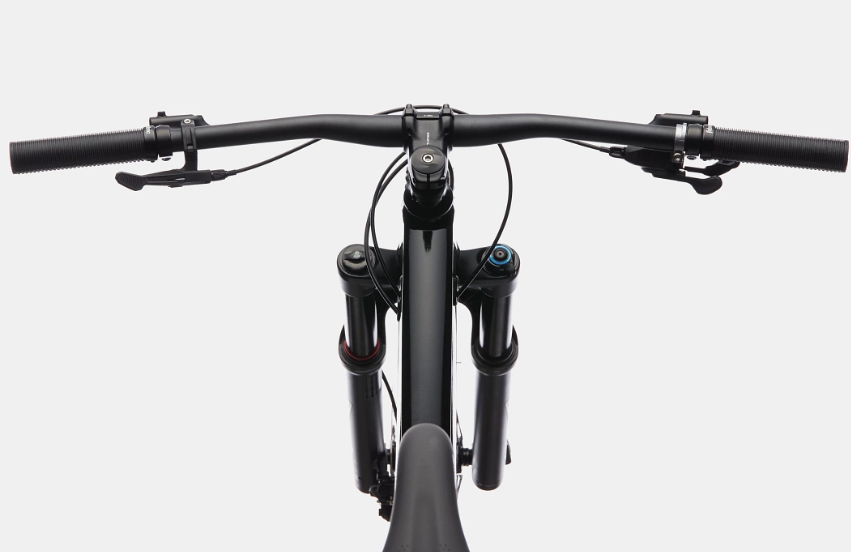

Handlebar |
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm |
|
Stem |
Cannondale 3, 6061 Alloy, 31.8, 0° |
|
Headset |
Integrated, 1-1/8 to 1.5", sealed angular contact bearings |
|
Saddle |
Cannondale Ergo XC |
|
Seatpost |
TranzX Dropper, 31.6, Internal Routing, 100mm (S), 120mm (M-XL) |
|
Seatpost Clamp |
Alloy, 34.9mm |
|
Grips |
Fabric FunGuy |
|
Front Hub |
Shimano MT400, 15x110mm thru-axle |
|
Rear Hub |
Shimano MT400, 12x148mm thru-axle |
|
Rims |
WTB STX i23 TCS, 32h, tubeless ready |
|
Spokes |
Stainless Steel, 14g |
|
Interior Features |
Proportional Response Tuned, Ai offset drivetrain, ISCG05 |
|
Weight |
14.8 kg (32.6 lb, MD, estimated) |
