2025 Cannondale Habit 3 – Mountain Bike

Images:

Specifications

Specification	Details
Frame	Habit SmartForm C1 Alloy, 130mm travel, Proportional Response Suspension and Geo, 55mm chainline, ISCG05, BSA threaded BB, post mount brake, tapered headtube, DirectLine internal cable routing, UDH hanger
Fork	RockShox Pike, 140mm, DebonAir, 15x110mm thru-axle, tapered steerer, 42mm offset
Rear Shock	RockShox Deluxe Select+, DebonAir, 2-Pos mode adjust, adjustable rebound
Drivetrain Compatibility	1x12 speed
Dropouts	12mm thru axle (front 15x110mm, rear 12x148mm)
Bottom Bracket	SRAM DUB BSA MTB73 Wide
Crankset	SRAM NX Eagle DUB, 30T, 55mm chainline
Chain	SRAM SX Eagle, 12-speed
Rear Derailleur	SRAM NX Eagle
Shifter	SRAM NX Eagle, 12-speed
Cassette	SRAM NX Eagle, 10-50, 12-speed

Specification	Details
Seating	1 passenger (Cannondale Scoop Shallow Sport, steel rails)
Fuel Type	Human-powered
Wheels/Tyres	(F) Maxxis Dissector, 29x2.4" (27.5x2.4" - XS), EXO, tubeless ready, (R) Maxxis Rekon, 29x2.4" (27.5x2.4" - XS), EXO, tubeless ready
Wheel Size	29" (27.5" - XS)
Brakes	SRAM G2 R hydraulic disc, 180/180mm CenterLine rotors, 6-bolt
Brake Levers	SRAM G2 R hydraulic disc
Handlebar	Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
Stem	Cannondale 3, 6061 Alloy, 31.8, 0°
Headset	Integrated Sealed Bearing, Tapered
Saddle	Cannondale Scoop Shallow Sport, steel rails
Seatpost	TranzX dropper, internal routing, 31.6, 130mm (XS-S), 150mm (M-XL)
Seatpost Clamp	Alloy, 34.9mm
Grips	Cannondale TrailShroom
Front Hub	Formula, 15x110mm thru-axle
Rear Hub	Formula, 12x148mm thru-axle
Rims	Stan's NoTubes Arch D, 32h, tubeless ready
Spokes	Stainless Steel, 14g
Interior Features	Proportional Response Suspension and Geo, DirectLine internal cable routing, ISCG05, UDH hanger
Weight	14.5 kg (32.0 lb, MD, estimated)

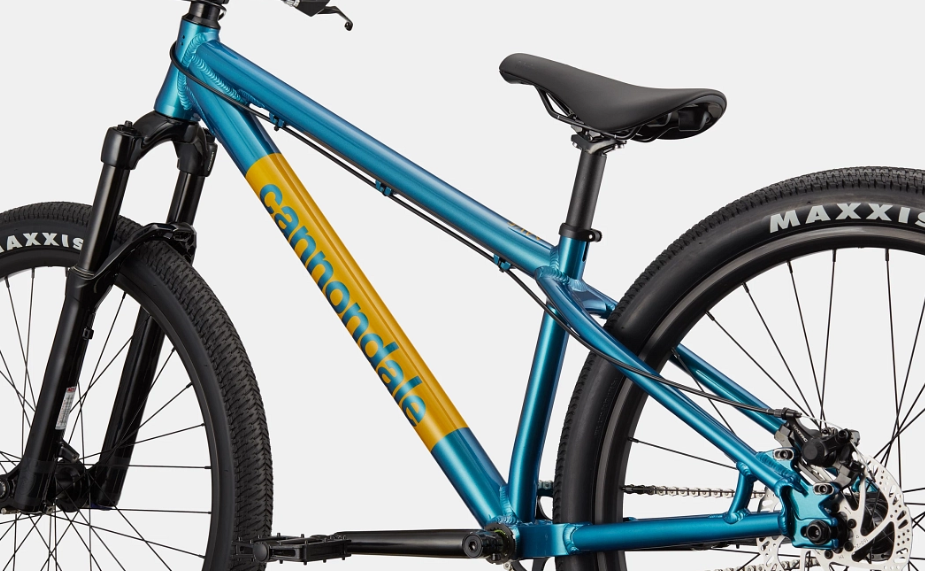

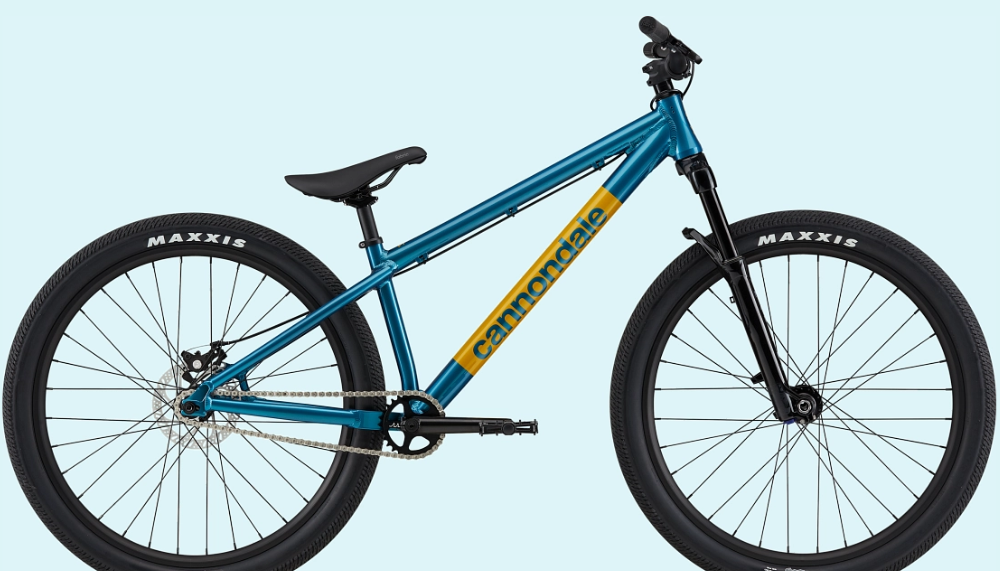

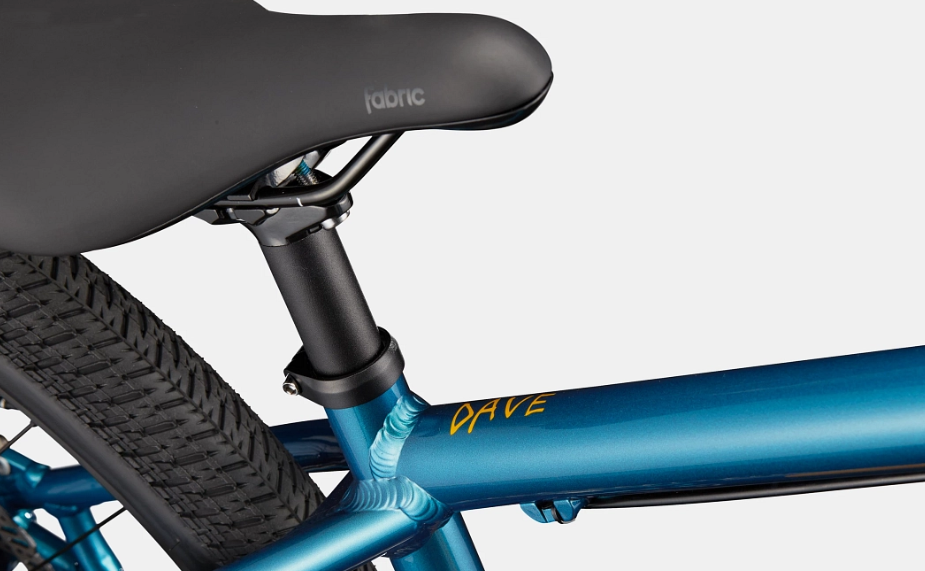

* All the images are screenshots!
* Data has been taken from official website (Publicly Available)!
