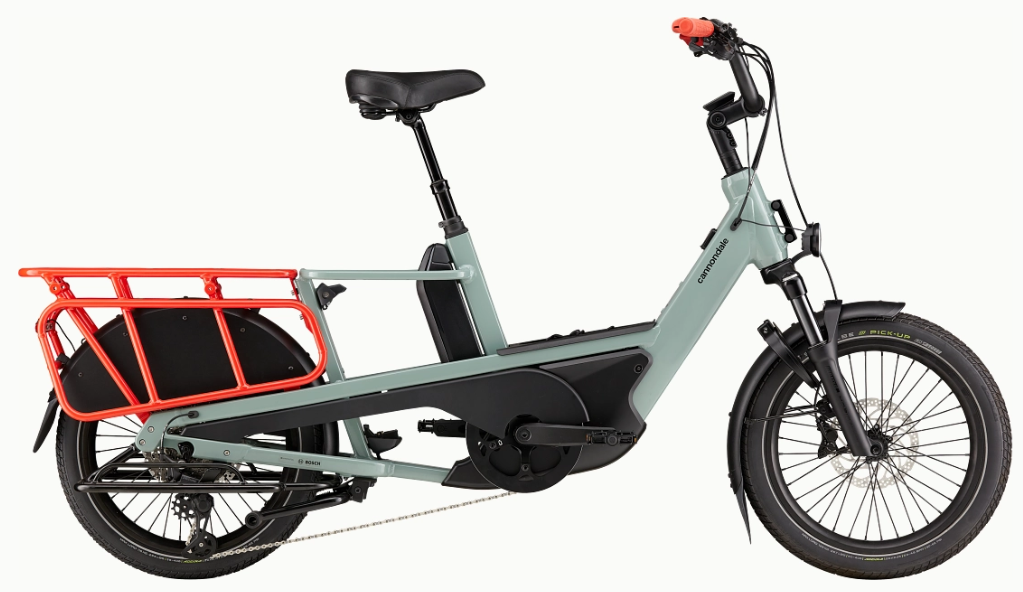

2025 Cannondale Cargowagen Neo – Electric Cargo Bike
Specifications
|
Specification |
Details |
|
Model |
Cargowagen Neo |
|
Vehicle Category |
Electric Cargo Bike |
|
Application |
Cargo transport, urban commuting, family transport |
|
Starting Price (2025) |
$4,400.00 USD |
|
Color Options |
Sage |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
SmartForm C2 Alloy step-thru frame, integrated rear cargo rack (80kg), integrated headtube rack mounts, dual battery ready, internal cable routing, disc brake, tapered headtube, center console storage |
|
Fork |
SR Suntour Mobie 34 Cargo, BOOST DS, tapered, 80mm travel |
|
Drivetrain Compatibility |
1x10 speed |
|
Dropouts |
Thru-axle (front 15x110mm, rear 12x148mm) |
|
Bottom Bracket |
Bosch, integrated |
|
Crankset |
Samox, 52T |
|
Chain |
KMC EGlide |
|
Rear Derailleur |
Shimano Deore 5130, 10-speed |
|
Shifter |
Shimano Deore, 10-speed |
|
Cassette |
Shimano CUES CS-LG300, 11-41, 10-speed |
E-System
|
Specification |
Details |
|
Drive Unit |
Bosch Cargo Line, 32 km/h |
|
Battery |
Bosch PowerPack, 545Wh |
|
Charger |
Bosch 4A |
|
Display |
Bosch Kiox 300 w/LED remote |
|
Range |
Up to 80 km (estimated, depending on load and conditions) |
Components & Features
|
Specification |
Details |
|
Seating |
1 passenger (Cannondale Comfort saddle), optional 2 child seats |
|
Fuel Type |
Electric (Bosch Cargo Line motor) with pedal assist |
|
Cargo Capacity |
200 kg (80 kg rear rack, optional front rack, trailer mount) |
|
Wheels/Tyres |
Schwalbe Pick-Up, (F) 20x2.6" (65-406), (R) 20x2.15" (55-406), Schwalbe Air Plus high retention inner tubes |
|
Wheel Size |
20" in |
|
Brakes |
Tektro HD-T5040, 4-piston hydraulic disc, 203/180mm rotors |
|
Brake Levers |
Tektro HD-T5040, hydraulic disc |
|
Handlebar |
Cannondale Cruise Control Hi-Rise, 6061 Alloy, 31.8mm, 15° back, 740mm |
|
Stem |
Alloy, Adjustable angle, 31.8 |
|
Headset |
Acros Blocklock w/ steering stop, semi-integrated |
|
Saddle |
Cannondale Comfort |
|
Seatpost |
TranzX Suspension dropper post, 31.6, 70mm drop |
|
Seatpost Clamp |
Integrated, alloy, 31.6mm |
|
Grips |
Cannondale Ergo Lock-on |
|
Front Hub |
Formula, cartridge sealed bearings, 15x110mm, centerlock |
|
Rear Hub |
Formula, cartridge sealed bearings, 12x148mm, centerlock |
|
Rims |
Heavy Duty, Alloy, double wall, 36 hole, 35mm internal width, disc-specific |
|
Spokes |
DT Swiss Champion, 13g |
|
Pedals |
Cannondale Urban |
|
Interior Features |
Internal cable routing, center console storage, integrated rear cargo rack (80kg), integrated headtube rack mounts, dual battery ready, trailer mounting point |
|
Exterior Features |
Cannondale heavy-duty center stand, fenders, high visibility LED headlight, Lezyne Super Bright rear light, running boards, Abus ring lock, wheel covers, chain guard |
|
Weight |
75 lb (estimated) |
