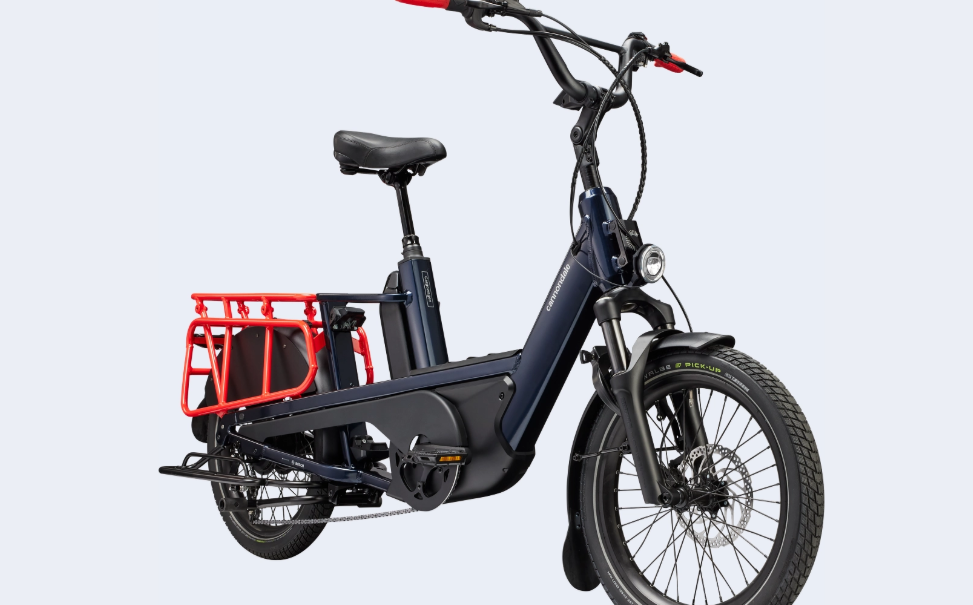

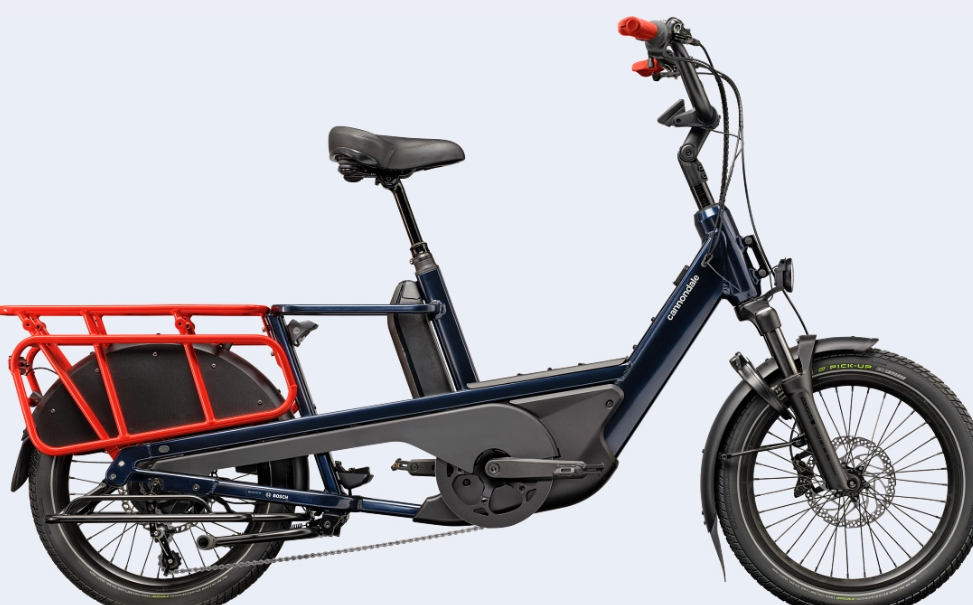

2025 Cannondale Cargowagen Neo 1 – E-Cargo Bike
Specifications
|
Specification |
Details |
|
Model |
Cargowagen Neo 1 |
|
Vehicle Category |
E-Cargo Bike |
|
Application |
City streets, bike lanes, around town |
|
Starting Price (2025) |
$4,999.00 USD |
|
Color Options |
Midnight Blue |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
SmartForm C2 Alloy step-thru frame, integrated rear cargo rack (80kg), integrated headtube rack mounts, dual battery ready, internal cable routing, disc brake, tapered headtube, center console storage |
|
Fork |
SR Suntour Mobie 34 Cargo, BOOST DS, tapered, 80mm travel |
|
Drivetrain Compatibility |
Enviolo Heavy Duty Continuously Variable Transmission |
|
Dropouts |
15x110mm front, Enviolo Heavy Duty rear |
|
Bottom Bracket |
Bosch, integrated with motor |
|
Crankset |
Samox, 52T |
|
Chain |
KMC E101, EPT |
|
Shifter |
Enviolo Pro stepless manual twist shifter |
|
Cassette |
KMC, 17T |
E-System
|
Specification |
Details |
|
Drive Unit |
Bosch Cargo Line, 25 km/h |
|
Battery |
Bosch PowerPack, 725Wh |
|
Charger |
Bosch 4A |
|
Display |
Bosch Kiox 300 w/ LED Remote |
|
Range |
Up to 80 km (50 mi), estimated |
Components & Features
|
Specification |
Details |
|
Seating |
1 rider (Cannondale Comfort), 2 kids optional on rear rack |
|
Fuel Type |
Electric (Bosch PowerPack, 725Wh) |
|
Cargo Capacity |
200 kg total (80 kg rear rack, optional front rack, trailer mount) |
|
Wheels/Tyres |
Schwalbe Pick-Up, 20x2.6" (65-406) |
|
Wheel Size |
20" |
|
Brakes |
Shimano MT420, 4-piston hydraulic disc, 203/180mm rotors |
|
Brake Levers |
Shimano MT401 hydraulic disc |
|
Handlebar |
Cannondale Cruise Control Hi-Rise, 6061 Alloy, 31.8mm, 15° back, 740mm |
|
Stem |
Alloy, Adjustable angle, 31.8 |
|
Headset |
Acros Blocklock w/ steering stop, semi-integrated |
|
Saddle |
Cannondale Comfort |
|
Seatpost |
TranzX Suspension dropper post, 31.6, 70mm drop |
|
Seatpost Clamp |
Alloy, integrated with frame |
|
Grips |
Cannondale Ergo Lock-on |
|
Front Hub |
Shimano HB-TC500-15-B, cartridge sealed bearings, 15x110mm, centerlock |
|
Rear Hub |
Enviolo Heavy-Duty Continuously Variable Transmission internal gear hub |
|
Rims |
Heavy Duty, Alloy, double wall, 36 hole, 35mm internal width, disc-specific |
|
Spokes |
DT Swiss Champion, 13g |
|
Pedals |
Cannondale Urban |
|
Interior Features |
Center console storage, dual battery ready, integrated cable routing, running boards, Schwalbe Air Plus high retention inner tubes |
|
Exterior Features |
Cannondale heavy-duty center stand, fenders, high visibility LED headlight, Lezyne Super Bright rear light, Abus ring lock, wheel covers, chain guard, trailer mounting point |
|
Weight |
45.5 kg (100.3 lb, estimated, without cargo) |
