Specification

Details

Model

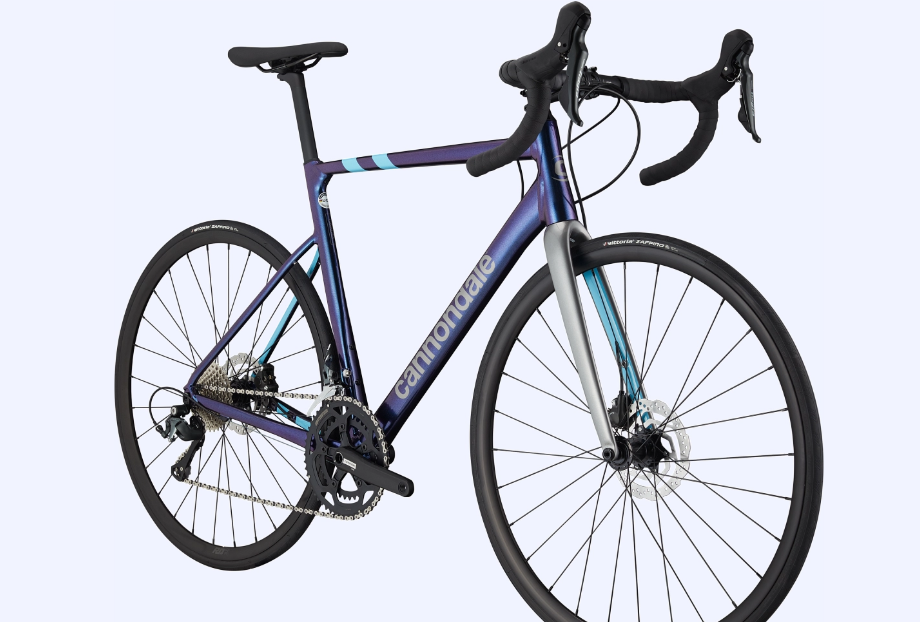

CAAD13 Disc Tiagra

Vehicle Category

Road Bike

Application

Competition, open road

Starting Price (2025)

$1,849.00 USD

Color Options

Purple Haze

Specification

Details

Frame

SmartForm C1 Premium Alloy, 12x142 Speed Release thru-axle, flat-mount disc, integrated cable routing w/ Switchplate, SAVE, BB30a, Di2 ready

Fork

CAAD13 Full Carbon, SAVE, 1-1/8" to 1-1/4" steerer, integrated crown race, 12x100mm Speed Release thru-axle, flat mount disc, internal routing, 55mm offset (47-54cm) 45mm offset (56-62cm)

Drivetrain Compatibility

2x10 speed

Dropouts

Speed Release thru-axle (front 12x100mm, rear 12x142mm)

Bottom Bracket

Cannondale BB30

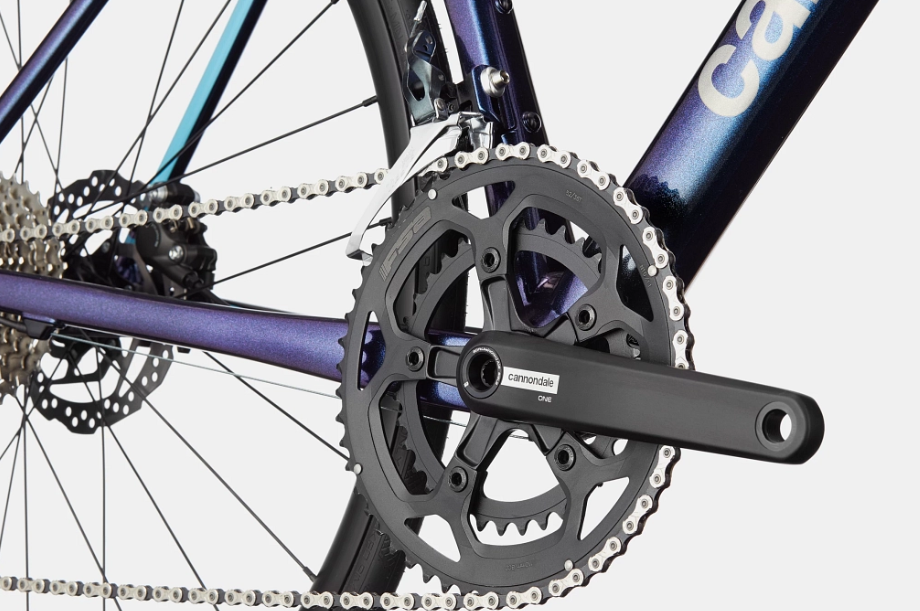

Crankset

Cannondale 1, BB30a, FSA rings, 50/34T

Chain

KMC X10, 10-speed

Front Derailleur

Shimano Tiagra, braze-on

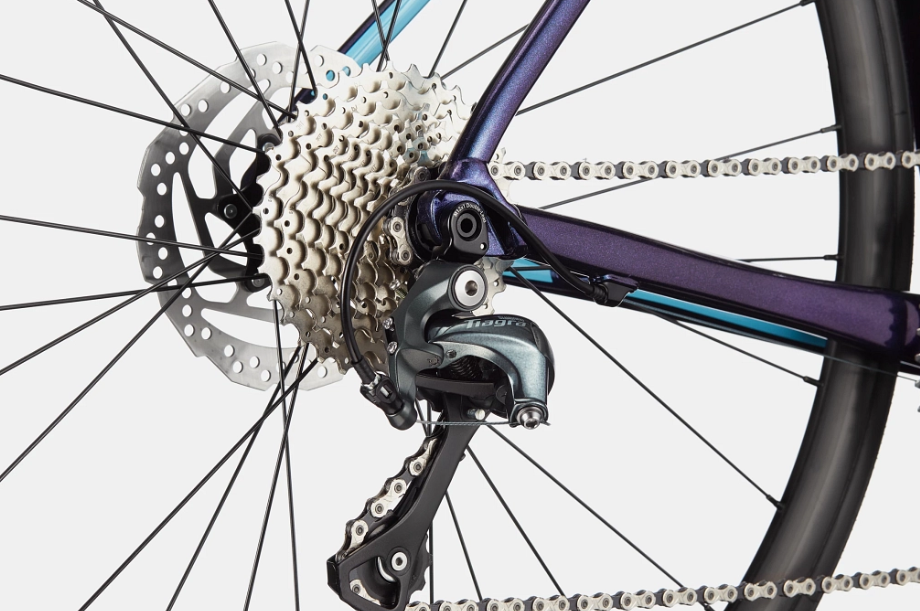

Rear Derailleur

Shimano Tiagra GS

Shifter

Shimano Tiagra hydraulic disc, 10-speed

Cassette

Shimano Tiagra, 11-34T, 10-speed

Specification

Details

Seating

1 passenger (Prologo Nago RS STN)

Fuel Type

Human-powered

Cargo Capacity

Removable fender bridge

Wheels/Tyres

Vittoria Zaffiro Pro Slick, 700x25c

Wheel Size

700c

Brakes

Shimano Tiagra hydraulic disc, 160/160mm RT54 rotors

Brake Levers

Shimano Tiagra hydraulic disc

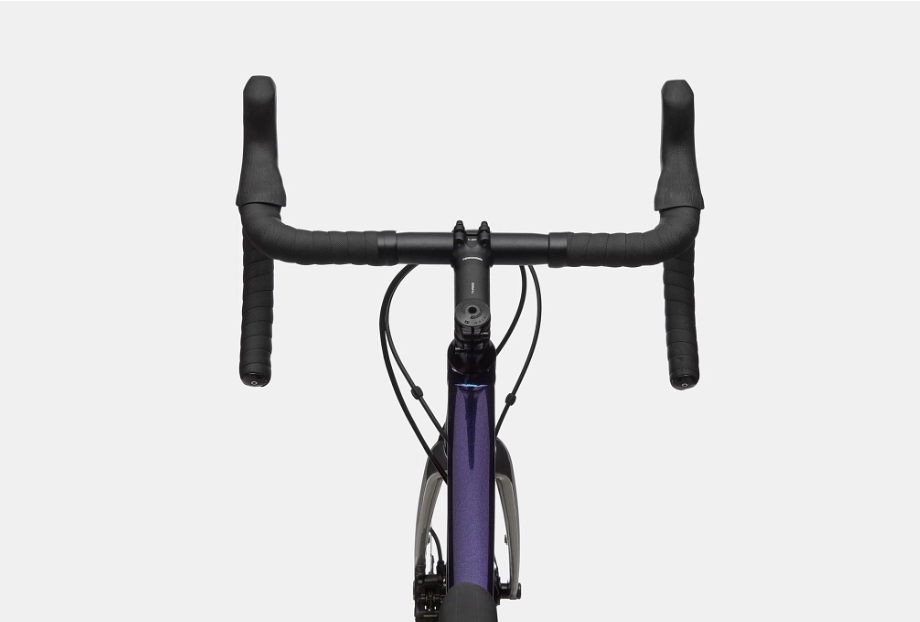

Handlebar

Cannondale 4, 6061 Alloy, Compact

Stem

Cannondale 4, 6061 Alloy, 31.8, 7°

Headset

CAAD13, integrated, 1-1/8" - 1-1/4"

Saddle

Prologo Nago RS STN

Seatpost

HollowGram 27 KNØT, Alloy, 2 bolt clamp, 330mm

Seatpost Clamp

Alloy, integrated with frame

Grips

Cannondale Bar Tape, 3.5mm

Front Hub

Formula CL-712, 12x100mm centerlock

Rear Hub

Formula RXC-400, 12x142mm centerlock

Rims

RD 2.0, 28h

Spokes

Stainless Steel, 14g

Pedals

Wellgo w/ Clip and Strap

Interior Features

Removable fender bridge, SAVE micro-suspension, integrated cable routing w/ Switchplate, Di2 ready

Weight

20.2 lb (Size 54, estimated)
