2025 Cannondale Adventure Neo Allroad Speed Low StepThru – Electric Bike
Specifications
|
Specification |
Details |
|
Model |
Adventure Neo Allroad Speed Low StepThru |
|
Vehicle Category |
Electric Bike (Class 3) |
|
Application |
Trails, town, commuting, leisure |
|
Starting Price (2025) |
$2,250.00 USD |
|
Color Options |
Black |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |

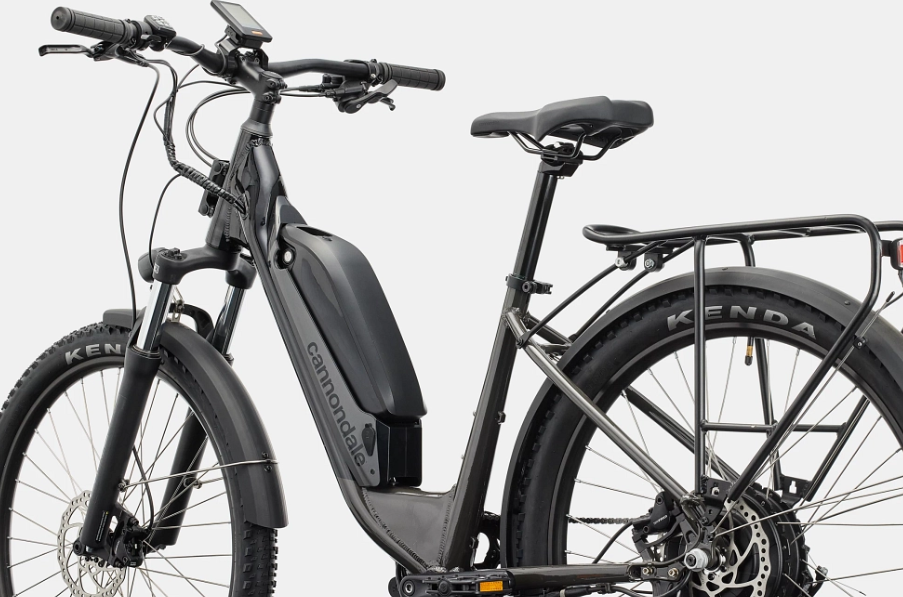

SmartForm C3 Alloy frame, low step-thru, removable downtube battery, semi-internal cable routing, tapered 1-1/8"-1.5" headtube, post mount disc, waterbottle and headtube rack mounts |
|
Fork |
SR Suntour XCM34, 100mm travel, preload adjust, coil, 51mm offset, tapered steerer |
|
Drivetrain Compatibility |
1x8 speed |
|
Dropouts |
Thru-axle (front, 110mm x 15mm), Quick Release (rear) |
|
Bottom Bracket |
Bafang SR PA231.32.ST.C Torque Sensor |
|
Crankset |
Prowheel, 46T |
|
Chain |
KMC Z8, 8-speed |
|
Rear Derailleur |
microSHIFT Acolyte, 8-speed |
|
Shifter |
microSHIFT Acolyte Xpress trigger shifter, 8-speed |
|
Cassette |
microSHIFT, 12-42T, 8-speed |
Components & Features
|
Specification |
Details |
|
Seating |
1 passenger (Cannondale Allroad Comfort) |
|
Fuel Type |
Electric (HWT 48V, 720Wh), human-powered assist |
|
Cargo Capacity |

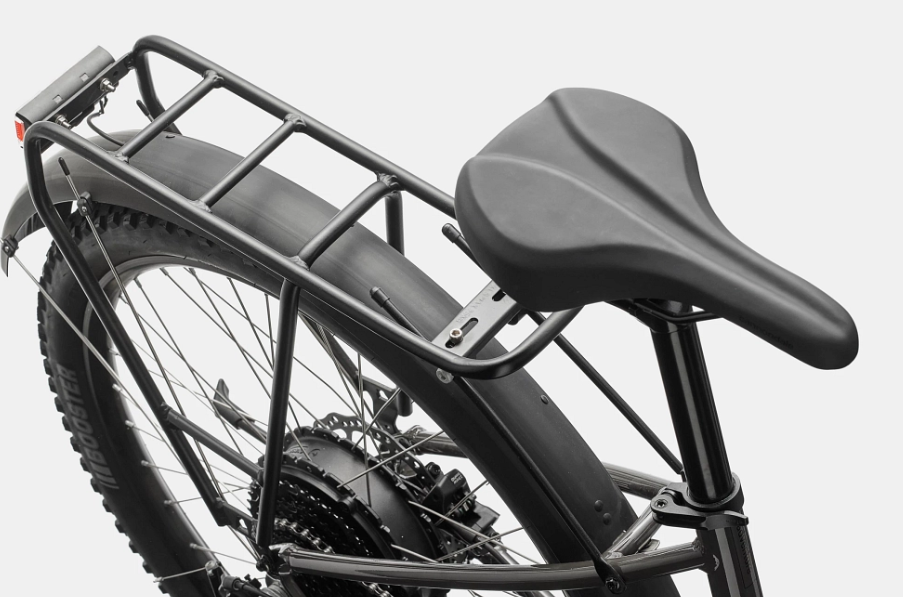

Rear rack (25kg), waterbottle and headtube rack mounts, mid-blade rack/fender mounts |
|
Wheels/Tyres |
Kenda Booster, 27.5 x 2.6" |
|
Wheel Size |
27.5" (650b) |
|
Brakes |
Tektro HD-E395 hydraulic disc w/motor cut-off and brake light function, 180mm rotors |
|
Brake Levers |
Tektro hydraulic, alloy |
|
Handlebar |
Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 740mm |
|
Stem |
Cannondale Alloy, 31.8, 7° |
|
Headset |
Semi Integrated, 1-1/8" - 1.5" |
|
Saddle |
Cannondale Allroad Comfort |
|
Seatpost |
6061 Alloy, 30.9 x 350mm |
|
Seatpost Clamp |
Alloy, 34.9mm |
|
Grips |
Cannondale Comfort |
|
Front Hub |
Sealed alloy disc, 36 hole, 110mm x 15mm thru-axle |
|
Rear Hub |
Bafang G0900 hub motor, 750W |
|
Rims |
Alloy, double wall, 36h, disc-specific |
|
Spokes |
Stainless Steel, (F) 13g / (R) 12g |
|
Pedals |
Cannondale Urban |
|
Interior Features |
Waterbottle and headtube rack mounts, USB charger, Cannondale Wheel Sensor |
|
Exterior Features |
Headlight, taillight w/ brake light function, kickstand, rear rack (25kg), composite fenders w/ stainless steel struts |
|
Weight |
48 lb (Medium, estimated) |
|
Drive Unit |
Bafang G0900 Hub, 750W, 28 mph (45 km/h) max assist, 70 Nm torque |
|
Battery |
HWT 48V, 720Wh, removable, Taiwan-made |
|
Charger |
HWT 2A |
|
Display |

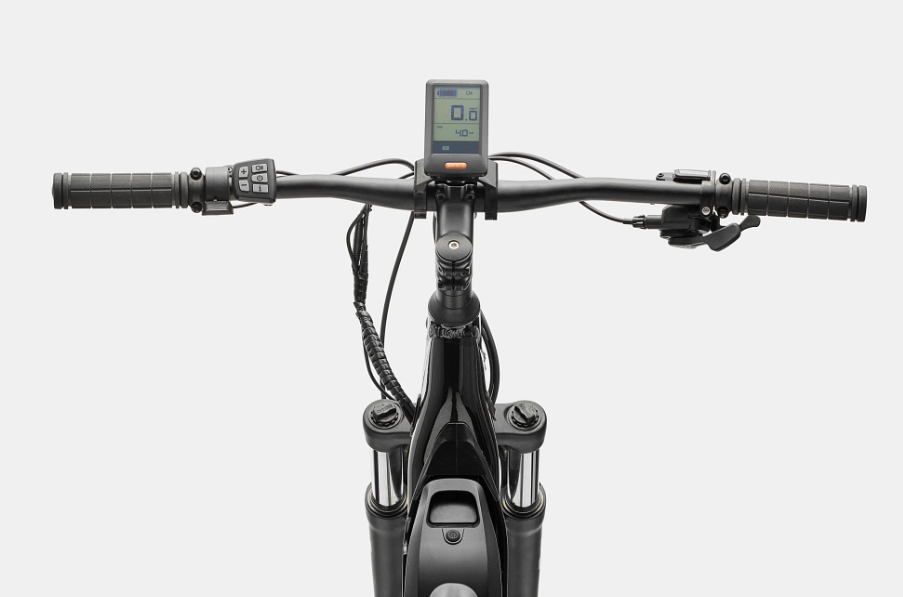

Bafang C10, LCD w/USB port |
|
Range |
Up to 71 miles (114 km), depending on conditions |
