Specification

Details

Model

Adventure Neo 4

Vehicle Category

Electric Bike

Application

City streets, village lanes, backroads, commuting, leisure

Starting Price (2025)

$1,999.00 USD

Color Options

Electric Blue

Specification

Details

Frame

SmartForm C3 Alloy step-thru frame, removable downtube battery, fully internal cable routing, post mount disc, dual waterbottle headtube mount

Fork

SmartForm C3 Alloy blades, 1-1/8" steerer, post mount disc, mid-blade rack/fender mounts, crown accessory mount, 45mm offset

Drivetrain Compatibility

1x9 speed

Dropouts

Quick Release (front and rear)

Bottom Bracket

Bosch, integrated with motor

Crankset

FSA Bosch E-Bike, 38T

Chain

KMC Z9, 9-speed

Rear Derailleur

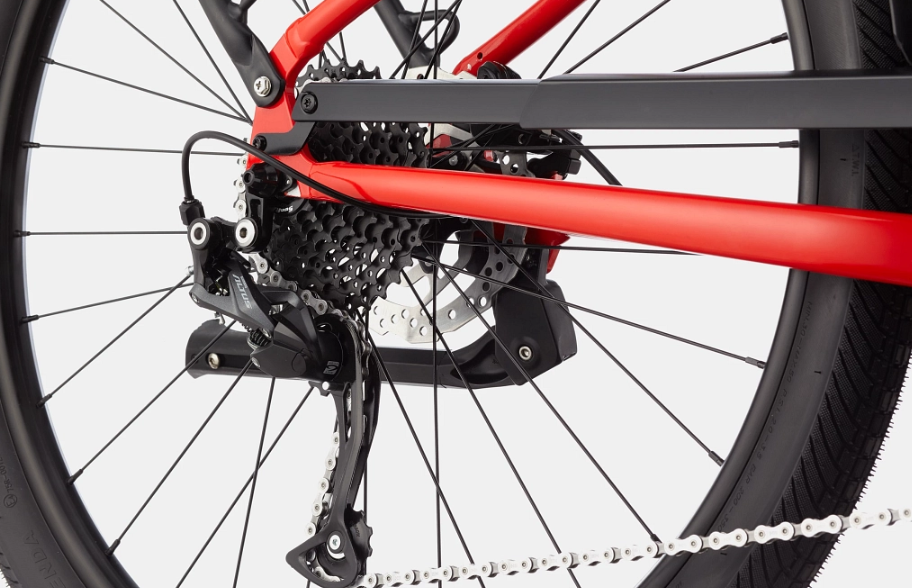

microSHIFT M46L

Shifter

microSHIFT M859, 9-speed

Cassette

microSHIFT, 11-36T, 9-speed

Specification

Details

Seating

1 passenger (Cannondale Ergo Comfort)

Fuel Type

Electric (Bosch PowerTube, 400Wh), human-powered assist

Cargo Capacity

Dual waterbottle headtube mount, mid-blade rack/fender mounts

Wheels/Tyres

Kenda Kwick Seven.5, 27.5 x 2.20"

Wheel Size

27.5" (650b)

Brakes

Riderever hydraulic disc, 180/160mm rotors

Brake Levers

Riderever hydraulic disc

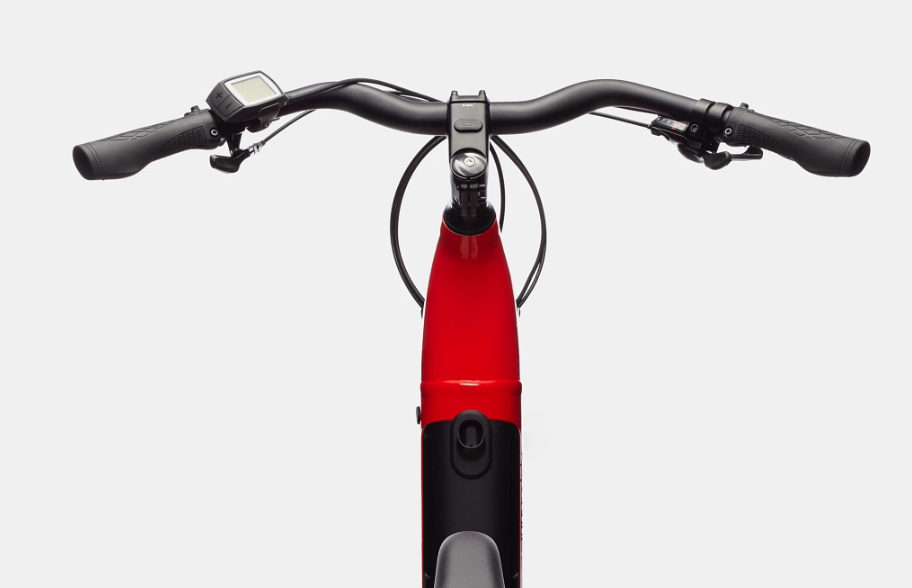

Handlebar

Cannondale E-Series Alloy, ergo backsweep, 680mm

Stem

Cannondale 3 with Intellimount, Alloy, 31.8mm clamp

Headset

Semi Integrated, 1-1/8"

Saddle

Cannondale Ergo Comfort

Seatpost

Cannondale 4, 6061 Alloy, 31.6 x 350mm

Seatpost Clamp

Alloy, 34.9mm

Grips

Cannondale Comfort

Front Hub

Formula DC-1420, QR

Rear Hub

Formula DC-1422, QR

Rims

Cannondale 2, double wall

Spokes

Stainless Steel, 14g

Pedals

Cannondale Urban

Interior Features

Dual waterbottle headtube mount, Cannondale Wheel Sensor

Exterior Features

Kickstand

Weight

45 lb (Large, estimated)

Drive Unit

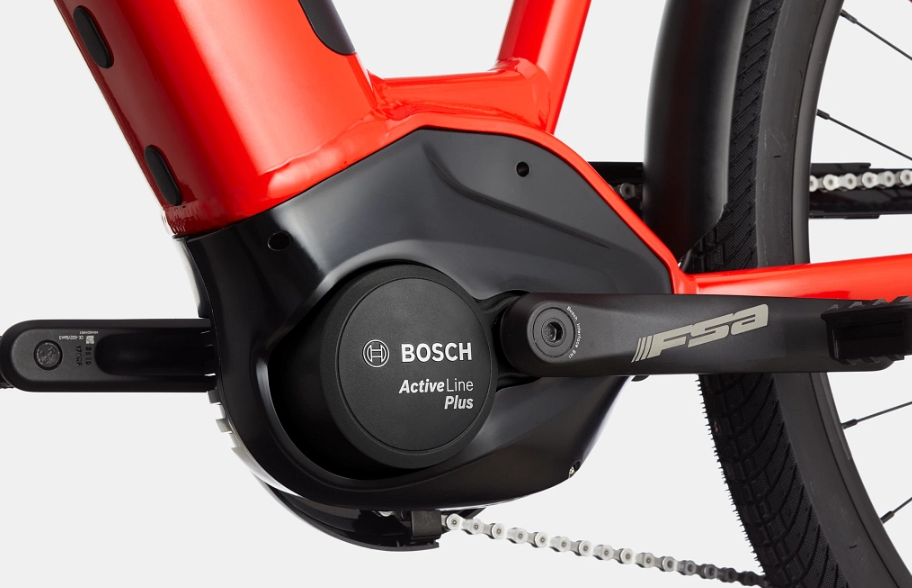

Bosch Active Line, 20 mph (32 km/h) max assist, 40 Nm torque

Battery

Bosch PowerTube, 400Wh, removable

Charger

Bosch 2A

Display

Bosch Purion

Range

Up to 120 km (75 miles), depending on conditions
