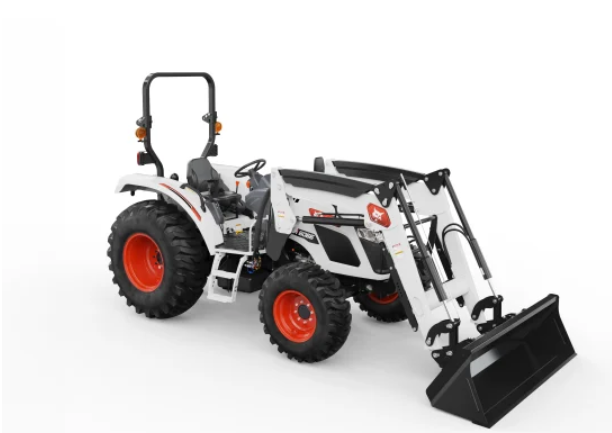

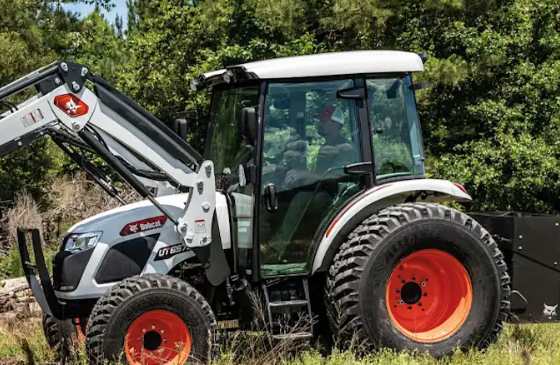

Bobcat UT6066 – 4WD Utility Tractor for Heavy-Duty Tasks
Specifications
|
Specification |
Details |
|
Tractor Model |
Bobcat UT6066 (4WD) |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
Mowing, Grading, Loader Work, Snow Removal, Livestock Chores, Heavy Implement Tasks |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Daedong 4HT-TP4A, 4 cylinders, 148.6 cu. in. (2435 cc), Tier 4/Stage 5 |
|
Gross Horsepower |
66.4 HP (49.5 kW) |
|
PTO Horsepower |
53.6 HP (39.9 kW) |
|
Transmission Type |
3-Range Powershuttle with Electronic Clutch, 12x12 |
|
Engine Speed |
2600 rpm |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Suspension seat |
|
Braking System |
Wet multi-disc brakes |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size |
Front: 12.5/80-18 (Industrial), 9.5-24 (Ag), 340/80R18 (Multi-Use); Rear: 18.4-24 (Industrial), 16.9-30 (Ag), 480/80R26 (Multi-Use) |
|
Turning Radius |
147.0 in. (3733 mm) |
|
Outside Turning Diameter |
307.0 in. (7797 mm) |
Components & Features
|
Specification |
Details |
|
PTO Type |
Rear: 540/540E rpm, Independent |
|
Hydraulic System |
Total: 17.9 gpm (67.7 L/min), Implement: 11.0 gpm (41.6 L/min), Steering: 6.9 gpm (26.1 L/min) |
|
3-Point Hitch |
Category 2, Lift capacity at 24 inches behind lift point: 3594 lb. (1630 kg), Position with Draft Control |
|
Loader Attachment |
FL10, Lift height: 129.0 in. (3276 mm), Lift capacity at bucket pivot: 2614 lb. (1185 kg), Bucket width: 81.0 in. (2057 mm), Loader control valve and joystick |
|
Fuel Tank Capacity |
22.4 gal. (84.9 L) |
|
Weight |
5440 lb. (2467 kg) |
|
Dimensions |
Length: 148.8 in. (3779 mm), Width: 77.2 in. (1960 mm), Height: 102.1 in. (2593 mm), Wheelbase: 82.7 in. (2100 mm), Ground clearance: 12.3 in. (312 mm) |
|
Features |
Suspension seat, Glow plug engine preheat, Spark arrestor muffler, Horn, Tilt steering wheel, Fold-down ROPS |
