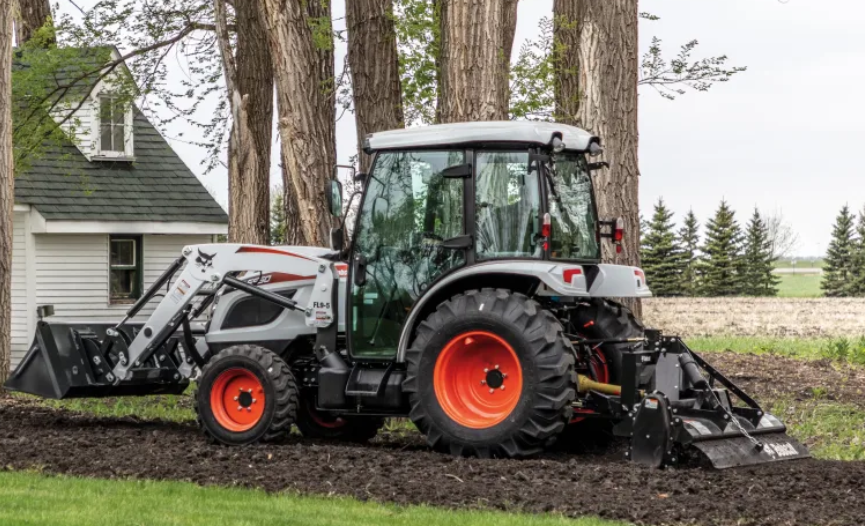

Bobcat CT5545 E-HST – 4WD Compact Tractor for Heavy-Duty Tasks
Specifications
|
Specification |
Details |
|
Tractor Model |
Bobcat CT5545 E-HST (4WD) |
|
Vehicle Category |
Compact Tractor |
|
Fuel Type |
Diesel |
|
Application |
Groundskeeping, Livestock Chores, Snow Removal, Loader Work |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Diesel, 3 cylinders, 111.4 cu. in. (1.8 L) |
|
Gross Horsepower |
45.0 HP (33.5 kW) |
|
PTO Horsepower |
33.9 HP (25.3 kW) |
|
Transmission Type |
3-Range Electronic Hydrostatic (E-HST) |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Adjustable seat |
|
Braking System |
Wet multi-disc brakes, Rear differential lock |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Type |
Industrial, Turf |
|
Turning Radius |
117.6 in. (2990 mm) |
Components & Features
|
Specification |
Details |
|
PTO Type |
Rear: 540 rpm, Independent; Mid: 2103 rpm (optional) |
|
Hydraulic System |
Total: 17.8 gpm (67.6 L/min), Rear hydraulics: 1 pair standard, 2nd and 3rd pairs optional |
|
3-Point Hitch |
Category 1, Lift capacity: 3177 lb. (1441 kg), Position with draft control, Telescopic stabilizers, Telescopic lower links |
|
Loader Lift Capacity |
2346 lb. (1064 kg) at bucket pivot pins |
|
Fuel Tank Capacity |
14.8 gal. (56.0 L) |
|
Weight |
4685 lb. (2125 kg) |
|
Dimensions |
Length: 139.6 in. (3547 mm), Width: 74.2 in. (1885 mm), Height: 94.2 in. (2393 mm), Wheelbase: 75.6 in. (1920 mm), Ground clearance: 13.0 in. (330 mm) |
|
Features |
Adjustable seat, Cup holder, Glow plug engine preheat, Toolbox, Headlights/Taillights/Brake lights, Horn/Hazard flasher/Turn signals, Rear working light, Side mirror, Enclosed cab with heat/AC, Fully retractable seatbelt, Cruise control, Spark arrestor muffler |
