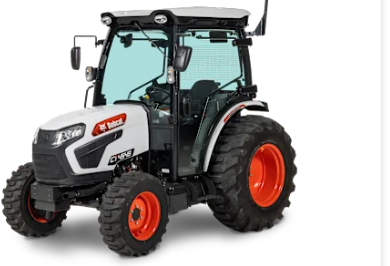

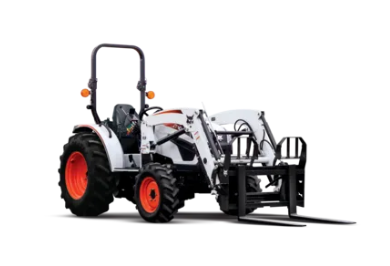

Bobcat CT4050 HST – 4WD Compact Tractor for Versatile Tasks
Specifications
|
Specification |
Details |
|
Tractor Model |
Bobcat CT4050 HST (4WD) |
|
Vehicle Category |
Compact Tractor |
|
Fuel Type |
Diesel |
|
Application |
Mowing, Grading Driveways, Loader Work, Livestock Chores, Snow Removal |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Diesel, 3 cylinders, 111.4 cu. in. (1.8 L) |
|
Gross Horsepower |
50.3 HP (37.3 kW) |
|
PTO Horsepower |
39.3 HP (29.3 kW) |
|
Transmission Type |
3-Range Hydrostatic (HST) |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Adjustable seat |
|
Braking System |
Wet multi-disc brakes, Rear differential lock |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Type |
Industrial, Turf |
|
Turning Radius |
103.5 in. (2630 mm) |
Components & Features
|
Specification |
Details |
|
PTO Type |
Rear: 540 rpm, Independent; Mid: 2119 rpm (optional) |
|
Hydraulic System |
Total: 16.5 gpm (62.4 L/min), Rear hydraulics: 1 pair standard, 2nd pair optional |
|
3-Point Hitch |
Category 1, Lift capacity: 2716 lb. (1232 kg), Hydraulic position control, Turnbuckle stabilizers, Rigid lower links |
|
Loader Lift Capacity |
1858 lb. (842 kg) at bucket pivot pins |
|
Fuel Tank Capacity |
12.7 gal. (48.0 L) |
|
Weight |
3745 lb. (1698 kg) |
|
Dimensions |
Length: 125.5 in. (3189 mm), Width: 70.3 in. (1785 mm), Height: 97.4 in. (2473 mm), Wheelbase: 71.2 in. (1810 mm), Ground clearance: 15.3 in. (387 mm) |
|
Features |
Adjustable seat, Cup holder, Glow plug engine preheat, Toolbox, Headlights/Taillights/Brake lights, Horn/Hazard flasher/Turn signals, Rear working light (optional), Side mirror (optional), Fold-down ROPS, Fully retractable seatbelt, Cruise control (optional), Spark arrestor muffler |
