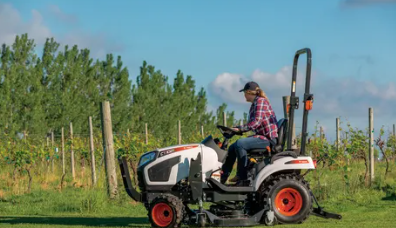

Bobcat CT2040 MST – 4WD Compact Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Bobcat CT2040 MST |
|
Vehicle Category |
Compact Tractor |
|
Fuel Type |
Diesel |
|
Application |
Small Farms, Landscaping, Loader Work |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
3-Cylinder, 111.4 cu. in. (1.8 L), Diesel, Stage V |
|
Gross Horsepower |
39.6 HP (29.5 kW) |
|
Transmission Type |
9F x 3R Manual |
|
Fuel Tank Capacity |
9.0 gal (34.1 L) |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Fold-Down ROPS (Roll-Over Protective Structure) |
|
Braking System |
Wet Multi-Disc, Steering Brakes |
|
Steering |
Hydrostatic Power Steering, 96.5 in. (2450 mm) Inside Turning Radius |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
Turf, Industrial, or Agricultural Options |
Components & Features
|
Specification |
Details |
|
PTO Type |
Rear: 540 RPM, Mid: Optional 1,988 RPM, Live PTO, 34.9 HP (26.0 kW) |
|
3-Point Hitch |
Category 1, 1,631 lb (740 kg) Lift Capacity, Turnbuckle Link Stabilizers, Turnbuckle Lifting Rod, Fixed Lower Links |
|
Hydraulic System |
11.4 gpm (42.9 L/min), 2 Pairs Rear Hydraulics (Optional), Hydraulic Position Control System |
|
Loader Lift Capacity |
1,389 lb (630 kg) at Bucket Pivot Pins |
|
Driving Position |
Adjustable Seat, Cup Holder, Fully Retractable Seat Belt |
|
Additional Features |
Glow Plug Engine Preheat, Spark Arrestor Muffler, Optional Toolbox, Head/Tail/Brake Lights, Horn, Hazard Flasher, Turn Signals, Optional Rear Working Light, Optional Side Mirror, Safety Interlock System |
|
Dimensions |
Length: 120.9 in. (3,070 mm), Width: 62.4 in. (1,584 mm), Height: 92.2 in. (2,341 mm), Wheelbase: 65.7 in. (1,670 mm), Ground Clearance: 11.7 in. (297 mm) |
|
Weight |
3,005 lb (1,363 kg) |
