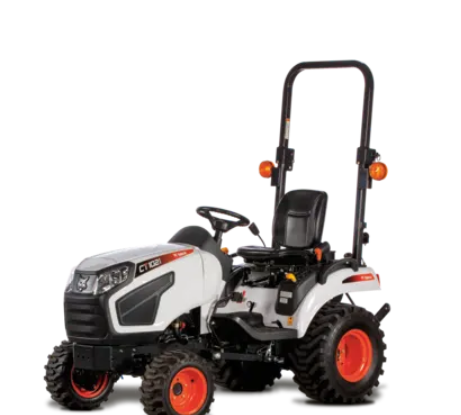

Bobcat CT1021 – 4WD Sub-Compact Tractor for Small Property Tasks
Specifications
|
Specification |
Details |
|
Tractor Model |
Bobcat CT1021 (4WD) |
|
Vehicle Category |
Sub-Compact Tractor |
|
Fuel Type |
Diesel |
|
Application |
Mowing, Grading, Loader Work, Small Property Maintenance |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Diesel, 3 cylinders, 61.5 cu. in. (1.0 L) |
|
Gross Horsepower |
21.0 HP (15.7 kW) |
|
PTO Horsepower |
16.3 HP (12.1 kW) |
|
Transmission Type |
2-Range Hydrostatic (HST) |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Adjustable seat |
|
Braking System |
Wet multi-disc brakes, Rear differential lock |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Type |
Industrial, Turf |
|
Turning Radius |
100.0 in. (2540 mm) |
Components & Features
|
Specification |
Details |
|
PTO Type |
Rear: 540 rpm, Independent; Mid: 2200 rpm, Standard |
|
Hydraulic System |
Total: 7.2 gpm (27.4 L/min), Rear hydraulics: 1 pair (optional) |
|
3-Point Hitch |
Category 1 Limited, Lift capacity: 700 lb. (318 kg), Hydraulic position control, Turnbuckle stabilizers, Rigid lower links |
|
Loader Lift Capacity |
608 lb. (275 kg) at bucket pivot pins |
|
Fuel Tank Capacity |
6.7 gal. (25.5 L) |
|
Weight |
1521 lb. (690 kg) |
|
Dimensions |
Length: 99.3 in. (2522 mm), Width: 45.7 in. (1161 mm), Height: 87.6 in. (2225 mm), Wheelbase: 55.1 in. (1400 mm), Ground clearance: 6.3 in. (160 mm) |
|
Features |
Adjustable seat, Cup holder, Glow plug engine preheat, Toolbox, Headlights/Taillights/Brake lights, Horn/Hazard flasher/Turn signals, Rear working light (optional), Dealer-installed cab with heat (optional), Safety interlock system, Fold-down ROPS, Fully retractable seatbelt, Cruise control (optional), Spark arrestor muffler (optional) |
