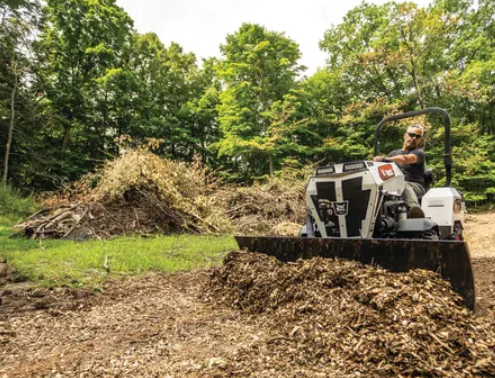

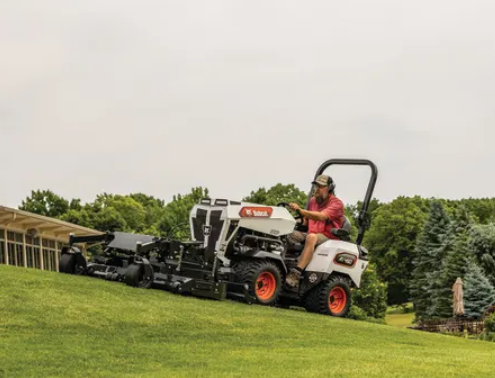

Bobcat AT450 (Diesel) – 4WD Articulating Tractor with Bobcat Animal Head Logo
 1.png)
Specifications
|
Specification |
Details |
|
Tractor Model |
Bobcat AT450 (Diesel, 4WD) |
|
Vehicle Category |
Articulating Tractor |
|
Fuel Type |
Diesel |
|
Application |
Mowing, Snow Removal, Landscaping, Grounds Maintenance |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Kubota D902, 3 cylinders, 55 in³, Liquid-cooled |
|
Gross Horsepower |
24.8 HP |
|
Transmission Type |
Hydrostatic |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Adjustable suspension seat, Articulating and oscillating frame |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Type |
Turf |
|
Turning Radius |
43.5 in. (1105 mm) |
Components & Features
|
Specification |
Details |
|
PTO Type |
Front: Adjustable cog belt system |
|
Hydraulic System |
Standard flow: 6 gpm (22.7 L/min) @ 3600 rpm, Aux pressure: 1750 psi, Hydraulic weight transfer and traction boost |
|
Fuel Tank Capacity |
7.0 gal. (26.5 L) |
|
Weight |
1865 lb. (846 kg) |
|
Dimensions |
Length: 80.5 in. (2045 mm), Width standard: 44.5 in. (1130 mm), Width with dual wheel kit: 66.5 in. (1689 mm), Width with 3" extensions: 50.5 in. (1283 mm), Height (ROPS up): 73.5 in. (1867 mm), Height (ROPS folded): 55.0 in. (1397 mm), Wheelbase: 43.5 in. (1105 mm) |
|
Features |
QuickHitch™ attachment system, LED work lights, Spacious anti-slip operator platform, Foot pegs, Digital display, Easy-access service points, Easy-access battery terminal, Easy-access tie-downs, Protective skid plating, Optional dual wheel kit, Fold-down ROPS, 12-volt charger, Storage bin |
