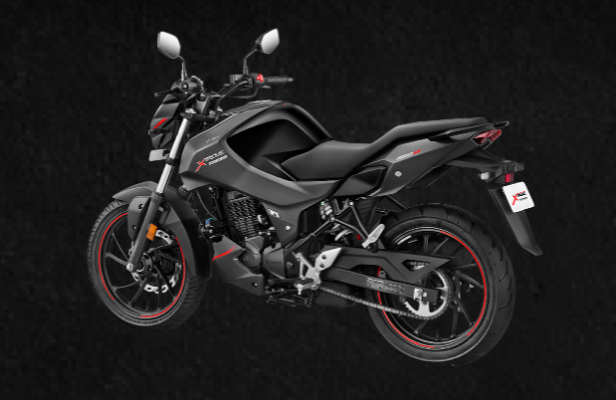

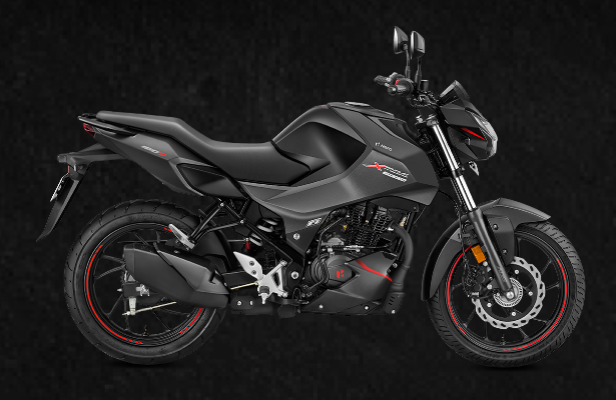

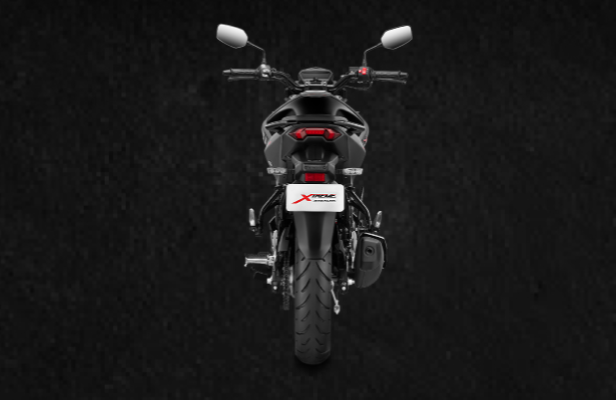

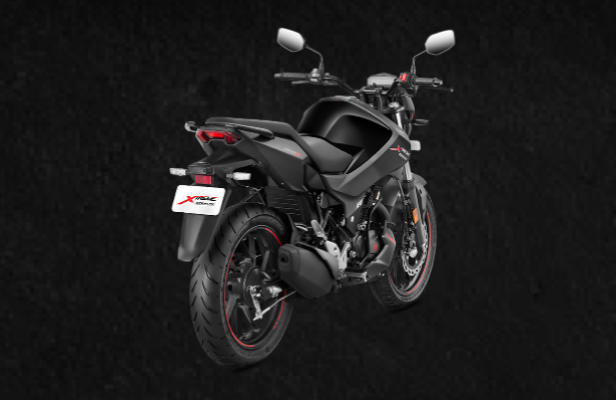

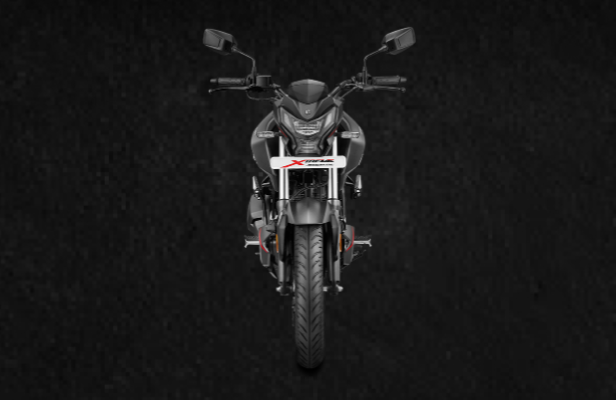

Hero Xtreme 160R 4V 2025 – 163.2cc Street Motorcycle
Full Specifications
|
Specification |
Details |
|
Engine |
163.2 cc, air-cooled, 4-stroke, single-cylinder, SOHC, BS6 Phase 2 |
|
Power |
16.6 bhp @ 8500 rpm |
|
Torque |
14.6 Nm @ 6500 rpm |
|
Transmission |
5-speed manual |
|
Mileage |
41.2 kmpl (user-reported), 45 kmpl (claimed) |
|
Fuel Tank Capacity |
12 liters |
|
Kerb Weight |
144 kg |
|
Dimensions (LxWxH) |
2029x793x1052 mm |
|
Wheelbase |
1333 mm |
|
Ground Clearance |
165 mm |
|
Seat Height |
795 mm |
|
Suspension (Front/Rear) |
37 mm KYB USD Forks/7-step Preload-Adjustable Monoshock |
|
Brakes (Front/Rear) |
276 mm Disc/220 mm Disc or 130 mm Drum, Single-Channel ABS |
|
Tyres (Front/Rear) |
100/80-17 (tubeless)/130/70-17 (tubeless) |
|
Variants |
Standard, Connected, Pro |
|
Price (Ex-Showroom, Delhi) |
₹1,38,500 - ₹1,47,500(Year- 2025) |
Engine & Transmission
|
Specification |
Details |
|
Engine Type |
Air-cooled, 4-stroke, single-cylinder, SOHC, Fuel Injection, 4-valve |
|
Displacement |
163.2 cc |
|
Bore & Stroke |
56.5 mm x 65.1 mm |
|
Compression Ratio |
10.1:1 |
|
Maximum Power |
16.6 bhp @ 8500 rpm |
|
Maximum Torque |
14.6 Nm @ 6500 rpm |
|
Fuel System |
Fuel Injection (FI) with XSens Technology |
|
Transmission |
5-speed manual |
|
Clutch |
Wet multiplate |
Dimensions & Weight
|
Specification |
Details |
|
Overall Length |
2029 mm |
|
Overall Width |
793 mm |
|
Overall Height |
1052 mm |
|
Wheelbase |
1333 mm |
|
Seat Height |
795 mm |
|
Ground Clearance |
165 mm |
|
Kerb Weight |
144 kg |
|
Fuel Tank Capacity |
12 liters |
Chassis & Suspension
|
Specification |
Details |
|
Frame Type |
Tubular Diamond |
|
Front Suspension |
37 mm KYB USD Forks, 130 mm stroke |
|
Rear Suspension |
7-step Preload-Adjustable Monoshock, 93 mm stroke, Showa |
Brakes & Tyres
|
Specification |
Details |
|
Front Brake |
276 mm Petal Disc, Single-Channel ABS |
|
Rear Brake |
220 mm Disc (Pro) or 130 mm Drum (Standard/Connected), Single-Channel
ABS |
|
Front Tyre |
100/80-17, tubeless |
|
Rear Tyre |
130/70-17, tubeless |
Electricals & Features
|
Specification |
Details |
|
Battery |
12V 6Ah (MF) |
|
Starting Method |
Electric & Kick |
|
Instrumentation |
Fully digital LCD with Bluetooth (Connected/Pro), Drag Race Timer
(D1: 0-60 kmph, D2: 0-402 m) |
|
Lighting |
LED headlamp with DRL, LED tail light with H-design, LED turn signals |
|
Features |
XSens start/stop technology, USB charging port, side stand engine
cut-off, panic brake alert (Pro), Bluetooth connectivity (Connected/Pro), E20
fuel compatible |
|
E20 Fuel Compatible |
Yes |
Available Colors
|
Specification |
Details |
|
Colors |
Neon Shooting Star, Kevlar Black, Matte Slate Black |
