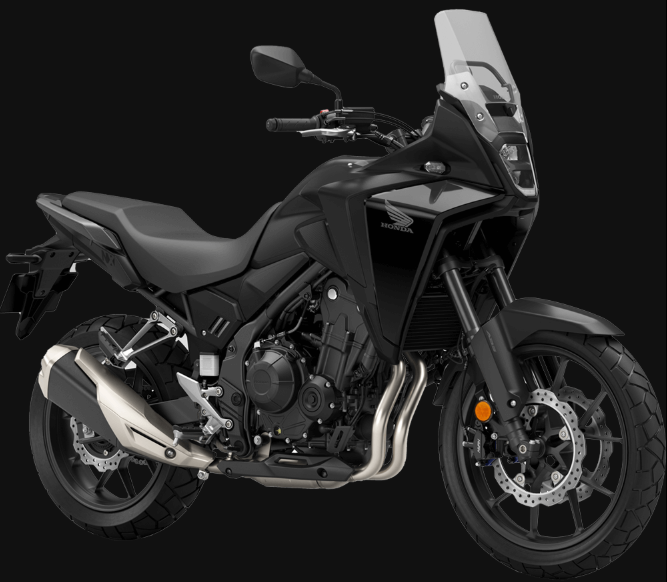

Honda NX500 2025 – 471cc Adventure Motorcycle
Full Specifications
|
Specification |
Details |
|
Engine |
471 cc, liquid-cooled, 4-stroke, DOHC, parallel-twin, BS6 Phase 2 |
|
Power |
46.9 bhp @ 8600 rpm |
|
Torque |
43 Nm @ 6500 rpm |
|
Transmission |
6-speed manual, slip-and-assist clutch |
|
Mileage |
27.8 kmpl (claimed) |
|
Fuel Tank Capacity |
17.5 liters |
|
Kerb Weight |
196 kg |
|
Dimensions (LxWxH) |
2165x830x1415 mm |
|
Wheelbase |
1445 mm |
|
Ground Clearance |
180 mm |
|
Seat Height |
830 mm |
|
Suspension (Front/Rear) |
41 mm Showa SFF-BP USD Forks/Mono-shock, Pro-Link |
|
Brakes (Front/Rear) |
296 mm Disc/240 mm Disc, Dual-channel ABS |
|
Tyres (Front/Rear) |
110/80-19, 160/60-17 (tubeless) |
|
Variants |
STD |
|
Price (Ex-Showroom, Delhi) |
₹5,90,000 |
Engine & Transmission
|
Specification |
Details |
|
Engine Type |
Liquid-cooled, 4-stroke, DOHC, parallel-twin |
|
Displacement |
471 cc |
|
Bore & Stroke |
67 mm x 66.8 mm |
|
Compression Ratio |
10.7:1 |
|
Maximum Power |
46.9 bhp @ 8600 rpm |
|
Maximum Torque |
43 Nm @ 6500 rpm |
|
Fuel System |
Programmed Fuel Injection (PGM-FI) |
|
Transmission |
6-speed manual |
|
Clutch |
Wet multiplate, slip-and-assist |
Dimensions & Weight
|
Specification |
Details |
|
Overall Length |
2165 mm |
|
Overall Width |
830 mm |
|
Overall Height |
1415 mm |
|
Wheelbase |
1445 mm |
|
Seat Height |
830 mm |
|
Ground Clearance |
180 mm |
|
Kerb Weight |
196 kg |
|
Fuel Tank Capacity |
17.5 liters |
Chassis & Suspension
|
Specification |
Details |
|
Frame Type |
Diamond-type steel |
|
Front Suspension |
41 mm Showa SFF-BP USD Forks, 135 mm travel |
|
Rear Suspension |
Mono-shock with Pro-Link, preload adjustable |
Brakes & Tyres
|
Specification |
Details |
|
Front Brake |
296 mm Disc, Dual-channel ABS |
|
Rear Brake |
240 mm Disc, Dual-channel ABS |
|
Front Tyre |
110/80-19, tubeless |
|
Rear Tyre |
160/60-17, tubeless |
Electricals & Features
|
Specification |
Details |
|
Battery |
12V 8.6Ah |
|
Starting Method |
Electric |
|

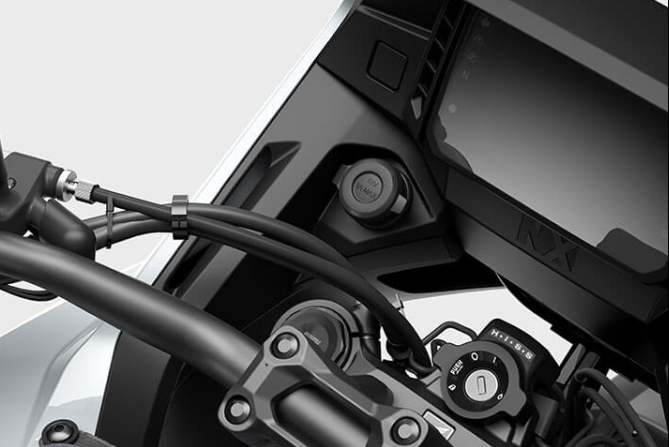

Instrumentation |
5-inch TFT display with Honda RoadSync |
|
Lighting |
Full LED headlamp, tail light, turn signals |
|
Features |
Honda Selectable Torque Control (HSTC), smartphone connectivity,
traction control, riding modes, adjustable windscreen, side stand cut-off |
|
E20 Fuel Compatible |
Yes |
Available Colors
|
Specification |
Details |
|
Colors |

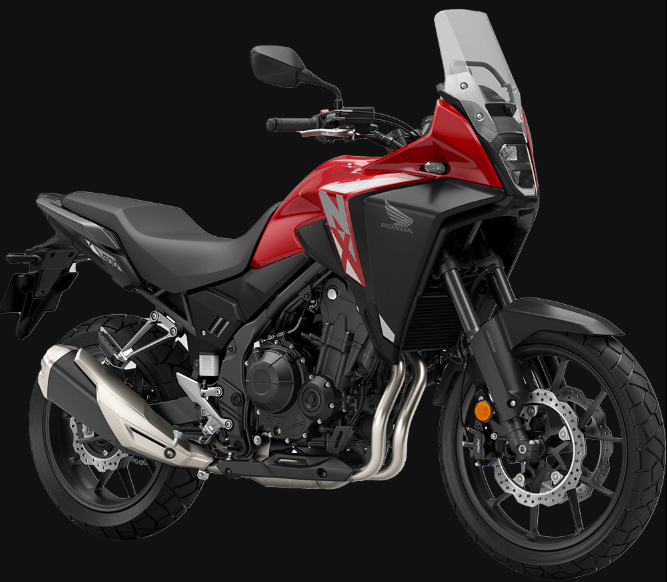

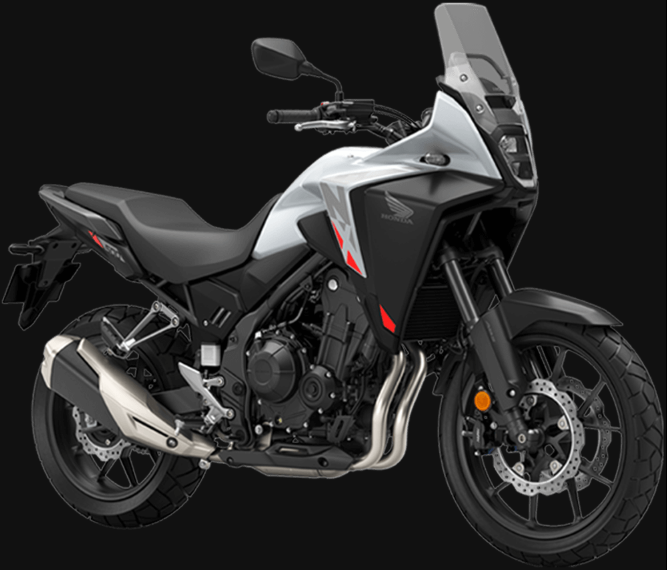

Grand Prix Red, Pearl Horizon White, Gunpowder Black Metallic |
