Specification

Details

Model

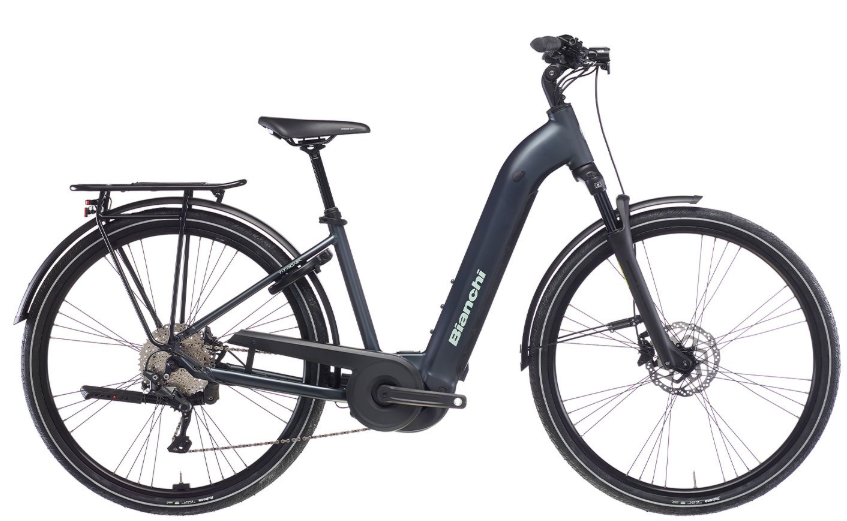

T-Tronik C 8.2 Chain

Vehicle Category

E-Bike

Application

Urban commuting

Starting Price (2025)

€3,250

Color Options

Graphite - Sage Green [Full Matt]

Sizes

SM, MD, LG, XL

Specification

Details

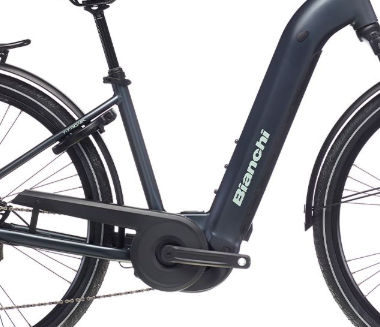

Frame

Bianchi T-Tronik C, aluminium, 9x135mm rear quick release, Post mount 160 disc brake type, Front travel 80 mm, Internal cable routing in steerer, 800 Wh battery compatible

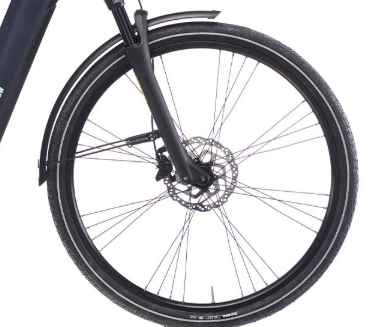

Fork

Suntour NVX32 29", Coil, 80 mm travel, Steerer tube 1,5" tapered, 32 mm stanchions, 15x110 Boost axle, Rotor: minimum 180 mm, maximum 203 mm

Crank

FSA CK-320/IS, Aluminium DieCast, Crank length: 170 mm

Chain

KMC e10S EPT, Anti-Rust

Shifters

Shimano Deore SL-M4100, Rapidfire Plus

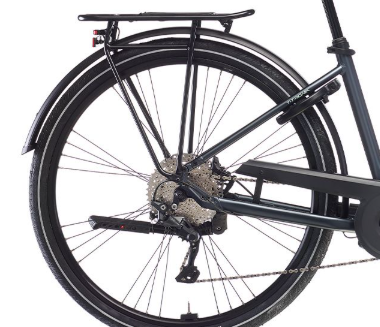

Rear Derailleur

Shimano Deore, RD-M4120, 10sp, Shadow design

Specification

Details

Seating

Selle Royal Essenza

Fuel Type

Electric (Bosch Powertube 600 Wh)

Wheels/Tyres

Velomann 622x25, 32 hole, Front hub: Shimano TC500 Thru axle, Rear hub: Formula CL-1422 Quick Release, Spoke pattern 4x8, Rubena Cityhopper, 28"x2,00", Antipuncture, Reflex

Wheel Size

28"

Brakes

Shimano Deore BR-MT410, 2 piston, resin pad, Shimano SM-RT10, 180 mm front/rear

Brake Levers

Shimano Deore BL-MT401

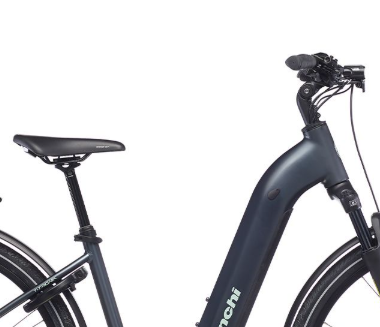

Handlebar

Velomann Wien, Aluminium, Rise 20 mm, Barbore 31.8 mm, Backsweep 15°, Size: 680 mm

Stem

Velomann Aluminium, Adjustable, Barbore: 31,8 mm

Headset

FSA 1.5" for tapered fork steerer, Dual side internal cable routing

Saddle

Selle Royal Essenza

Seatpost

Velomann Suspended 50 mm for size SM; Dropper suspended, 80 mm travel + 40 mm suspension for size MD, LG, XL

Grips

Herrmans Oxy 130 mm

Front Hub

Shimano TC500 Thru axle

Rear Hub

Formula CL-1422 Quick Release

Rims

Velomann 622x25, 32 hole

Spokes

Spoke pattern 4x8

Pedals

VP VPE-889P, w/reflectors

Exterior Features

Marcon Primo 65 aluminium mudguards, Ursus MOOI PLUS kickstand (40Kg max system weight), Lezyne Mini E65 front light (65 lux), Spanninga Pimento large rear light w/reflector
