2025 Bianchi Sprint 105 12sp – Road Bike

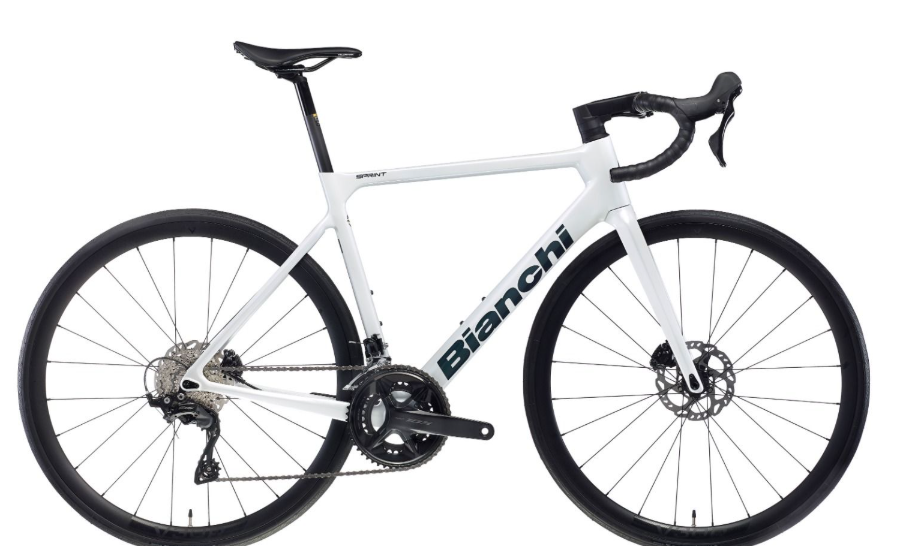

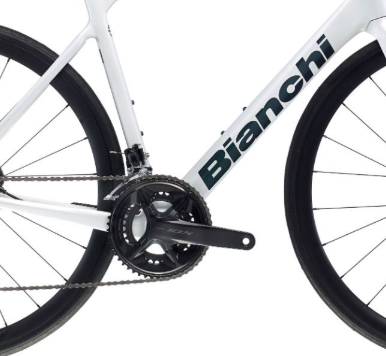

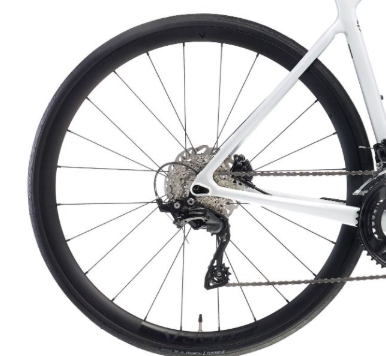

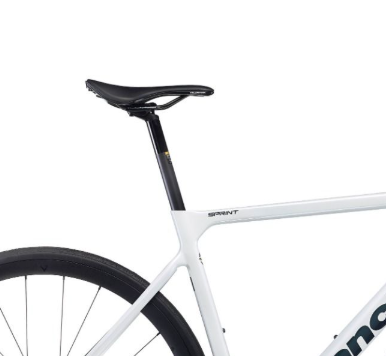

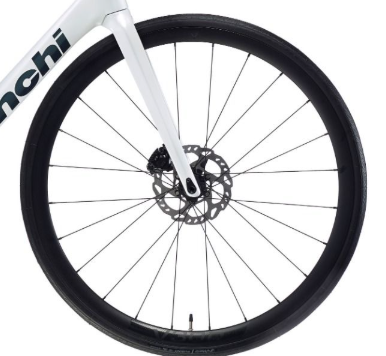

Images:
1
2
3
4
5

Specifications

Specification

Details

Model

Sprint 105 12sp

Vehicle Category

Road Bike

Application

Road racing and recreational riding

Starting Price (2025)

€2,650

Color Options

White/Blue Purple

Sizes

47cm, 50cm, 53cm, 55cm, 57cm, 59cm, 61cm

Frame & Drivetrain

Specification

Details

Frame

Sprint carbon monocoque, mechanical/electronic, BB-PressFit 86,5x41, head tube 1.4"-1.5", integrated seat clamp, full carbon dropout, Disc brake flat mount, thru axle 12 x 142

Fork

Full Carbon Aero Road 1.4">1.5" integrated head, Disc brake flat mount, thru axle 12x100

Crank

Shimano 105 12sp, 12-speed, Crank Length: 170mm (47-53cm), 172.5mm (55-59cm), 175mm (61cm)

Chain

Shimano 105 12sp

Bottom Bracket

Shimano SM-BB72-41B, press fit for road

Shifters

Shimano 105 hydraulic disc brake for road, for 160mm rotor

Front Derailleur

Shimano 105 12sp

Rear Derailleur

Shimano 105 12sp, direct attachment, max 36T

Components & Features

Specification

Details

Seating

Velomann Seta

Wheels/Tyres

Velomann alloy, disc brake, 30mm rim profile, hub team TC j-bend, spoke round 2mm black color, clincher 622x19C, w/rim tape, front HH12 - rear HH12/142, Vittoria Rubino IV G2.0 graphene, 700x25, 60TPI

Wheel Size

700c

Brakes

Shimano Hydraulic disc brake, included in the shifter, Shimano rotor for disc brake center lock, SM-RT70, 160mm

Brake Levers

Shimano 105

Handlebar

Velomann Compact, alloy 6061, diam. 31,8mm, reach 80mm, drop 130mm, Size: 400mm (44-53cm), 420mm (55-59cm), 440mm (61cm)

Stem

Velomann, Alloy 6061, raise -7°, Ext: 80mm (44cm), 90mm (47-50cm), 100mm (53cm), 110mm (55-57cm), 120mm (59-61cm)

Headset

ACROS & FSA, for internal cable routing

Saddle

Velomann Seta

Seatpost

Velomann alloy 6061, 15mm offset, 27,2mm, Length: 300mm (44cm), 350mm (47-61cm)

Grips

Bianchi cork, black

Front Hub

Velomann alloy, disc brake, hub team TC j-bend, front HH12

Rear Hub

Velomann alloy, disc brake, hub team TC j-bend, rear HH12/142

Rims

Velomann alloy, 30mm rim profile, clincher 622x19C

Spokes

Round 2mm black color, j-bend

Exterior Features

Integrated seat clamp, full carbon dropout
