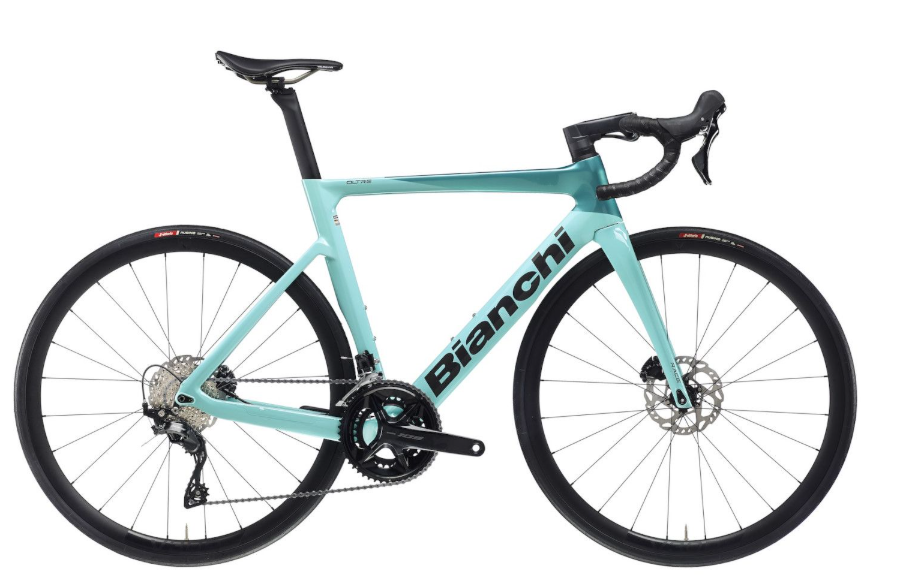

2024 Bianchi Oltre Race 105 12sp – Road Bike
Specifications
|
Specification |
Details |
|
Model |
Oltre Race 105 12sp |
|
Vehicle Category |
Road Bike |
|
Application |
Road racing |
|
Starting Price (2025) |
€2,990 |
|
Color Options |
CK16/Metallic Celeste - full glossy |
|
Sizes |
44cm, 47cm, 50cm, 53cm, 55cm, 57cm, 59cm, 61cm |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Oltre Race aero carbon, compatible with mechanical/electronic transmissions, compatible with internal cable routing, BB-PressFit 86,5x41, integrated seat clamp, disc brake flat mount, thru-axle 12x142 |
|
Fork |
Full Carbon Aero, integrated head, disc brake flat mount, thru axle 12x100 |
|

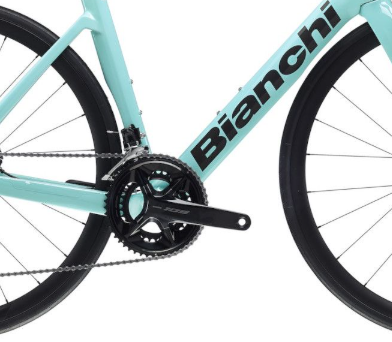

Crank |
Shimano 105 12sp, FC-R7100, 50x34T, Crank Length: 165mm (44cm), 170mm (47/53cm), 172.5mm (55/59cm), 175mm (61cm) |
|
Chain |
Shimano 105 12sp, CN-M7100 |
|
Bottom Bracket |
Token Ninja Lite BB4124PS, for 24mm spindle, threaded design |
|
Shifters |
Shimano 105 hydraulic disc brake for road, ST-R7120, BR-R7170, for 160mm rotor |
|
Front Derailleur |
Shimano 105 12sp, FD-R7100 |
|

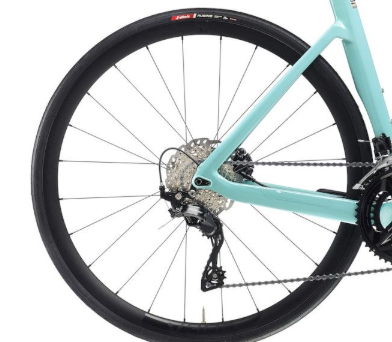

Rear Derailleur |
Shimano 105 12sp, RD-R7100 |
Components & Features
|
Specification |
Details |
|
Seating |
Velomann Mitora139.1, open flow, steel rails 7x7mm, carbon-reinforced nylon, Wide: 139mm, Length: 250mm |
|

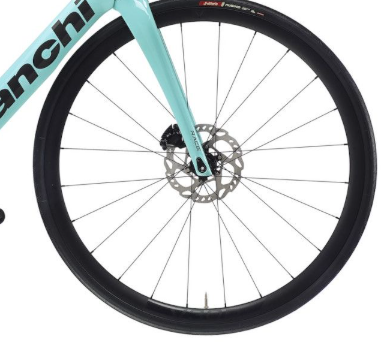

Wheels/Tyres |
Velomann V30R, alloy, 23mm channel, 30mm profile, 2 to 1 spoke pattern, j-bend spokes, black, HG11 body, weight: 1790g, Vittoria Rubino 28-622 full black G2.0, graphene + silica, 100TPI |
|
Wheel Size |
700c |
|
Brakes |
Shimano BR-R7170 Hydraulic disc brake, included in the shifter, Shimano RT70 rotor for disc brake center lock, 160mm front and rear |
|
Brake Levers |
Shimano 105, ST-R7120 |
|
Handlebar |
Velomann Aero Compact, alloy 6061 diam. 31.8mm, reach 74mm, drop 116mm, Size: 400mm (47-53cm), 420mm (55-59cm), 440mm (61cm) |
|
Stem |
Velomann, Alloy 6061, rise -7°, Ext: 80mm (44cm), 90mm (47-50cm), 100mm (53cm), 110mm (55-57cm), 120mm (59-61cm) |
|
Headset |
ACROS & FSA, for internal cable routing |
|
Saddle |
Velomann Mitora139.1, open flow, steel rails 7x7mm, carbon-reinforced nylon, Wide: 139mm, Length: 250mm |
|

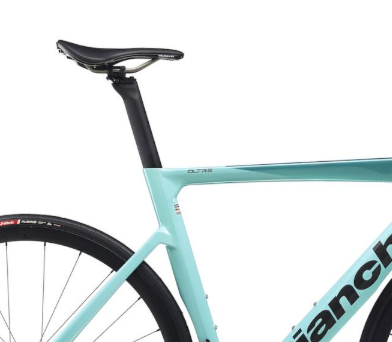

Seatpost |
Velomann Full Carbon Aeroshape, special Clamp type with alloy head adjustable and reversible +/- 35mm, Length: 250mm (44cm), 300mm (47-50cm), 350mm (53-61cm) |
|
Grips |
Bianchi Hexagon tape, 2.5mm thickness, black |
|
Front Hub |
Velomann V30R, alloy, 24h |
|
Rear Hub |
Velomann V30R, alloy, 24h, HG11 body |
|
Rims |
Velomann V30R, alloy, 23mm channel, 30mm profile |
|
Spokes |
J-bend spokes, 2 to 1 spoke pattern |
|
Exterior Features |
Integrated seat clamp |
