2023 Bianchi Nitron 9.2 – Mountain Bike

Images:
1
2
3
4
5

Specifications

Specification

Details

Model

Nitron 9.2

Vehicle Category

Mountain Bike

Application

Cross-country racing

Starting Price (2025)

€2,550

Color Options

CK16/Black Full Glossy

Sizes

15", 17", 19", 21"

Frame & Drivetrain

Specification

Details

Frame

Nitron 29" full carbon monocoque, 1.5" tapered HT, BB92, seatpost diam. 27,2mm, HDM FD, PM 160mm carbon dropout, 12x148mm BOOST Thru axle, internal cable routing

Fork

Rock Shox SID SL 29", damper Rush RL, Debon Air 100mm w/Tall oneLoc remote left, 1.5 alu HT, 15x110mm Maxle Stealth, 32mm stanchions, magnesium lowers, PM 160mm disc mount, 44mm offset

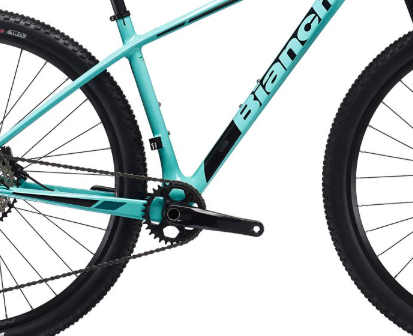

Crank

Shimano XT FC-M8100-1, 32T, 52mm chainline, crank length: 170mm (15"), 175mm (17-21")

Chain

Shimano CN-M7100 12sp

Bottom Bracket

Shimano Pressfit (41x92)

Shifters

Shimano SLX 1x12sp

Rear Derailleur

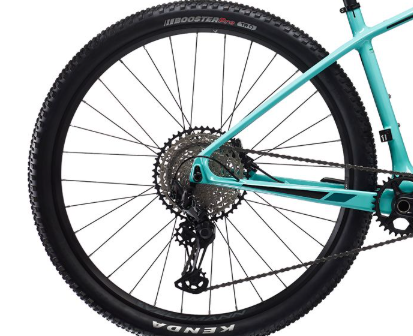

Shimano XT RD-M8100-SGS Shadow Design + 12sp

Components & Features

Specification

Details

Seating

Velomann 1285URN, manganese rail, length 277mm x width 144mm

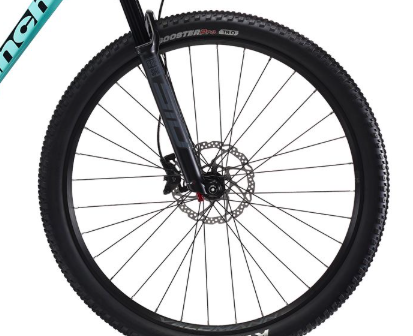

Wheels/Tyres

Velomann KOM light i25 29" 622x25, Kenda Booster Pro 29x2.20

Wheel Size

29"

Brakes

Shimano M6100, Shimano SM-RT54 CL 180mm & 160mm, Center Lock

Brake Levers

Shimano M6100

Handlebar

Velomann Flat top DB Alloy 6061-T6, width 720mm, diam. 31,8mm, 9° backsweep

Stem

Velomann, 3D forged alloy 6061 +/-7°, 1,1/8 x diam.31.8mm, ext: 70mm (15"), 80mm (17"), 90mm (19-21")

Headset

Fsa Orbit C-40

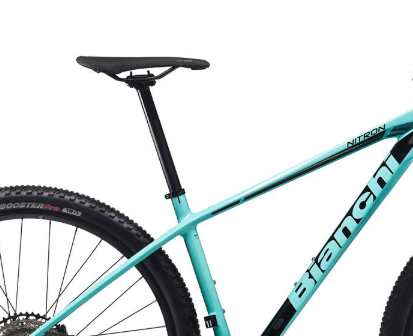

Saddle

Velomann 1285URN, manganese rail, length 277mm x width 144mm

Seatpost

Velomann, AL6061 shaft with forged head, length 350mm (15"), 400mm (17,19,21"), diam.27.2mm, 0mm seatback

Grips

T-One Rock T-GP34

Front Hub

Formula CL-811

Rear Hub

Shimano FH-MT510-B

Rims

Velomann KOM light i25 29" 622x25

Exterior Features

Carbon dropout

* All the images are screenshots!
* Data has been taken from official website (Publicly Available)!
