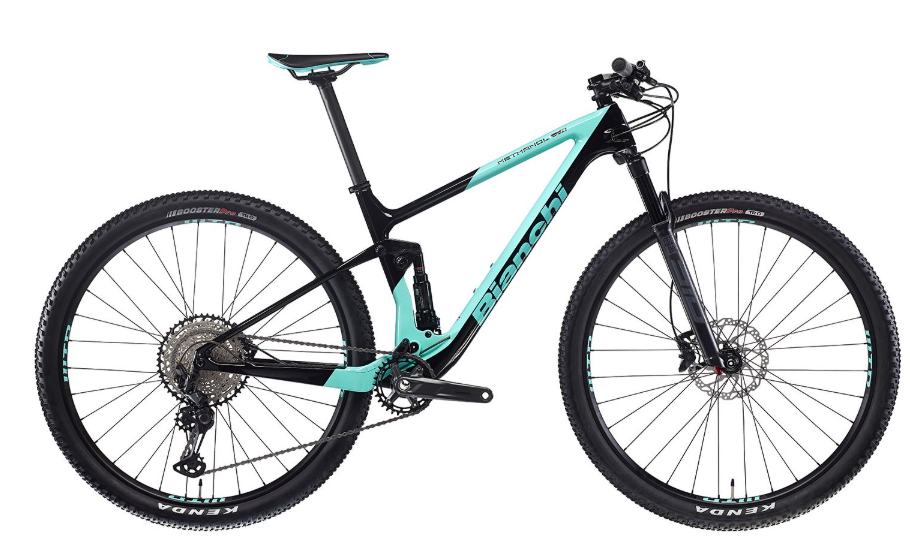

2023 Bianchi Methanol CV FS 9.3 – Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Methanol CV FS 9.3 |
|
Vehicle Category |
Mountain Bike |
|
Application |
Cross-country racing |
|
Starting Price (2025) |
€4,499 |
|
Color Options |
Celeste CK16/Black Full Glossy |
|
Sizes |
15", 17", 19", 21" |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Methanol CV FS 100mm 29" full carbon HM monocoque w/Bianchi CV, 1.5" tapered HT, BB92, only 1x drivetrain, PM 160mm carbon dropout, 12x148mm BOOST, internal cable routing, seatpost diam. 31,6mm, shock length/travel 190/40mm w/eyelets 20mm x diam.8mm |
|
Fork |
Rock Shox Sid SL Select 29", Charger RL, Solo Air 100mm |
|
Rear Shock |
Sram Sid Luxe Select + RLR, 190/40mm, Debonair, w/eyelets 20mm x diam.8mm |
|
Crank |
Shimano FC-MT511-1, 32T, 52mm chainline, crank length: 170mm (15"), 175mm (17-21") |
|
Chain |
Shimano CN-M7100, 12sp |
|
Bottom Bracket |
Shimano BB-MT500-PA Pressfit 41x92mm |
|
Shifters |
Shimano SLX 12sp |
|

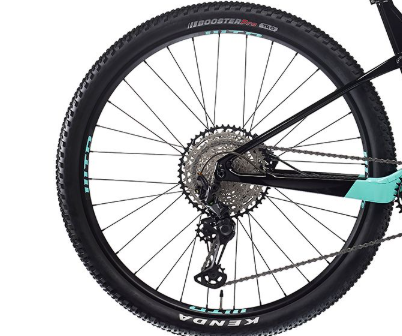

Rear Derailleur |
Shimano XT RD-M8100-SGS Shadow Design + 12sp |
Components & Features
|
Specification |
Details |
|
Seating |
Fi'zi:k Taiga, S-alloy rails |
|

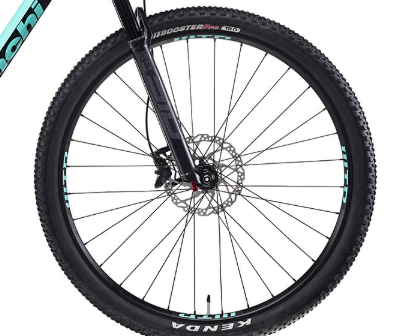

Wheels/Tyres |
Wtb KOM light i25 29, Kenda Booster Pro 29x2.20 |
|
Wheel Size |
29" |
|
Brakes |
Shimano BR-M6100, Shimano RT-54, 180mm front & 160mm rear |
|
Brake Levers |
Shimano BR-M6100 |
|
Handlebar |
Reparto Corse, double butted AL2014-T6, width 740mm, diam.31,8mm, backsweep 9° |
|
Stem |
Reparto Corse, 3D forged AL7050-T6 w/forged alloy 4-bolt faceplate +/-7º, ext: 60mm (15"), 70mm (17"), 80mm (19"), 90mm (21"), 1.1/8", diam.31.8mm |
|
Headset |
Fsa Orbit C-40 |
|
Saddle |
Fi'zi:k Taiga, S-alloy rails |
|
Seatpost |
Reparto Corse Carbon SB0, length: 350mm (15"), 400mm (17-21"), diam.31.6mm, 0mm seatback, carbon UD fiber shaft with forged head |
|
Grips |
T-One T-GP43X |
|
Front Hub |
Formula CL-811 |
|
Rear Hub |
Shimano FH-MT510-B |
|
Rims |
Wtb KOM light i25 29 |
