2023 Bianchi e-Vertic T-Type Step-Through DEORE – E-Bike
Specifications
|
Specification |
Details |
|
Model |
e-Vertic T-Type Step-Through DEORE |
|
Vehicle Category |
E-Bike |
|
Application |
Touring |
|
Starting Price (2025) |
€2,799 |
|
Color Options |
Gray |
|
Sizes |
43cm, 48cm, 53cm |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
e-VERTIC T-Type Step-through ALU, 9x135 mm quick release dropouts, Post mount 180 disc brake type, Internal cable routing in steerer, 625Wh compatible |
|
Fork |
Suntour NVX30 NLO DS 29", 100mm travel, 1,1/8" HT diritto, senza QR 9x100, minimum 160mm rotor, maximum 180mm rotor, 30mm stanchions |
|

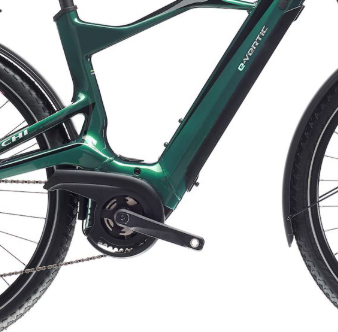

Crank |
FSA CK-220, Alloy, 170mm, FSA Steel Chainring 38T |
|
Chain |
KMC e10S NPBK |
|
Bottom Bracket |
Included in the motor |
|
Shifters |
Shimano, SL-M4100-R, DEORE, 10-SPEED |
|
Rear Derailleur |
Shimano, RD-M4120, DEORE, SGS 10/11-SPEED |
Components & Features
|
Specification |
Details |
|
Seating |
Velomann, size 270x162mm, 385gr. |
|
Fuel Type |
Electric (Bosch Powertube 500Wh) |
|
Cargo Capacity |
Racktime, 28", Max load 25Kg |
|

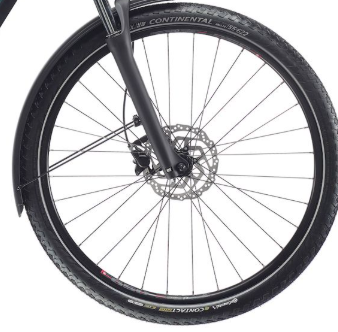

Wheels/Tyres |
EBIKE 650 TR 28" - ETRTO 622 x 23C, 32hole, height 18mm, Front hub: Shimano, HB-TX505, 32H OLD:100MM AXLE:108MM, QR:133MM, Rear hub: Shimano, FH-TX505-8, 32H 8/9/10/11-SPEED, OLD:135MM, AXLE:146MM, QR:170MM, Continental 55-622 eContact Plus |
|
Wheel Size |
28" |
|
Brakes |
Promax, DSK-925, Promax DSK-925, 180mm, center lock |
|
Brake Levers |
Promax, included in the brake |
|
Handlebar |
Velomann 31.8/680mm, RISE 20MM, SWEEP 15° |
|
Stem |
Velomann aluminium adjustable, integrated cable routing, Barbore 31,8 mm, Extension 90 mm |
|
Headset |
Acros Headset 1,5" top / 1,5", integrated cable routing |
|

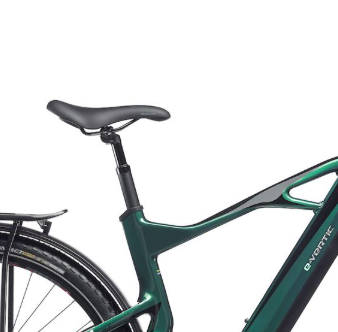

Saddle |
Velomann, size 270x162mm, 385gr. |
|
Seatpost |
Velomann travel 50mm, suspension seatpost 300mm for size 43, 350mm for sizes 48, 53 |
|
Grips |
Herrmans GRIPset Oxy |
|
Front Hub |
Shimano, HB-TX505, 32H OLD:100MM AXLE:108MM, QR:133MM |
|

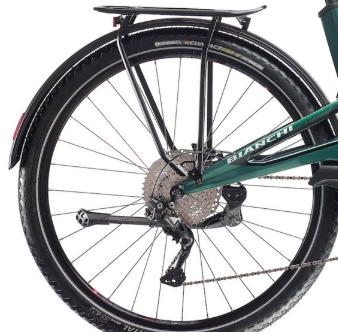

Rear Hub |
Shimano, FH-TX505-8, 32H 8/9/10/11-SPEED, OLD:135MM, AXLE:146MM, QR:170MM |
|
Rims |
EBIKE 650 TR 28" - ETRTO 622 x 23C, 32hole, height 18mm |
|
Spokes |
32 hole |
|
Pedals |
VP, axle 7mm boron steel, EPB system, size 112x83,3mm, reflector included |
|
Exterior Features |
Racktime Alumee 62mm, 28", Bianchi Custom kickstand, Racktime, 28", Max load 25Kg, Lezyne, 65 lux front light, Trelock RearLight MudGuard Ebike6-12V |
