Specification

Details

Model

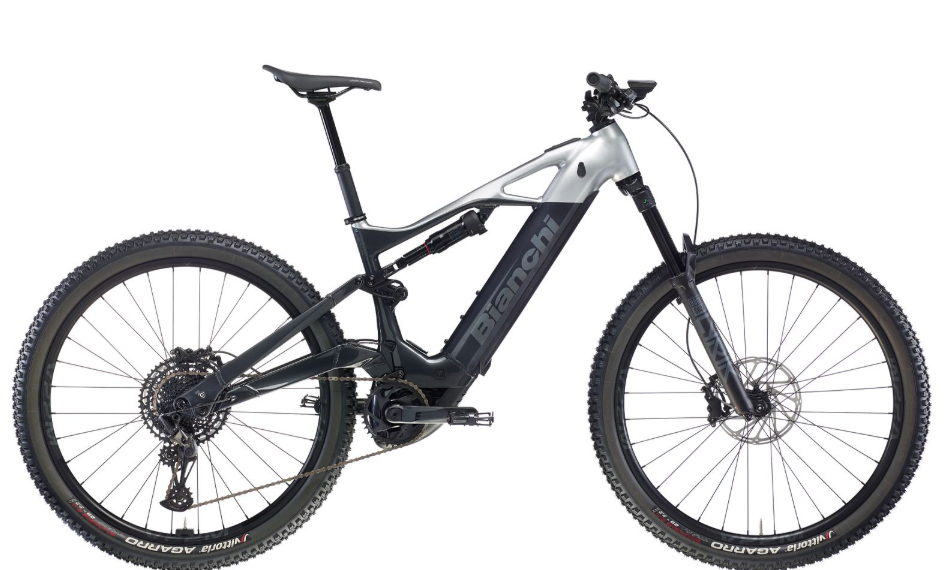

E-Vertic FX-Type 9.1

Vehicle Category

E-Bike

Application

Trail riding

Starting Price (2025)

€5,590

Color Options

Graphite/Grey Silver - Iridescent [Full Glossy]

Sizes

40cm, 44cm, 48cm, 53cm

Specification

Details

Frame

Bianchi e-Vertic FX, aluminium, 12x148 mm rear thru axle, Post mount 180 disc brake type, Front travel 150 mm, Rear travel 140 mm, Internal cable routing in steerer, 800 Wh battery compatible

Fork

RockShox Lyrik 29", 150 mm travel, Steerer tube 1,5" tapered, 35 mm stanchions, Maxle Stealth 15x110 Boost axle, Rotor: minimum 180 mm, maximum 220 mm, 44 mm rake

Rear Shock

RockShox Deluxe Select, 210/52.5 mm for size SM, 210/55 mm for sizes MD, LG, XL, Debonair Progressive, Damper Type R, Rebound tune R55, Compression tune C34, External rebound adjustment

Crank

FSA CK-745/IS, Aluminium forged, Crank length: 165 mm

Chain

Sram SX Eagle, 12 sp

Shifters

Sram SX Eagle, single click

Rear Derailleur

Sram SX Eagle, 12 sp

Specification

Details

Seating

Velomann Gnd Full-fit Start Up, Carbon-steel rail, 262 mm x 145 mm

Fuel Type

Electric (Bosch Powertube 800 Wh)

Wheels/Tyres

Velomann Rim: V22M, 622x28, 32 hole, Tubeless ready, Hubs: Shimano TC500 thru axle, Pirelli Scorpion 29x2.6 E-MTB R, 60TPI

Wheel Size

29"

Brakes

Sram DB4, 4 pistons calipers, mineral oil, Sram Centerline, 200 mm front/rear

Brake Levers

Sram DB4, included in the brake

Handlebar

Velomann Aluminum, Rise 18 mm, Barbore 35 mm, Size: 780 mm

Stem

Velomann 1" 1/8, 35 mm barbore, Size: 50 mm

Headset

FSA 1.5" for tapered fork steerer, Dual side internal cable routing, Head Block system

Saddle

Velomann Gnd Full-fit Start Up, Carbon-steel rail, 262 mm x 145 mm

Seatpost

Velomann, Diameter 31.6 mm, Internal cable routing, length: 100 mm (SM), 125 mm (MD), 150 mm (LG/XL)

Grips

Herrmans Luna lock 130 mm

Front Hub

Shimano TC500 thru axle

Rear Hub

Shimano TC500 thru axle

Rims

Velomann Rim: V22M, 622x28, 32 hole

Spokes

32 hole
