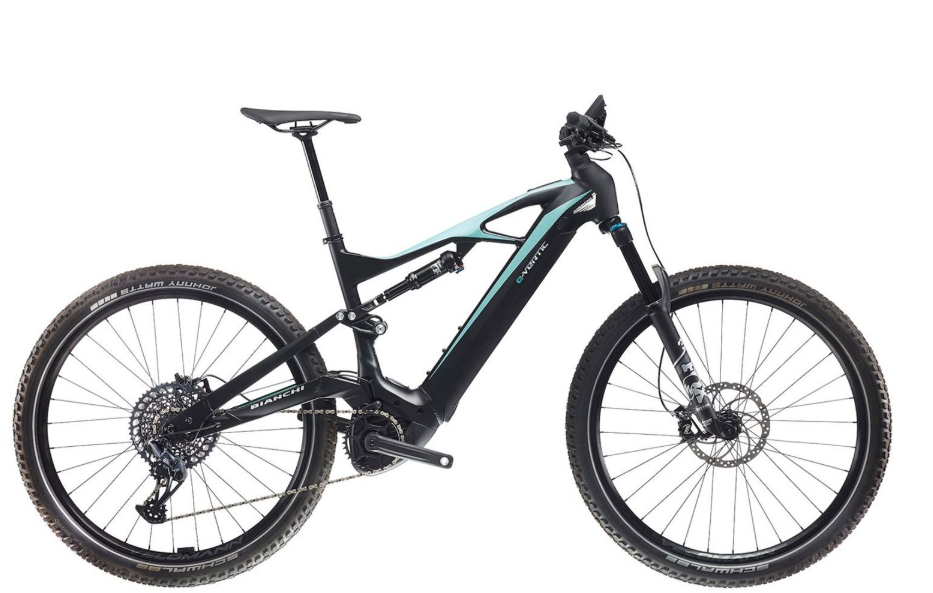

2023 Bianchi e-Vertic FX-Type – E-Bike
Specifications
|
Specification |
Details |
|
Model |
e-Vertic FX-Type |
|
Vehicle Category |
E-Bike |
|
Application |
Trail riding |
|
Starting Price (2025) |
€4,799 |
|
Color Options |
Graphite Race Matt / CK16 Matt |
|
Sizes |
43cm, 48cm, 53cm |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
e-VERTIC FX-Type, 12x148 mm thru axle dropouts, Post mount 180 disc brake type, 140mm travel front & rear, Internal cable routing in steerer |
|
Fork |
RockShox 35 Silver TK 29", 140mm travel, 1.5" tapered HT, Maxle Stealth 15x110mm BOOST axle, minimum 180mm rotor, maximum 220mm rotor, 44mm rake, 61mm crown, Solo Air |
|
Rear Shock |
RockShox Deluxe Select, 210/55, DebonAir Progressive, Damper Type R, Compression tune L, Lockout Force n/a, black finish tube, external rebound adjustment, Volume reducer 0 Neg 2 Pos |
|
Crank |
FSA E-Bike Diecast Crankset ISIS, 165mm, Die cast aluminum, Sram X-SYNC 2 Eagle Chainring, 34T |
|
Chain |
Sram SX EAGLE, 12sp |
|
Bottom Bracket |
Included in the motor |
|
Shifters |
Sram SX EAGLE 1x12 |
|
Rear Derailleur |
Sram SX Eagle, 12sp |
Components & Features
|
Specification |
Details |
|
Seating |
Velomann Gnd Full-fit Start Up, carbon steel rail, 262x145 |
|
Fuel Type |
Electric (Bosch PowerTube 750Wh) |
|
Wheels/Tyres |
Velomann Tubeless Ready 29", 622x30, 32 hole, Front hub: Formula CL-811 for Center Lock, 32h, 15x110mm TA, Rear hub: Formula CL-3248 for Center Lock, 32h, 12x148mm TA, Vittoria e-Barzo 29x2.6 XC-Trail TNT |
|
Wheel Size |
29" |
|
Brakes |
Shimano, BL-M4100, BR-MT420, 4 pistons, Shimano, SM-RT30, L 203MM |
|
Brake Levers |
Shimano BL-M4100, included in the brake |
|
Handlebar |
Velomann, width 780mm, diam.35mm, rise 18mm, backsweep 8° |
|
Stem |
Velomann, 50mm, 35mm, 1"1/8 |
|
Headset |
Acros AZX-670 1.8" top / 1.5", internal cable routing |
|
Saddle |
Velomann Gnd Full-fit Start Up, carbon steel rail, 262x145 |
|
Seatpost |
Velomann, diam.31,6mm, internal remote cable routing, 120mm (43cm), 150mm (48cm, 53cm) |
|
Grips |
T-One Rock T-GP34 single lock grip, TPR, 130mm, plastic inner body, aluminium clamp |
|
Front Hub |
Formula CL-811 for Center Lock, 32h, 15x110mm TA |
|
Rear Hub |
Formula CL-3248 for Center Lock, 32h, 12x148mm TA |
|
Rims |
Velomann Tubeless Ready 29", 622x30, 32 hole |
|
Spokes |
32 hole |
