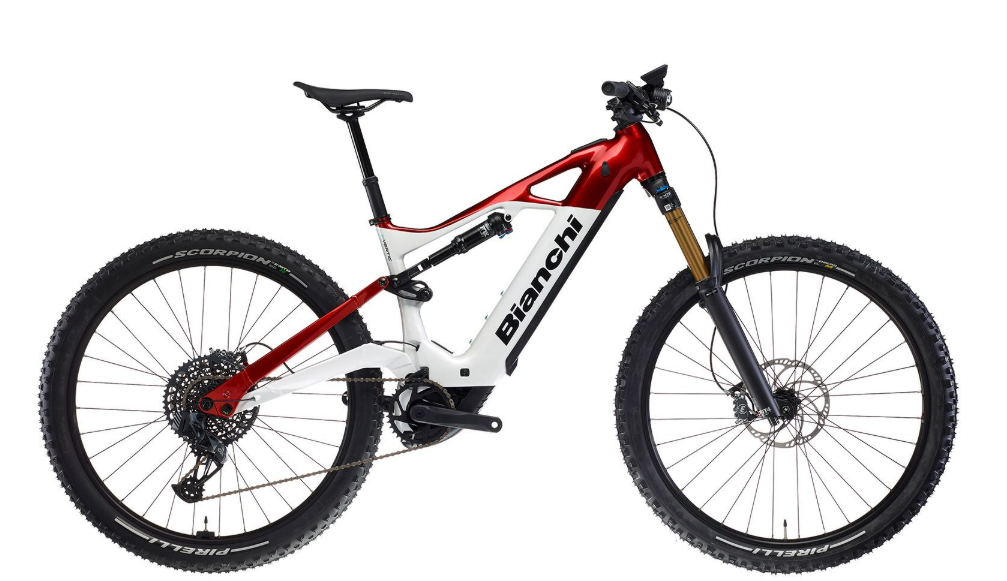

2026 Bianchi E-Vertic FX – E-Bike
Specifications
|
Specification |
Details |
|
Model |
E-Vertic FX |
|
Vehicle Category |
E-Bike |
|
Application |
Trail riding |
|
Starting Price (2025) |
€6,990 |
|
Color Options |
Chrome Orange/White - Graphite |
|
Sizes |
44cm, 48cm, 53cm |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Bianchi e-Vertic FX, aluminium, 12x148 mm rear thru axle, Post mount 180 disc brake type, Front travel 150 mm, Rear travel 140 mm, Internal cable routing in steerer, 800 Wh battery compatible |
|
Fork |
Fox 38 Float Factory, Kashima coating, 150 mm travel, 1,5" tapered steerer, Kabolt 15x110 mm axle, Minimum rotor: 180 mm, Maximum rotor: 230 mm, FIT4 cartridge, 3 position lever |
|
Rear Shock |
Fox Float DPS Performance, 210/55, EVOL |
|
Crank |
Crank length: 165 mm |
|
Chain |
Sram SX Eagle, 12 sp |
|
Bottom Bracket |
Not specified |
|
Shifters |
Sram GX AXS Eagle |
|
Rear Derailleur |

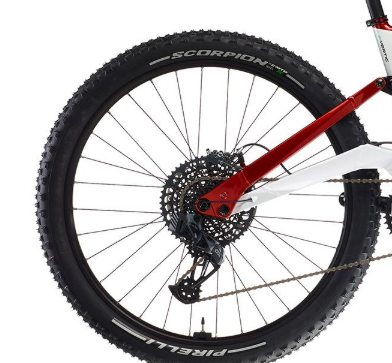

Sram GX AXS Eagle 12sp |
Components & Features
|
Specification |
Details |
|
Seating |
Velomann Gnd Full-fit Start Up, Carbon-steel rail, 262 mm x 145 mm |
|
Fuel Type |

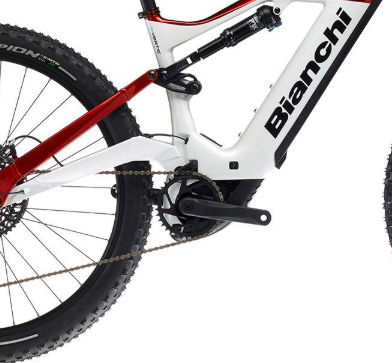

Electric (Bosch Powertube 800 Wh) |
|
Wheels/Tyres |

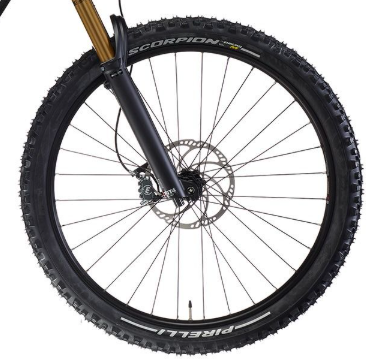

Velomann 622x30, 32 hole, Front hub: Shimano HB-TC500, Rear hub: Shimano FH-MT510, Pirelli Scorpion 29x2.6 E-MTB, 60TPI |
|
Wheel Size |
29" |
|
Brakes |
Magura MT7, 4 piston, Magura MDR-C, Centerlock, 203 mm front/rear |
|
Brake Levers |
Magura MT7, included in the brake |
|
Handlebar |
FSA Comet HB-XC-302L, Rise 15 mm, Diameter 35 mm, Width 800 mm |
|
Stem |
FSA Comet ST-OS-173, Diameter 28.6 mm, Barbore 35 mm, Size: 50 mm |
|
Headset |
FSA 1.5" for tapered fork steerer, Dual side internal cable routing, Head Block system |
|

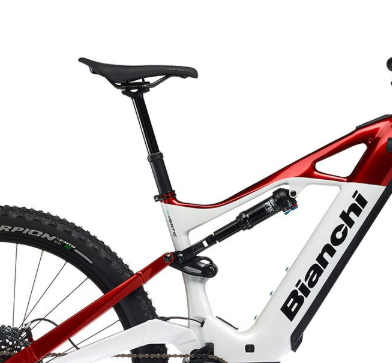

Saddle |
Velomann Gnd Full-fit Start Up, Carbon-steel rail, 262 mm x 145 mm |
|
Seatpost |
Velomann Dropper, Diameter 31.6 mm, internal cable routing, length: 125 mm (MD), 150 mm (LG/XL) |
|
Grips |
Herrmans Luna lock 130 mm |
|
Front Hub |
Shimano HB-TC500 |
|
Rear Hub |
Shimano FH-MT510 |
|
Rims |
Velomann 622x30, 32 hole |
|
Spokes |
32 hole |
