Specification

Details

Model

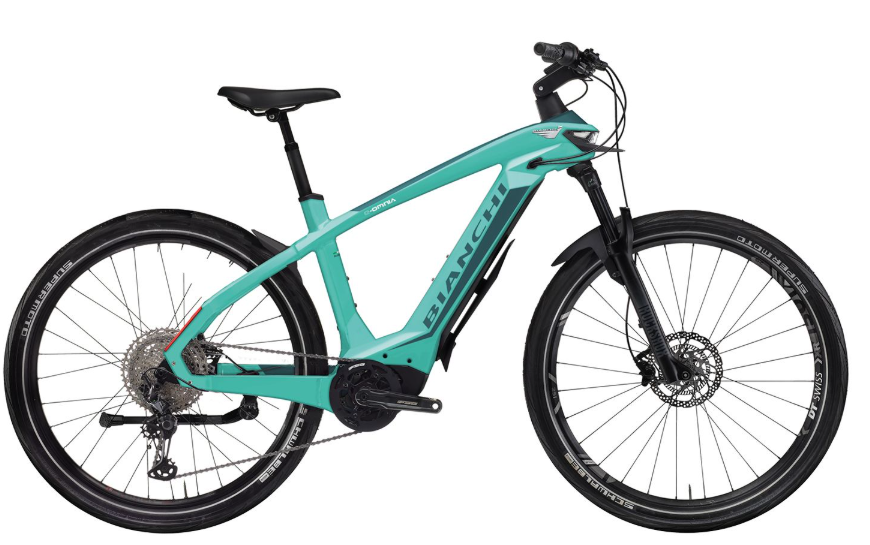

e-Omnia X-Type

Vehicle Category

E-Bike

Application

Trail riding

Starting Price (2025)

€2,749

Color Options

Sage green / Dark sage green full matt

Sizes

43cm, 48cm, 53cm

Specification

Details

Frame

E-MTB OMNIA X Type HT Alu 29" BIANCHI 120mm front suspended, 1.5" tapered HT, seatpost diam.31,6mm, integrated seat clamp, PM 180mm dropout thru axle 12x148mm, internal cable routing inside DT

Fork

Sram XCR34 AIR Boost LOR DS 29" 120mm, 1.5" tapered HT, 34mm black stanchions, PM 180mm disc mount, 15X110 TA 15AH2-110

Crank

FSA CK-320/IS Die cast AL crank, 165 mm

Chain

KMC e11T EPT, 11sp

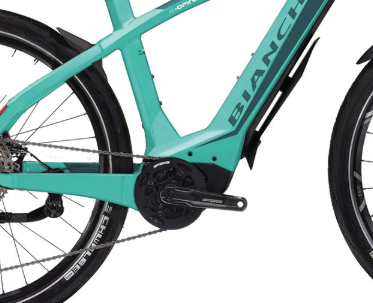

Bottom Bracket

Included in the motor

Shifters

Shimano, SL-M5100-R, DEORE, 11-SPEED

Rear Derailleur

Shimano, RD-M5100, DEORE, SGS 11-SPEED

Specification

Details

Seating

Velomann, carbon steel rail, 262x145

Fuel Type

Electric (Internal battery 630Wh)

Wheels/Tyres

Velomann 29”, 30mm 29”, 489g, 32 hole drilling, Disc Only, Front hub: Formula CL-811 for Center Lock, 32h, 15x110mm TA, Rear hub: Formula CL-3248 for Center Lock, 32h, 12x148mm TA, HG, Kenda Booster 29x2.6, 30tpi

Wheel Size

29"

Brakes

Shimano, BL-M4100, BR-MT410, RESIN PAD, Shimano, SM-RT10, M 180MM, W/LOCK RING

Brake Levers

Shimano BL-M4100, included in the brake

Handlebar

Velomann, width 740mm, diam.31.8mm, rise 15mm, backsweep 9°

Stem

Velomann, 1,1/8 x diam.31,8mm, 55mm

Headset

FSA NO.55R/558 1.5"

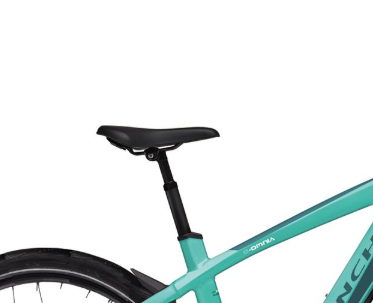

Saddle

Velomann, carbon steel rail, 262x145

Seatpost

Velomann, length 350mm for SM size and 400mm for MD, LG, diam.31,6mm, 0mm seatback

Grips

T-One Rock T-GP34

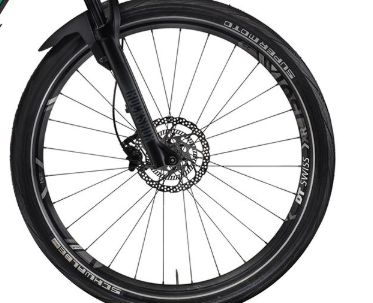

Front Hub

Formula CL-811 for Center Lock, 32h, 15x110mm TA

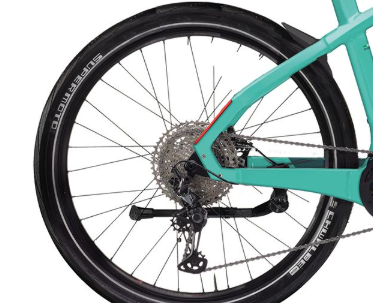

Rear Hub

Formula CL-3248 for Center Lock, 32h, 12x148mm TA, HG

Rims

Velomann 29”, 30mm 29”, 489g, 32 hole drilling

Spokes

32 hole

Exterior Features

Spanninga custom integrated front light, 40 lux, Spanninga custom integrated rear light
