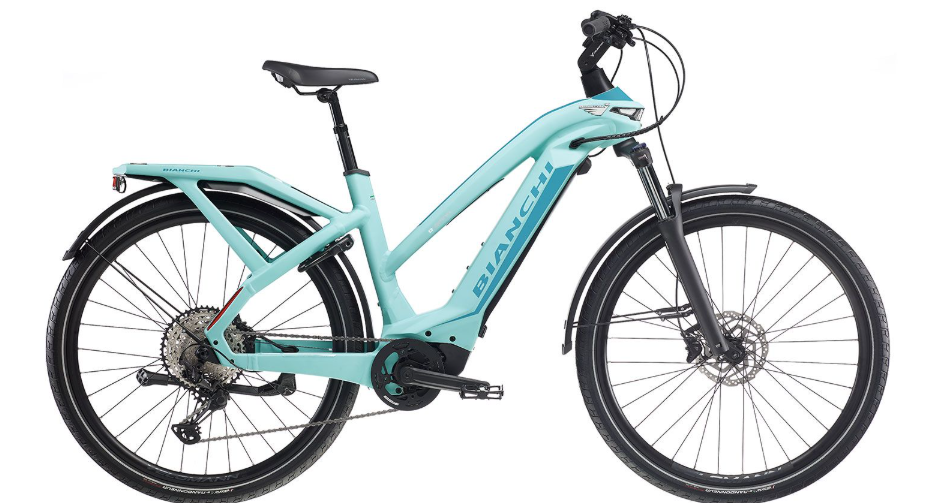

2023 Bianchi e-Omnia T-Type Step-Through – E-Bike
Specifications
|
Specification |
Details |
|
Model |
e-Omnia T-Type Step-Through |
|
Vehicle Category |
E-Bike |
|
Application |
Touring |
|
Starting Price (2025) |
€3,599 |
|
Color Options |
CK16 / dark CK16 |
|
Sizes |
43cm, 48cm, 53cm |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
E-OMNIA T-Type Step-through chain drive ALU, 12x148mm thru-axle dropouts (special dropout for external derailleur), Post mount 180 disc brake type, Internal cable routing in DT, Frame lock compatible, 625Wh compatible, custom rear carrier integrated |
|
Fork |
Suntour XCM34-Boost NLO DS 29", 120mm travel, 1.5" tapered HT, w/ 15AH2-110 TA, minimum 160mm rotor, maximum 203mm rotor, 34mm stanchions |
|
Crank |
FSA CK-320, Alloy, 170mm, FSA MegaTooth Chainring 38T |
|
Chain |
Shimano, CN-M6100 |
|
Bottom Bracket |
Included in the motor |
|
Shifters |
Shimano, SL-M6100-R, 12-SPEED |
|
Rear Derailleur |
Shimano, RD-M8100, XT, SGS 12-SPEED |
Components & Features
|
Specification |
Details |
|
Seating |
Velomann, 285x187mm, 399gr |
|
Fuel Type |
Electric (Bosch Powertube 625Wh) |
|
Cargo Capacity |
Custom rear carrier integrated into the frame design, load 35kg |
|
Wheels/Tyres |
Velomann E-Sport Tubeless Ready 29", 25-622, 32 hole, Front hub: Formula CL-811 for Center Lock, 32h, 15x110mm TA, Rear hub: Shimano, FH-MT410-B, 12-SPEED FOR 12MM THRU TYPE AXLE, 32H OLD:148MM, Vittoria e-Randonneur, 50-622 |
|
Wheel Size |
29" |
|
Brakes |
Promax, DSK-925, Promax DSK-925, 180mm, center lock |
|
Brake Levers |
Promax, included in the brake |
|
Handlebar |
Velomann 31.8/680mm, RISE 20MM, SWEEP 15° |
|
Stem |
Velomann 35,3D FORGED 0°>90° L70MM |
|
Headset |
FSA NO.55R/558 1.5" |
|
Saddle |
Velomann, 285x187mm, 399gr |
|
Seatpost |
Velomann 31.6*350, suspension seatpost |
|
Grips |
Herrmans Grip |
|
Front Hub |
Formula CL-811 for Center Lock, 32h, 15x110mm TA |
|
Rear Hub |
Shimano, FH-MT410-B, 12-SPEED FOR 12MM THRU TYPE AXLE, 32H OLD:148MM |
|
Rims |
Velomann E-Sport Tubeless Ready 29", 25-622, 32 hole |
|
Spokes |
32 hole |
|
Pedals |
VP, axle 7mm boron steel, EPB system size 116x103mm with reflector, ED black |
|
Exterior Features |
SKS PET Mudguards A65 R /28", Velomann kickstand load 35kg, custom rear carrier integrated into the frame design, Spanninga custom integrated front light, 40 lux, Spanninga custom integrated rear light |
