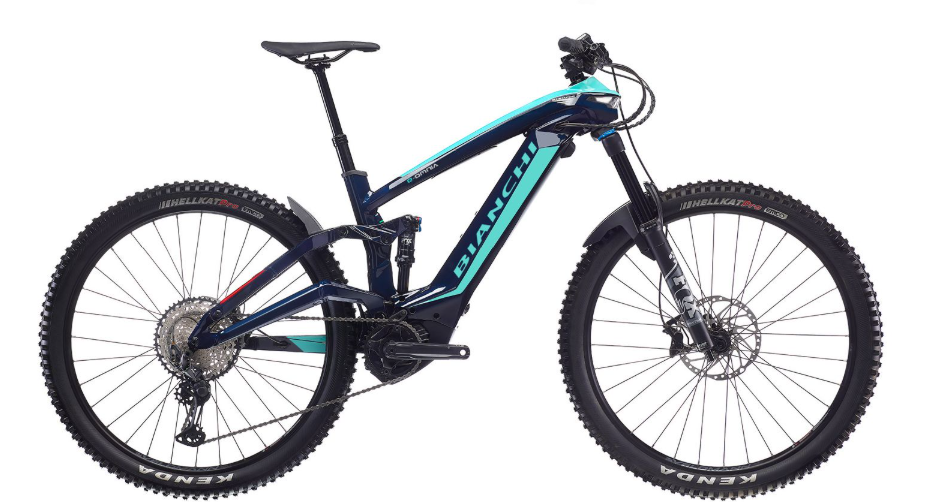

2024 Bianchi e-Omnia FX-Type – E-Bike
Specifications
|
Specification |
Details |
|
Model |
e-Omnia FX-Type |
|
Vehicle Category |
E-Bike |
|
Application |
Trail riding |
|
Starting Price (2025) |
€4,050 |
|
Color Options |
Dark graphite / Grey full matt |
|
Sizes |
43cm, 48cm, 53cm |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
e-OMNIA FX-Type ALU, 12x148 mm thru axle dropouts, Post mount 180 disc brake type, 160mm travel front, 150mm travel rear |
|

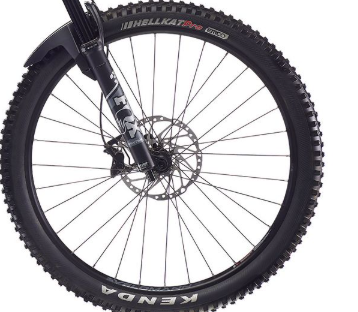

Fork |
Sram Rock Shox YARI RC 29B" Solo Air, 150mm, Extl rebnd, MOTION Control Damper, 1.1/5" Alu HT, 15x110 BOOST, 35mm stanchions, PM 180mm disc mount, Maxle Stealth, 42mm offset |
|
Rear Shock |
Sram Deluxe Select+ RL, 185/55 TR, external rebound adjustment, Harware 8X25mm |
|

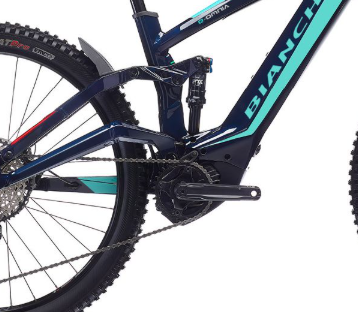

Crank |
FSA CK-762/IS Forged Alu crank, 165 mm |
|
Chain |
Sram SX EAGLE, 12sp |
|
Bottom Bracket |
Included in the motor |
|
Shifters |
Sram SX EAGLE 1x12 |
|

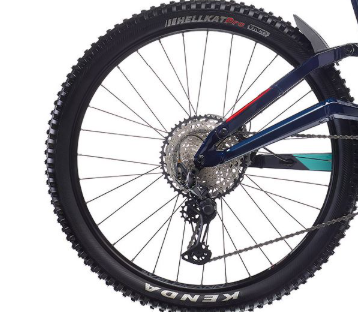

Rear Derailleur |
Sram GX Eagle 12s |
Components & Features
|
Specification |
Details |
|
Seating |
Velomann, carbon steel rail, 262x145 |
|
Fuel Type |
Electric (Internal battery 630Wh) |
|
Wheels/Tyres |
Velomann Tubeless Ready 29", 622x30, 32 hole (front), Velomann Tubeless Ready 27.5", 584x30, 32 hole (rear), Front hub: Formula CL-811 for Center Lock, 32h, 15x110mm TA, Rear hub: Formula CL-3248 for Center Lock, 32h, 12x148mm TA, HG, Front: Pirelli Scorpion E-MTB M 29x2.6 TLR, 60tpi, Hyperwall, 65-622, Rear: Pirelli Scorpion E-MTB R 27.5x2.6 TLR, 60tpi, Hyperwall, 65-584 |
|
Wheel Size |
29" (front), 27.5" (rear) |
|
Brakes |
Shimano, BL-MT501, BR-MT520, RESIN PAD, Shimano, SM-RT30, L 203MM, W/LOCK RING |
|
Brake Levers |
Shimano BL-MT501, included in the brake |
|
Handlebar |
Velomann, width 780mm, diam.35mm, rise 18mm, backsweep 8° |
|
Stem |
Velomann, 1,1/8 x diam.35mm, 50mm |
|
Headset |
FSA NO.55R/558 1.5" |
|
Saddle |
Velomann, carbon steel rail, 262x145 |
|

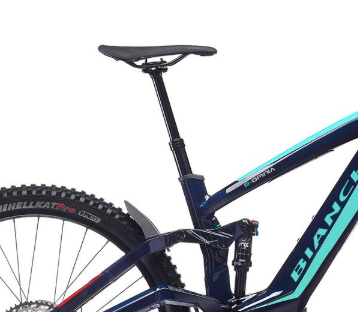

Seatpost |
Velomann diam.31,6mm, internal remote cable routing, 120mm/150mm travel |
|
Grips |
T-One Rock T-GP34 |
|
Front Hub |
Formula CL-811 for Center Lock, 32h, 15x110mm TA |
|
Rear Hub |
Formula CL-3248 for Center Lock, 32h, 12x148mm TA, HG |
|
Rims |
Velomann Tubeless Ready 29", 622x30, 32 hole (front), Velomann Tubeless Ready 27.5", 584x30, 32 hole (rear) |
|
Spokes |
32 hole |
|
Exterior Features |
Spanninga custom integrated front light, 40 lux, Spanninga custom integrated rear light |
