Specification

Details

Model

e-Oltre 105 2x12sp

Vehicle Category

E-Bike

Application

Road cycling

Starting Price (2025)

€5,090

Sizes

47cm, 50cm, 53cm, 55cm, 57cm, 59cm, 61cm

Specification

Details

Frame

Oltre e-road carbon, fully internal cable routing, mechanic and electronic groupsets, BB pressfit, disc brake flat mount, OLD 135mm

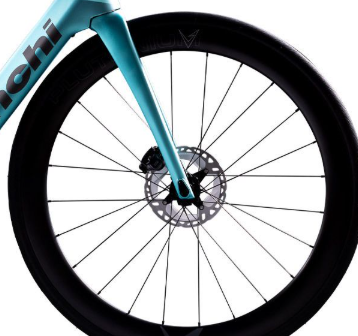

Fork

Full carbon aero road ICR, integrated head, disc brake flat mount, thru axle 12x100

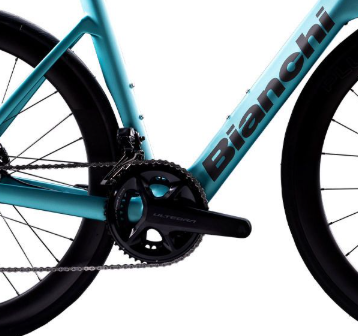

Crank

Shimano 105 12 speed, FC-R7100, hollowtech 2, 50x34T, Crank Length: 170mm (47-53cm), 172.5mm (55-57cm), 175mm (59-61cm)

Chain

Shimano 105 12 speed

Bottom Bracket

Mahle torque sensor BB

Shifters

Shimano 105 12 speed

Front Derailleur

Shimano 105 12 speed FD-R7100

Rear Derailleur

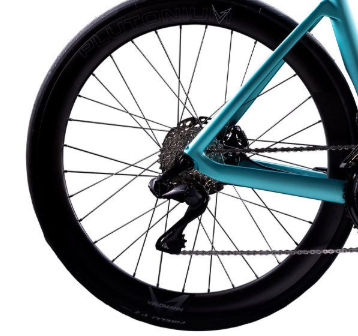

Shimano 105 12 speed RD-R7100

Specification

Details

Seating

Velomann Gnd Full-fit, carbon steel rail, 262x145mm

Fuel Type

Electric (Mahle iX250w Battery Pack)

Wheels/Tyres

Velomann Plutonium, carbon, 21-622, profile 50mm, 24hole front, 32 hole rear, tubeless ready, Vittoria Rubino V 28-622 TLR, G2.0, 100TPI

Wheel Size

28"

Brakes

Shimano 105, included in the shifter, Shimano RT86 6bolt, 160mm rear, Shimano MT800, centerlock 160mm front

Brake Levers

Shimano 105, included in the shifter

Handlebar

Velomann Aero Compact, alloy 6061 diam. 31,8mm, reach 74mm, drop 116mm, Size: 400mm (47-53cm), 420mm (55-59cm), 440mm (61cm)

Stem

Velomann Viper, Alloy 6061, raise - 7°, semi-integrated cable routing, Ext: 90mm (47cm), 100mm (50-53cm), 110mm (55-57cm), 120mm (59-61cm)

Headset

Acros / FSA, internal cable routing ICR

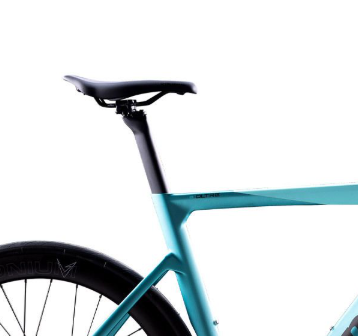

Saddle

Velomann Gnd Full-fit, carbon steel rail, 262x145mm

Seatpost

Full carbon aero shape, special Clamp type with alloy head adjustable and reversible +/- 35mm, lengths: 300mm (47-50cm), 350mm (53-61cm)

Grips

Bianchi Hexagon tape, 2.5mm thickness, black

Front Hub

Velomann Plutonium, 24 hole

Rear Hub

Velomann Plutonium, 32 hole

Rims

Velomann Plutonium, carbon, 21-622, profile 50mm

Spokes

24 hole front, 32 hole rear
