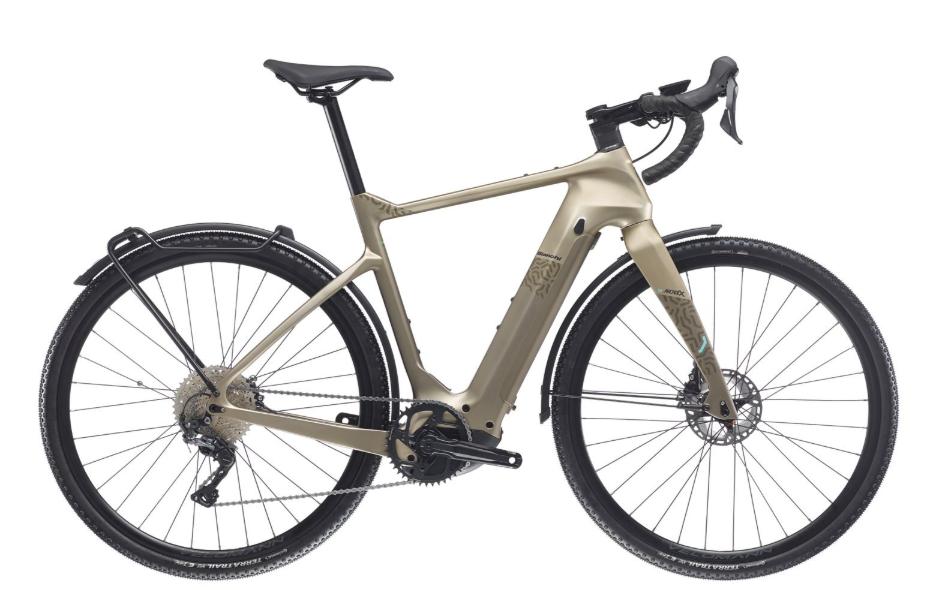

2024 Bianchi e-Arcadex Tourer – Electric Gravel Bike

Images:

1

2

3

4

5

Specifications

Specification	Details
Model	e-Arcadex Tourer
Vehicle Category	Electric Gravel Bike
Application	Touring
Starting Price (2025)	€5,349
Color Options	Desert
Sizes	47cm, 51cm, 55cm, 58cm, 61cm

Frame & Drivetrain

Specification	Details
Frame	e-Arcadex Carbon, 12x142mm thru axle
Fork	Full Carbon 1.5", disc brake flat mount, 12x100mm thru axle
Crank	FSA E-bike Crankset, Hollow Alloy 42T
Chain	SRAM Apex
Bottom Bracket	Included in the Drive unit
Shifters	SRAM Apex Disc Brake
Rear Derailleur	SRAM Apex XPLR

Components & Features

Specification	Details
Seating	Velomann, carbon steel rail
Fuel Type	Electric (Bosch Powertube 500 Wh)

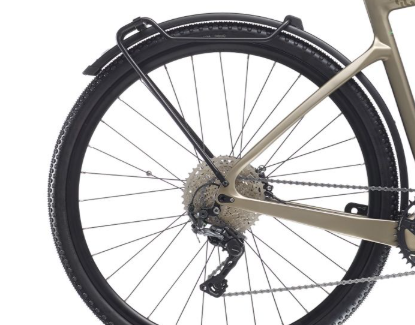

Cargo Capacity	Rear carrier
Wheels/Tyres	Velomann, 24.5mm profile, Continental 40-622 Terra Trail
Wheel Size	700c
Brakes	SRAM Apex, hydraulic disc, 160mm rotors
Brake Levers	SRAM Apex Disc Brake
Handlebar	Velomann Aluminum 6061, reach 70mm, flare 16°
Stem	Velomann, Alloy 6061, raise 0°
Headset	FSA SMR HS with 1-1/8”
Saddle	Velomann, carbon steel rail
Seatpost	Velomann Alloy shaft, 15mm offset, 31.6mm
Grips	La Spirale Ribbon cork
Front Hub	Formula CL-712 road disc, alloy, center lock
Rear Hub	Formula RXC-142S road disc, center lock
Rims	Velomann, 24.5mm profile
Spokes	J-bend
Exterior Features	Mudguards, rear carrier, front and rear lights

* All the images are screenshots!
* Data has been taken from official website (Publicly Available)!
