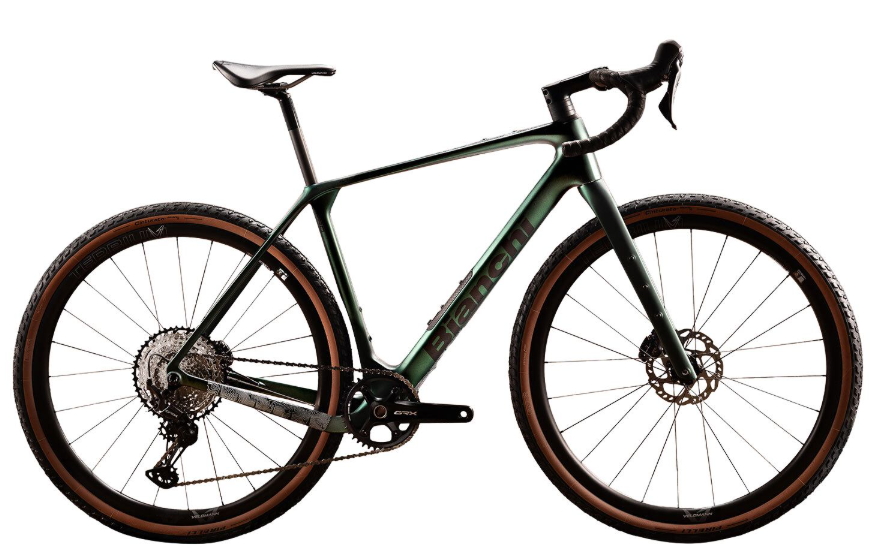

2025 Bianchi Arcadex PRO GRX 820/822 disc 1x12sp – Gravel Bike
Specifications
|
Specification |
Details |
|
Model |
Arcadex PRO GRX 820/822 disc 1x12sp |
|
Vehicle Category |
Gravel Bike |
|
Application |
Adventure riding |
|
Starting Price (2025) |
€4,250 |
|
Color Options |
AW |
|
Sizes |
XS (47cm), SM (51cm), MD (55cm), LG (58cm), XL (61cm) |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Arcadex PRO carbon, disc brake flat mount, BB-PressFit 86.5x41, 12x142mm thru axle |
|
Fork |
Bianchi Arcadex carbon, disc brake flat mount, 1 1/8" steerer, 12x100mm thru axle |
|

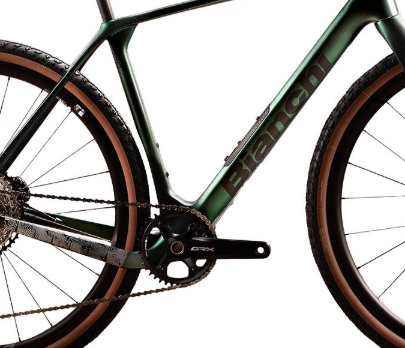

Crank |
Shimano GRX 820, FC-RX820-1, 40T |
|
Chain |
Shimano CN-M7100, 12-speed |
|
Bottom Bracket |
Shimano SM-BB72-41B, press fit |
|
Shifters |
Shimano GRX 820, ST/BL-RX820 |
|

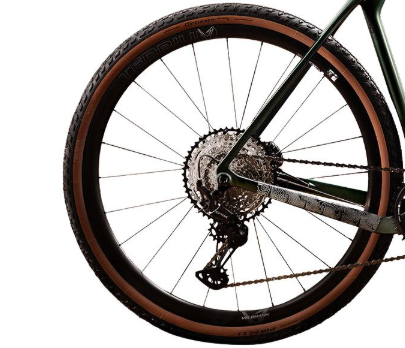

Rear Derailleur |
Shimano GRX 822, RD-RX822 |
Components & Features
|
Specification |
Details |
|
Seating |
Velomann MITORA 149 H1, AISI steel rails |
|
Wheels/Tyres |
Pirelli Cinturato™ GRAVEL M Classic, 45-622 |
|
Wheel Size |
700c |
|

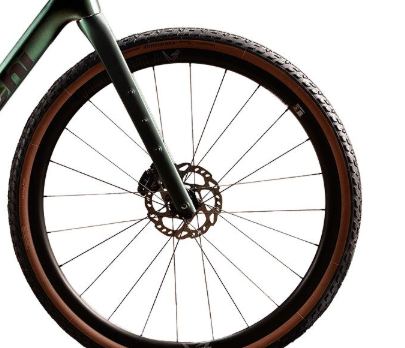

Brakes |
Shimano BR-RX820, hydraulic disc, 160mm rotors |
|
Brake Levers |
Shimano GRX 820, ST/BL-RX820 |
|
Handlebar |
Velomann Gravel ICR Alloy, flare 16°, drop 130mm, reach 70mm |
|
Stem |
Velomann AICR Alloy, rise -2°, 1-1/8" steerer |
|
Headset |
Bianchi Custom Acros ICR |
|

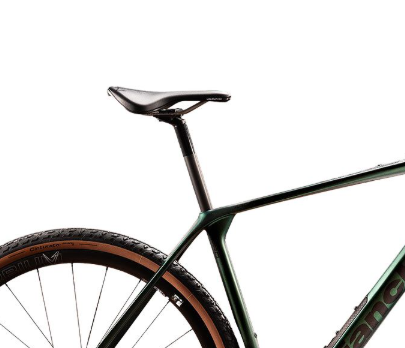

Saddle |
Velomann MITORA 149 H1, AISI steel rails |
|
Seatpost |
Velomann Carbon UD, 27.2mm |
|
Grips |
Bianchi Hexagon tape, 2.5mm thickness, full black |
