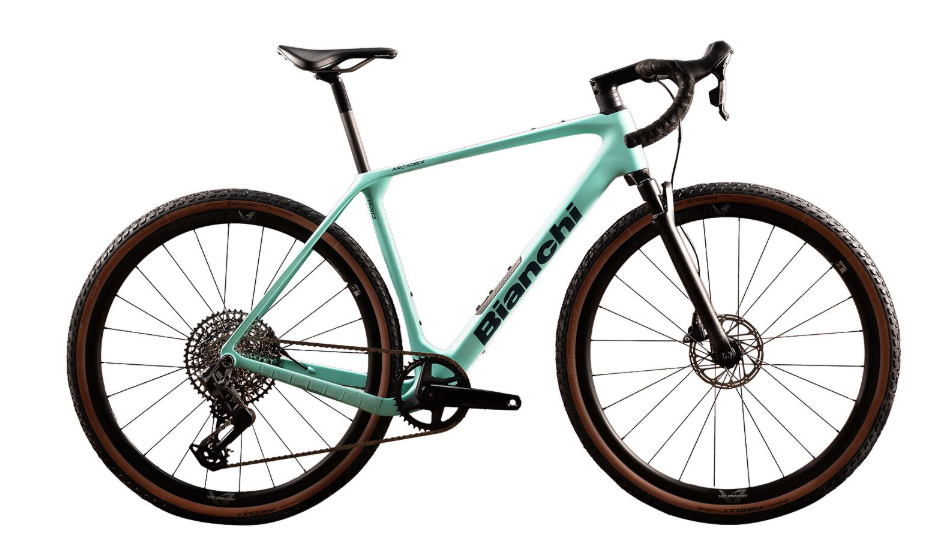

2025 Bianchi Arcadex PRO APEX/GX AXS disc 1x12sp – Gravel Bike
Specifications
|
Specification |
Details |
|
Model |
Arcadex PRO APEX/GX AXS disc 1x12sp |
|
Vehicle Category |
Gravel Bike |
|
Application |
Adventure gravel riding |
|
Starting Price (2025) |
€5,150 |
|
Sizes |
XS (47cm), SM (51cm), MD (55cm), LG (58cm), XL (61cm) |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Arcadex PRO, Disc Brake Specification: Flat Mount 140/160, Bottom Bracket Standard: PressFit 86.5 x Ø41, Rear Axle: thru12 OLD 142 mm, Front Derailleur: Non Compatible, Rear Derailleur: SRAM UDH Hanger type |
|

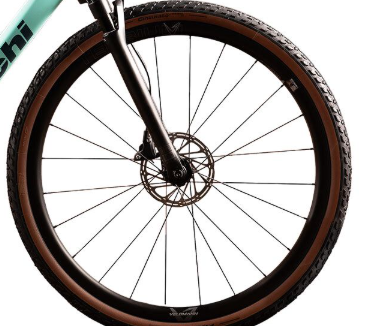

Fork |
Suspension Fork: RockShox Rudy XPLR, Travel: 30 mm, Disc Brake Specification: Direct Flat Mount 160/180, Front Axle: thru12 OLD 100 mm, Tire Clearance: ETRTO 622-50mm, Steer tube Diameter: Tapered 1 1/8" to 1.5", Fork Rake: 51 mm |
|

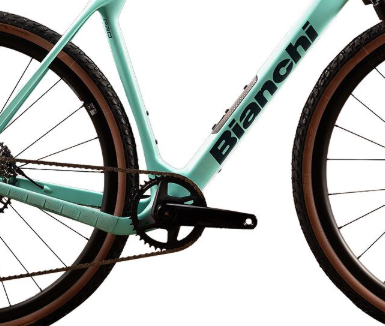

Crank |
Sram Rival 1 WIDE 40T, Crank Length: 170mm (XS-47cm, SM-51cm), 172.5mm (MD-55cm, LG-58cm), 175mm (XL-61cm) |
|
Chain |
Sram GX Eagle Transmission Flattop |
|
Bottom Bracket |
Sram DUB PressFit Road Wide 86.5 x Ø41 |
|
Shifters |
Sram Apex AXS HRD Shift System |
|

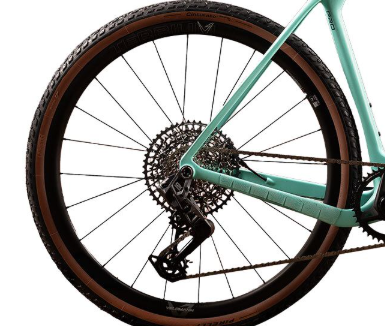

Rear Derailleur |
Sram GX Eagle Transmission (T-type AXS) |
Components & Features
|
Specification |
Details |
|
Seating |
Velomann MITORA 149 H1, cover: soft touch, padding: foam, shell: nylon carbon, rails: Aisi Steel, length: 250mm, width: 149mm, weight: 230g ± 2 |
|
Wheels/Tyres |
Velomann Terbium clincher and tubeless ready, Rim Diameter: 700C, Material: Carbon, Rim Height: 30 mm, Inner Width Channel: 25 mm, Pirelli Cinturato™ GRAVEL M Classic, 45-622 tan sidewall |
|
Wheel Size |
700c |
|
Brakes |
Sram APEX, Pad Type: Steel-Backed Organic, Sram CenterLine Rotor, Hub Interface: Centerlock, Rotor Diameter: 160 mm (front & rear) |
|
Brake Levers |
Sram Apex AXS HRD |
|
Handlebar |
Velomann Gravel ICR Alloy, Flare: 16°, Drop: 130mm, Reach: 70mm, Interface Diameter: 1 1/4" (31.8mm), HandleBar Widths: 400mm (XS-47cm, SM-51cm), 420mm (MD-55cm, LG-58cm), 440mm (XL-61cm) |
|
Stem |
Velomann AICR Alloy, Rise: -2°, Steerer Diameter: 1-1/8" (28.6mm), HB interface Diameter: 1-1/4" (31.8mm), Stem Lengths: 80mm (XS-47cm), 90mm (SM-51cm), 100mm (MD-55cm), 110mm (LG-58cm), 120mm (XL-61cm) |
|
Headset |
Bianchi Custom Acros ICR (Internal Cable Routing) |
|

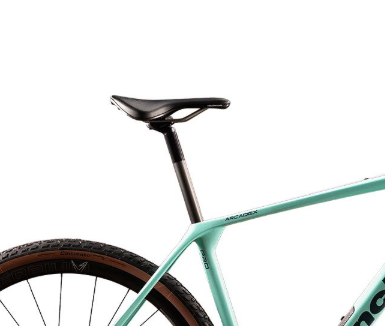

Saddle |
Velomann MITORA 149 H1, cover: soft touch, padding: foam, shell: nylon carbon, rails: Aisi Steel, length: 250mm, width: 149mm, weight: 230g ± 2 |
|
Seatpost |
Velomann Carbon UD SeatPost, O.D: Ø27.2 mm, Seatpost lengths: 300mm (XS-47cm), 350mm (SM-51cm, MD-55cm, LG-58cm, XL-61cm) |
|
Grips |
Bianchi Hexagon tape, 2.5mm thickness, full black |
|
Front Hub |
Velomann Terbium, 24h |
|
Rear Hub |
Velomann Terbium, 24h |
|
Rims |
Velomann Terbium, Rim Diameter: 700C, Material: Carbon, Rim Height: 30 mm |
