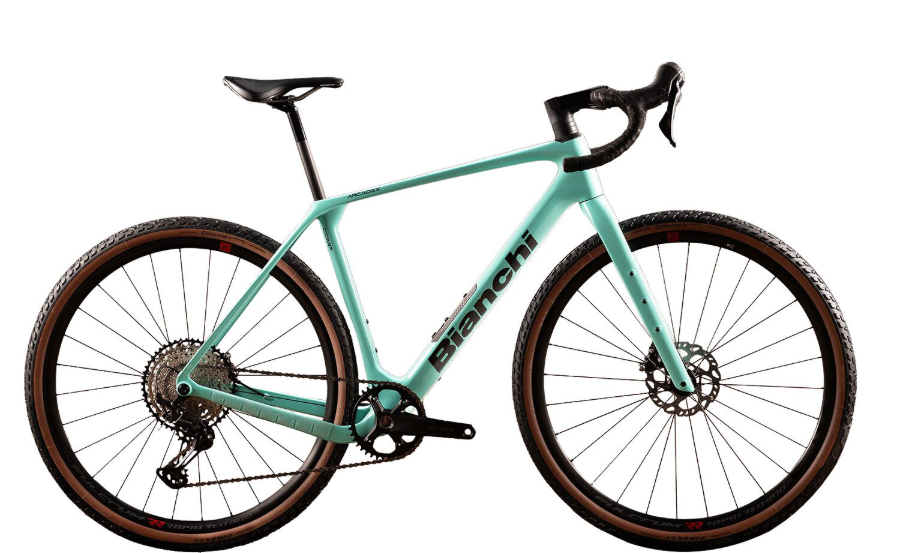

2025 Bianchi Arcadex Comp APEX disc 1x12sp – Gravel Bike
Specifications
|
Specification |
Details |
|
Model |
Arcadex Comp APEX disc 1x12sp |
|
Vehicle Category |
Gravel Bike |
|
Application |
Adventure gravel riding |
|
Starting Price (2025) |
€2,999 |
|
Sizes |
XS (47cm), SM (51cm), MD (55cm), LG (58cm), XL (61cm) |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Arcadex Comp, Disc Brake Specification: Flat Mount 140/160, Bottom Bracket Standard: PressFit 86.5 x Ø41, Rear Axle: thru12 OLD 142 mm, Front Derailleur: Non Compatible, Rear Derailleur: SRAM UDH Hanger type |
|
Fork |
Bianchi Arcadex Fork, Disc Brake Specification: Flat Mount 140/160, Front Axle: thru12 OLD 100 mm, Tire Clearance: ETRTO 622-42mm, Steer tube Diameter: 1 1/8", Material: Epoxy - SM Carbon Fiber Composite |
|

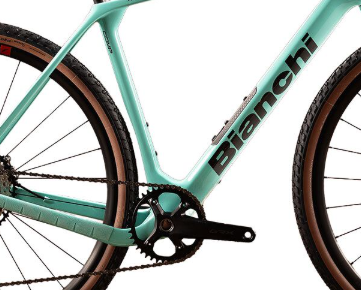

Crank |
Sram Apex 1 WIDE 40T, Crank Length: 170mm (XS-47cm, SM-51cm), 172.5mm (MD-55cm, LG-58cm), 175mm (XL-61cm) |
|
Chain |
Sram SX Eagle |
|
Bottom Bracket |
Sram DUB PressFit Road Wide 86.5 x Ø41 |
|
Shifters |
Sram Apex D1 |
|

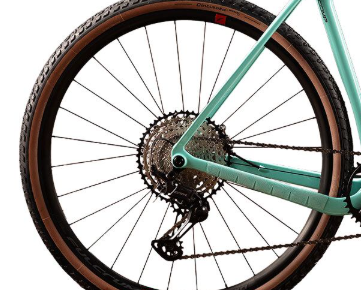

Rear Derailleur |
Sram Apex Eagle, Maximum Cassette Sprocket 52T |
Components & Features
|
Specification |
Details |
|
Seating |
Velomann MITORA 149 H2, cover: soft touch, padding: foam, shell: nylon carbon, rails: Steel, length: 250mm, width: 149mm |
|
Wheels/Tyres |
Fulcrum RapidRed 900 2-Way Fit Ready (for clincher and tubeless ready), Rim Diameter: 700C, Material: Aluminum Alloy, Rim Height: 24 mm, Inner Width Channel: 22 mm, Pirelli Cinturato™ GRAVEL M Classic, 45-622 tan sidewall |
|
Wheel Size |
700c |
|

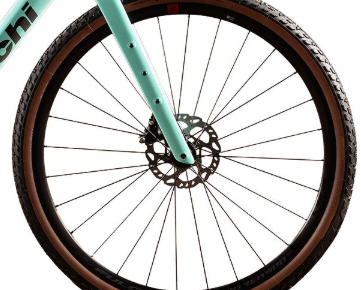

Brakes |
Sram APEX, Pad Type: Steel-Backed Organic, Sram CenterLine Rotor, Hub Interface: Centerlock, Rotor Diameter: 160 mm (front & rear) |
|
Brake Levers |
Sram Apex D1 |
|
Handlebar |
Velomann Gravel ICR Alloy, Flare: 16°, Drop: 130mm, Reach: 70mm, Interface Diameter: 1 1/4" (31.8mm), HandleBar Widths: 400mm (XS-47cm, SM-51cm), 420mm (MD-55cm, LG-58cm), 440mm (XL-61cm) |
|
Stem |
Velomann AICR Alloy, Rise: -2°, Steerer Diameter: 1-1/8" (28.6mm), HB interface Diameter: 1-1/4" (31.8mm), Stem Lengths: 80mm (XS-47cm), 90mm (SM-51cm), 100mm (MD-55cm), 110mm (LG-58cm), 120mm (XL-61cm) |
|
Headset |
Bianchi Custom Acros ICR (Internal Cable Routing) |
|
Saddle |
Velomann MITORA 149 H2, cover: soft touch, padding: foam, shell: nylon carbon, rails: Steel, length: 250mm, width: 149mm |
|

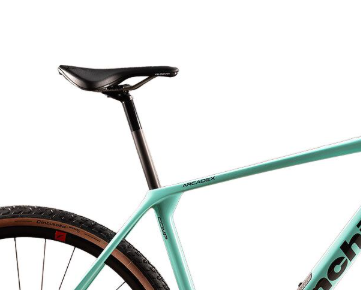

Seatpost |
Velomann Carbon UD SeatPost, O.D: Ø27.2 mm, Seatpost lengths: 300mm (XS-47cm), 350mm (SM-51cm, MD-55cm, LG-58cm, XL-61cm) |
|
Grips |
Bianchi Hexagon tape, 2.5mm thickness, full black |
|
Front Hub |
Fulcrum RapidRed 900, 24h |
|
Rear Hub |
Fulcrum RapidRed 900, 24h |
|
Rims |
Fulcrum RapidRed 900, Rim Diameter: 700C, Material: Aluminum Alloy, Rim Height: 24 mm |
