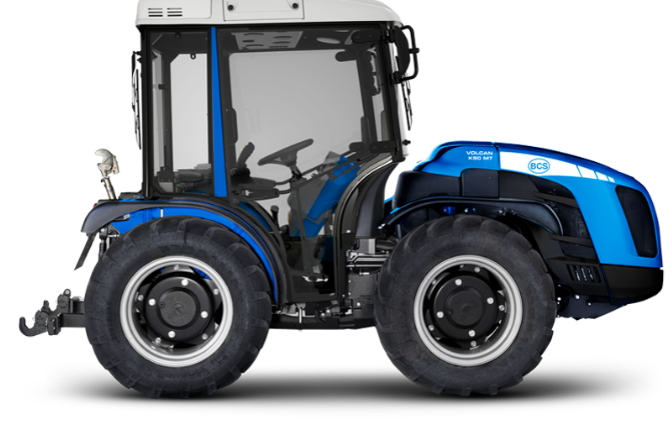

BCS Volcan K90 MT – 4WD Specialized Tractor for Haymaking on Mountains
Specifications
|
Specification |
Details |
|
Tractor Model |
Volcan K90 MT (4WD) |
|
Vehicle Category |
Specialized Tractor |
|
Fuel Type |
Diesel |
|
Application |
Haymaking on Mountains |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Kubota V3800-CR-T-EW03, 4 Cylinders, 3769 cc, Turbo, Common Rail Direct Injection, Liquid Cooling, Stage V |
|
Maximum Horsepower |
75 HP (54.6 kW) @ 2400 RPM |
|
Maximum Torque |
305.4 Nm@1500 RPM |
|
Transmission Type |
32-Speed Synchronised Gearbox: 16 FWD and 16 REV with Synchronised Reverser |
|
Clutch |
Multidisc in Oil Bath Electronically-Managed and Proportional Hydraulic Control with PRO-ACT System |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Swinging Integral Chassis (±15°), OS-FRAME with Steering Wheels |
|
Braking System |
Oil Bath Discs with Hydrostatic Control, Acting on the Four Wheels with Automatic Engagement of the 4-Wheel Drive. Independent Manoeuvring Brakes Acting on the Rear Wheels |
|
Differential Lock |
Front and Rear. Differential Lock: Front and Rear Simultaneously or Rear Only with Electro-Hydraulic Control |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front/Rear Combinations) |
31x15.50-15 XTC / 31x15.50-15 STG / 440/50 R17 All-Ground / 340/65 R20 |
Components & Features
|
Specification |
Details |
|
PTO Type |
Independent from the Gearbox and Synchronised with Forwarding Speed, Negative Safety Hydraulic Brake, Multidisc in Oil Bath Clutch with Electro-Hydraulic Control, Standard: 540/1000 - Optional: 540/540E |
|
Hydraulic System |
Dual Circuit with Independent Pumps and Heat Exchanger, Hydraulic Pump Flow Rate of the Power Steering 33.1 l/min, Hydraulic Pump Flow Rate of the Lift and Control Valves 27.7 l/min, Maximum Hydraulic Pressure 180 bar |
|
Rear Lift |
Up/Down Lift with Four External Cylinders and Dual Floating System® Hydraulic Suspension, Lifting Capacity 2300 kg |
|
Front Lift |
Optional, Two-Cylinder, Complete with Front Bumper and 4 Front Hydraulic Outlets (Replicated from the Rear), Rigid with Quick-Couplings Cat. 1, Lifting Capacity 800 kg |
|
Joystick |
Optional, Proportional Electronic Joystick with New Ergonomic Grip for Controlling the Rear Lift with Dual Floating System® Hydraulic Suspension (and Front Lift if Present) and Rear Control Valves Consisting of: 1 Single-Acting, 2 Double-Acting and 1 Double-Acting with Float (Control Valves Replacing Standard Ones) without Free Flow Oil Return (Total 7 Hydraulic Outlets). Potentiometer for Adjusting the Hydraulic Flow Rate. Remote PTO Engagement Control. Storage Armrest |
|
Steering |
Hydrostatic Steering Acting on the Front Wheels. Flow Deviator for Steering Unit |
|
Electrical System |
Battery 100 Ah / 12 V, Alternator 95 A, Vehicle Control Unit, Full LED Street Lights and Indicator System, Front LED Working Lights, Two USB Sockets on the Dashboard, Rear 7-Pin and 3-Pin Sockets |
|
Weight |
2480 kg (with Semi-Cab), 2560 kg (with Cabin) |
|
Cab Options |
Optional SPACE CLIMA Model, Homolagated and Soundproof. Six-Post Monocoque Frame Mounted on Silent Blocks. Fully Glazed Doors and Cloth Seat. LED Beacon Lamp and Rear Lights. A/C, Ventilation and Heating System. Car Radio Preparation. Optional: Activated Carbon Filters |
|
Ground Clearance |
184-294 mm |
|
Wheelbase |
1495 mm |
|
Width |
1697-1961 mm |
