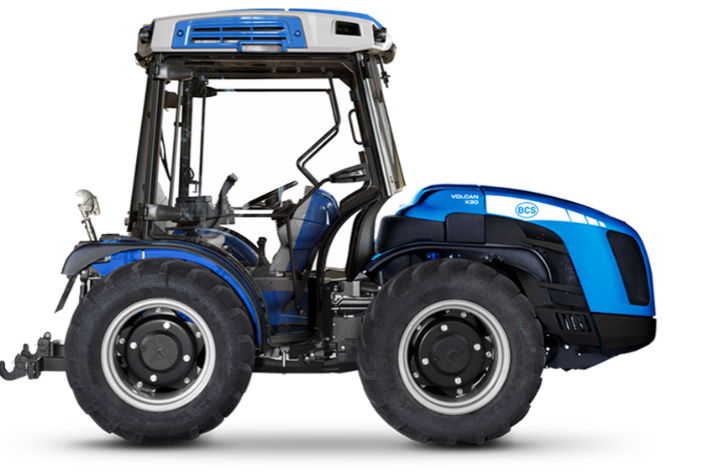

BCS Volcan K90 Dualsteer – 4WD Specialized Tractor for Orchards and Vineyards
Specifications
|
Specification |
Details |
|
Tractor Model |
Volcan K90 Dualsteer (4WD) |
|
Vehicle Category |
Specialized Tractor |
|
Fuel Type |
Diesel |
|
Application |
Canopy Plantations, Orchards, Vineyards, Olive Groves, Greenhouses |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |

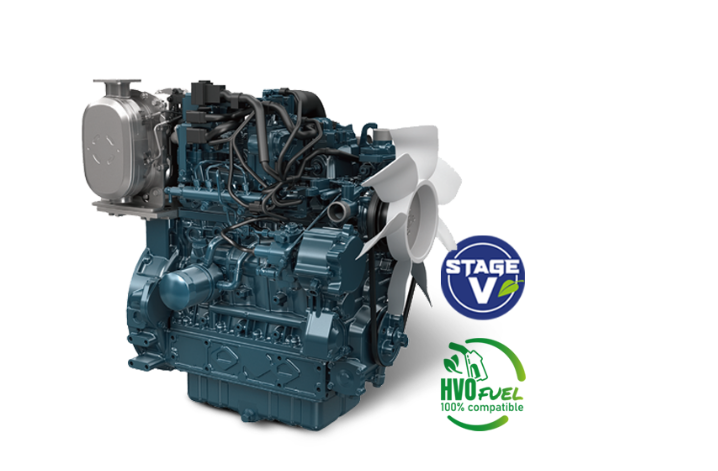

Kubota V3800-CR-T-EW03, 4 Cylinders, 3769 cm³, Turbo, Common Rail Direct Injection, Stage V |
|
Maximum Horsepower |
75 HP (54.6 kW) @ 2400 RPM |
|
Maximum Torque |
305.4 Nm @ 1500 RPM |
|
Transmission Type |
Synchronised Gearbox, 16 Forward + 16 Reverse with Synchronised Reverser |
|
Clutch |
Multidisc in Oil Bath Electronically-Managed and Proportional Hydraulic Control with PRO-ACT System |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Swinging Integral Chassis (±15°), OS-FRAME with Steering Wheels |
|
Braking System |
Oil Bath Discs with Hydrostatic Control, Acting on Four Wheels with Automatic 4-Wheel Drive Engagement, Independent Manoeuvring Brakes Acting on Rear Wheels |
|
Differential Lock |
Front and Rear Simultaneously or Rear Only, Electro-Hydraulic Control |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front/Rear Combinations) |
340/65 R18 / 280/70 R18, 280/70 R18 Garden / 320/65 R18, 9.50-20 (250/85 R20) / 300/70 R20, 300/70 R20 Garden / 320/70 R20, 340/65 R20 / 31x15.50-15 XTC, 31x15.50-15 STG, 33x15.50-15 XTC / 280/70 R20 Pneu Trac |
Components & Features
|
Specification |
Details |
|
PTO Type |
Rear, Independent from Gearbox, Synchronised with Forwarding Speed, Negative Safety Hydraulic Brake, Multidisc in Oil Bath Clutch with Electro-Hydraulic Control, Standard 540/540E RPM, Optional 540/1000 RPM |
|
Hydraulic System |
Dual Circuit with Independent Pumps and Heat Exchanger, Flow to Power Steering 33.1 l/min, Flow to Lift and Valves 27.7 l/min (Optional Oversized Pump 49 l/min), Maximum Pressure 180 bar, Mechanical Control Rear Control Valves, Standard 2 Double-Acting (Total 5 Hydraulic Outlets), Optional Up to 12 Hydraulic Outlets |
|
Rear 3-Point Hitch |
Category 1 and 2, Standard Raising/Lowering with Two External Cylinders, Optional Position and Draft Control, Normal Couplings Cat. 1 and 2 or Quick-Couplings Cat. 1 and 2 Arms Adjustable in Length or Quick-Couplings Cat. 1 and 2 L-Shaped Arms Adjustable in Length and Hooks Adjustable in Width, Ball Joint Lifting Capacity 2300 kg |
|
Front Lift |
Optional, Two-Cylinder, Complete with Front Bumper and 4 Front Hydraulic Outlets (Replicated from the Rear), Rigid with Quick Couplings Cat. 1, Lifting Capacity 800 kg |
|
Joystick |
Optional, Proportional Electronic Control of Rear Lift (and Front Lift if Present), 1 Continuous Flow with Adjustable Flow Rate and Free Flow Oil Return, 3 Double Acting (Replacing the Standard Ones), Potentiometer for Adjusting Hydraulic Flow Rate, 49 l/min Oversized Pump |
|
Steering |
Double Steering System Dualsteer® with 4-Cylinders, Hydrostatic Steering Acting on Front Wheels and Central Joint, Flow Deviator for Steering Unit |
|
Electrical System |
Battery 100 Ah / 12 V, Alternator 95 A, Standard Equipment Vehicle Control Unit, Full LED Street Lights and Indicator System, Front LED Working Lights, Rear 7-Pin and 3-Pin Sockets |
|
Weight |
2450 kg (Roll-Bar), 2580 kg (Cabin) |
|
Cab Options |
VISTA PRO Model, Pressurised and Category 4 Approved (Activated Carbon Filters Required), Soundproof, Four-Post Monocoque Frame with Conical Profile, Mounted on Silent Blocks, Fully Glazed Doors, Cloth Seat, A/C, Ventilation and Heating System, Dust Filters Category 2, USB Bluetooth Car Radio with Handsfree, Two USB Sockets, LED Work Lights on Four Sides of Cab (Total of 10 Lights), LED Beacon Lamp, Optional Activated Carbon Filters for Cat. 4 |
|
Ground Clearance |
161-271 mm |
|
Wheelbase |
1495 mm |
|
Width |
1368-1961 mm |
