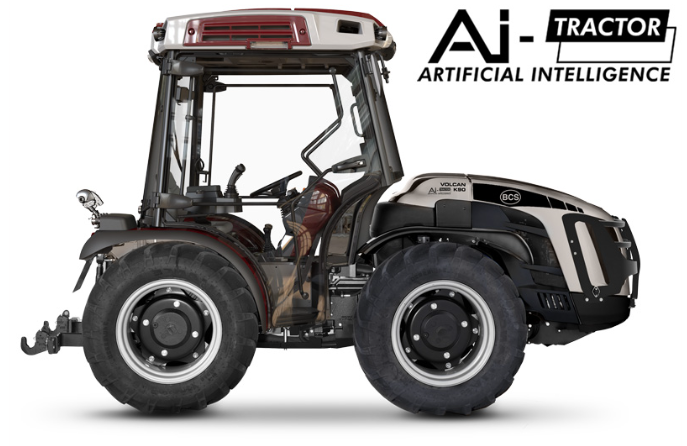

BCS Volcan K90 AI-Tractor - MT – 4WD Vineyard Tractor for Precision Tasks
Specifications
|
Specification |
Details |
|
Tractor Model |
Volcan K90 AI-Tractor - MT T4 (4WD) |
|
Vehicle Category |
Vineyard Tractor |
|
Fuel Type |
Diesel |
|
Application |
Greenhouses, Olive Groves, Orchards, Vineyards on Slopes, Pergola Vineyards, Canopy Plantations |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Kubota V3800-CR-T-EW03 – Stage V, Turbo, 4 cylinders, 3769 cm3 |
|
Power |
54.6 kW / 75 HP @ 2400 rpm |
|
Torque Max |
305.4 Nm @ 1500 rpm |
|
Transmission |
16 + 16 with "Artificial Intelligence" that optimizes the management of the clutch, brakes and electro-hydraulic reverser, Synchronized reverser Yes, Electro-hydraulic power shuttle EasyDrive® Standard |
|

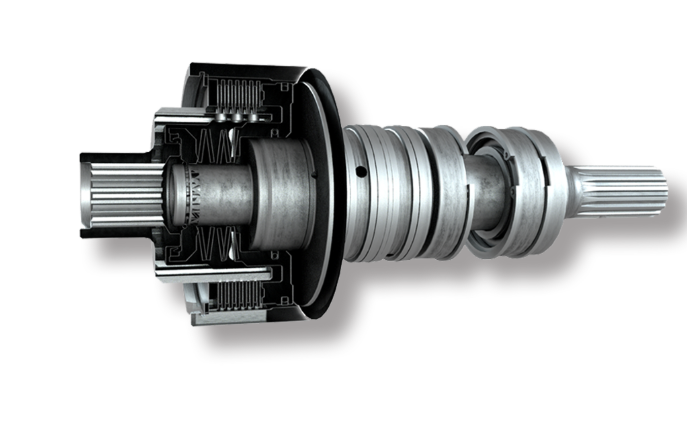

Transmission Clutch |
Multidisc in oil bath with hydraulic control |
|
Drive Disengagement |
4WD with front-wheel drive disengagement |
Suspension & Brakes
|
Specification |
Details |
|
Chassis |
Articulated |
|
Differential Lock |
Front and rear with simultaneous locking and electro-hydraulic control |
|
Axles |
Front and rear with planetary reduction units |
|
Brakes |
Multidisc in oil bath with hydrostatic control acting on four wheels and hill start assist. Independent manoeuvring brakes acting on rear wheels |
|
Steering |
Hydrostatic steering acting on the central joint |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
250/80-18 * 280/70 R18 * 280/70R18 Galaxy Garden * 320/65 R18 * 250/85 R20 * 300/70 R20 * 300/70R20 Galaxy Garden * 340/65 R20 * 31x15.50-15 XTC * 31x15.50-15 STG * 33x15.50-15 XTC * 280/70 R20 Pneu Trac |
Components & Features
|
Specification |
Details |
|
Power Take-Off |
PTO rotation speed (rpm) 540 / 540E (optional: 540 / 1000), PTO engagement control Electro-hydraulic |
|
Hydraulic System |
Dual circuit with independent pumps, Heat exchanger Yes |
|
Rear Lift |
Rear lifting capacity (kg) 2300 (at the ball joint) |
|
Front Lift |
Optional, complete with front bumper and four front hydraulic outlets |
|
Joystick |
Optional. Proportional electronic control of lifts and control valves, potentiometer for adjusting the hydraulic flow rate. Throttle and additional buttons to control AI-Tractor different driving mode |
|
Driving Position |
Reversible |
|
Safety |
Front homologated roll-bar with gas springs for easy lowering and lifting |
|
Cabin |
Optional. With heating and air-conditioning system. Versions available: 'Space Clima' with six-post frame or 'Vista Pro' four-post frame with conical profile, pressurised and category 4 approved |
|
Dashboard |
Instrument panel with analogue gauges and TFT digital colour display. Warning lights and horn |
|
Electric System |
Battery 100 Ah / 12 V - Alternator 95 A, Standard equipment Vehicle Control Unit, full LED street lights and indicator system, front LED working lights, two USB sockets on the dashboard, rear 7-pin and 3-pin sockets |
|
Weight |
With roll-bar: 2380 kg - With cabin: 2530 kg |
|
Tank Capacity |
58 litres |
|
Warranty |
2 years warranty, with the opportunity to extend the guarantee up to 4 years |
|
Minimum External Width |
1368 mm |
