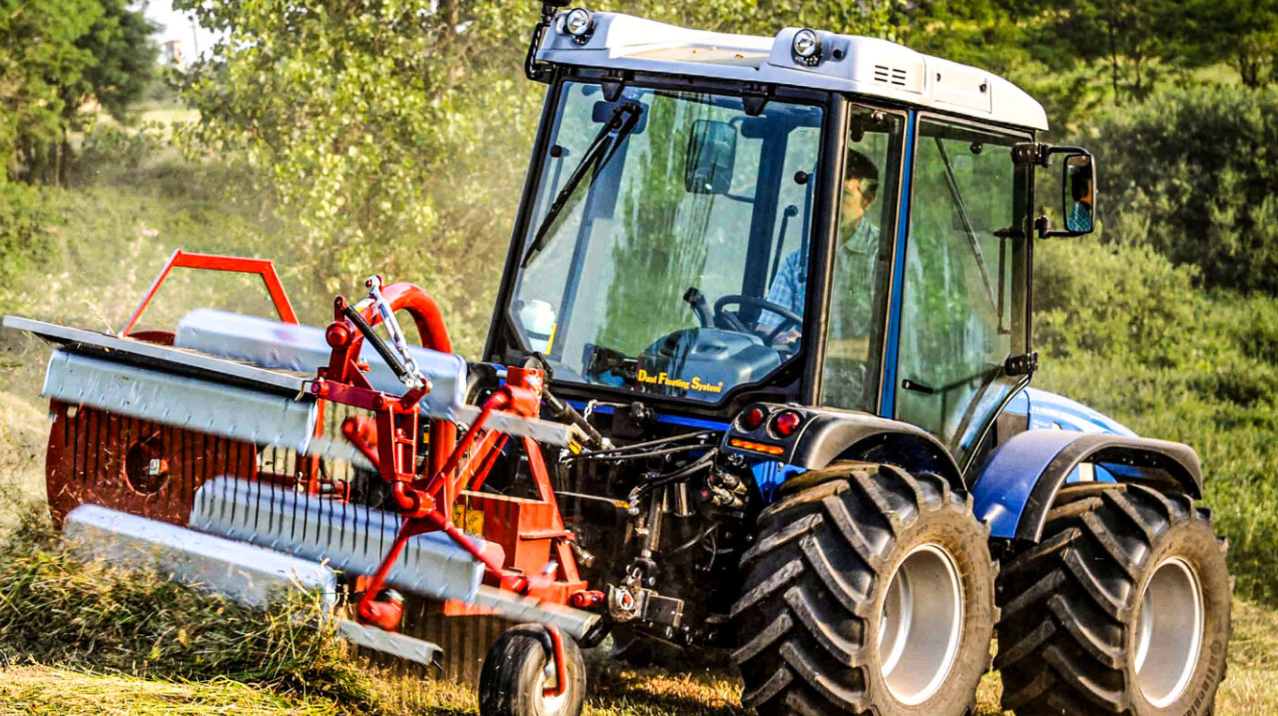

BCS Volcan 85 MT – 4WD Specialized Tractor for Haymaking on Mountains
Specifications
|
Specification |
Details |
|
Tractor Model |
Volcan 85 MT (4WD) |
|
Vehicle Category |
Specialized Tractor |
|
Fuel Type |
Diesel |
|
Application |
Haymaking on Mountains |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Kohler KDI 2504 TCR, 4 Cylinders, 2482 cm³, Turbo / Intercooler |
|
Maximum Horsepower |
75.3 HP (55.4 kW) @ 2300 RPM |
|
Maximum Torque |
300 Nm @ 1500 RPM |
|
Transmission Type |
16 + 16 with Easy Plus™ Clutch and Smart Brake & Go |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Steering Wheels |
|
Braking System |
Multi Disc in Oil Bath with Hydrostatic Control, Acting on Four Wheels |
Components & Features
|
Specification |
Details |
|
PTO Type |
540 / 1000 (optional: 540 / 540E), Independent and Synchronised |
|
Hydraulic System |
Dual Circuit with Independent Pumps, Heat Exchanger |
|
Rear Lifting Capacity |
2300 kg (at the ball joint) |
|

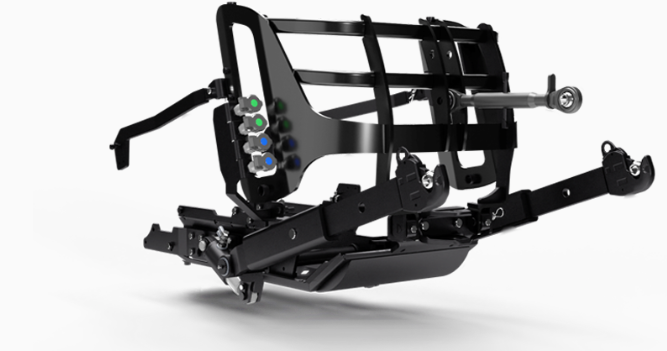

Front Lift |
Optional, Complete with Front Bumper and Four Front Hydraulic Outlets |
|
Joystick |
Optional, Proportional Electronic Control of Lifts and Control Valves with New Ergonomic Grip. Potentiometer for Adjusting the Hydraulic Flow Rate, Remote Control for PTO Engagement and Storage Armrest |
|
Steering |
Hydrostatic Steering Acting on Front Wheels |
|
Weight |
2420 kg (with semi-cab), 2500 kg (with cab) |
|
Cab Options |
Standard Six-Post Semi-Cab. Optional: 'Space Clima' with Heating and Air-Conditioning System |
|
Ground Clearance |
170 mm |
|
Wheelbase |
2254 / 2364 mm (with roll-bar), 2235 / 2345 mm (with VISTA cab), 2070 / 2180 mm (with SPACE cab) |
|
Width |
1291 / 1961 mm |
