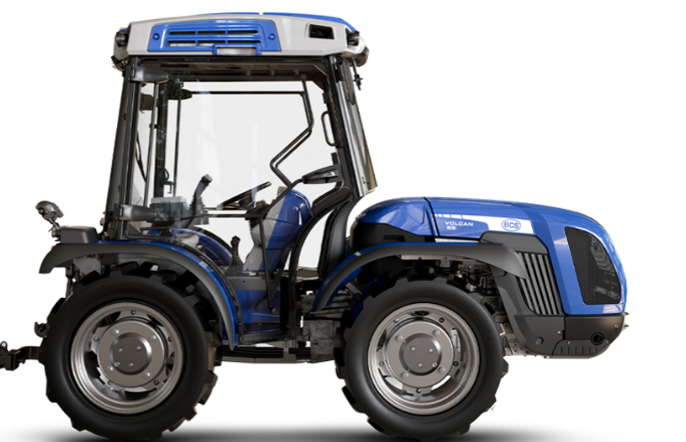

BCS Volcan 85 Dualsteer – 4WD Specialized Tractor for Orchards and Vineyards
Specifications
|
Specification |
Details |
|
Tractor Model |
Volcan 85 Dualsteer (4WD) |
|
Vehicle Category |
Specialized Tractor |
|
Fuel Type |
Diesel |
|
Application |
Orchards, Vineyards, Greenhouse Crops, Nurseries, Municipality Activities |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Kohler KDI 2504 TCR, 4 Cylinders, 2482 cm³, Turbo/Intercooler, Common Rail Direct Injection 2000 bar, Stage V |
|
Maximum Horsepower |
75.3 HP (55.4 kW) @ 2300 RPM |
|
Maximum Torque |
300 Nm @ 1500 RPM |
|
Transmission Type |
Synchronised Gearbox, 16 Forward + 16 Reverse with Synchronised Reverser |
|

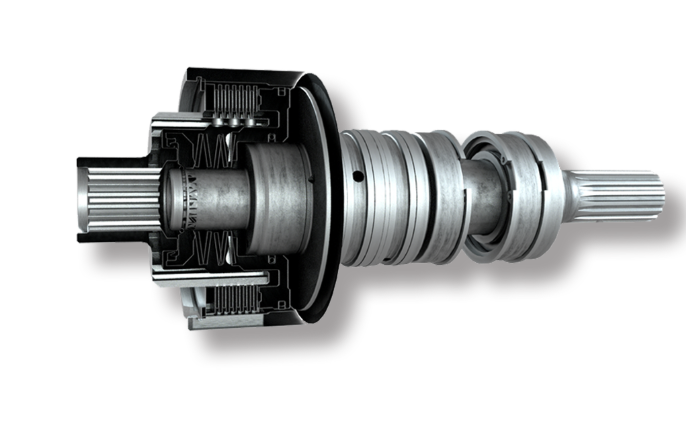

Clutch |
Multidisc in Oil Bath with Electro-Hydraulic Control |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Swinging Integral Chassis (±15°), OS-FRAME with Steering Wheels |
|
Braking System |
Oil Bath Discs with Hydrostatic Control, Acting on Four Wheels with Automatic 4-Wheel Drive Engagement, Independent Manoeuvring Brakes Acting on Rear Wheels |
|
Differential Lock |
Front and Rear Simultaneously or Rear Only, Electro-Hydraulic Control |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front/Rear Combinations) |
260/70R16 / 300/70R20, 260/70R16 / 340/65R20, 280/70R18 / 360/70R20, 280/70R18 / 320/70R24, 320/65R18 / 380/70R20, 340/65R18 / 420/65R24, 320/65R18 / 320/70R24, 280/70R18 / 380/70R20 |
Components & Features
|
Specification |
Details |
|
PTO Type |
Rear, Independent from Gearbox, Synchronised with Forwarding Speed, Negative Safety Hydraulic Brake, Multidisc in Oil Bath Clutch with Electro-Hydraulic Control, Standard 540/540E RPM, Optional 540/1000 RPM |
|
Hydraulic System |
Double Circuit with Independent Pumps and Heat Exchanger, Flow to Power Steering 33.1 l/min, Flow to Lift and Valves 27.7 l/min (Optional Oversized Pump 49 l/min), Maximum Pressure 180 bar, Mechanical Control Rear Control Valves, Standard 2 Double-Acting (Total 5 Hydraulic Outlets), Optional Up to 9 Hydraulic Outlets |
|
Rear 3-Point Hitch |
Category 1 and 2, Standard Raising/Lowering with Two External Cylinders, Optional Position and Draft Control, Normal Couplings Cat. 1 and 2 or Fixed Arms with Quick-Couplings Cat. 1 and 2 or L-Shaped Arms with Quick-Couplings Cat. 1 and 2, Ball Joint Lifting Capacity 2700 kg |
|
Front Lift |
Optional, Two-Cylinder, Rigid with Quick Couplings Cat. 1, Lifting Capacity 800 kg |
|
Joystick |
Optional, Proportional Electronic Control of Rear Lift (and Front Lift if Present), 1 Continuous Flow with Adjustable Flow Rate and Free Flow Oil Return, 3 Double Acting (Replacing the Standard Ones), Potentiometer for Adjusting Hydraulic Flow Rate, 49 l/min Oversized Pump |
|
Steering |
Double Steering System Dualsteer® with 4-Cylinders, Hydrostatic Steering Acting on Front Wheels and Central Joint |
|
Electrical System |
Battery 100 Ah / 12 V, Alternator 95 A, Standard Equipment Vehicle Control Unit, Full LED Street Lights and Indicator System, Front LED Working Lights, Rear 7-Pin and 3-Pin Sockets |
|
Weight |
2390-2540 kg |
|
Cab Options |
Optional 'Vista Pro' Conical 4-Post Pressurised and Homologated Cat. 4 or 'Space Clima' 6-Post |
|
Ground Clearance |
157-257 mm |
|
Wheelbase |
1495 mm |
|
Width |
1340-1860 mm |
