Specification

Details

Tractor Model

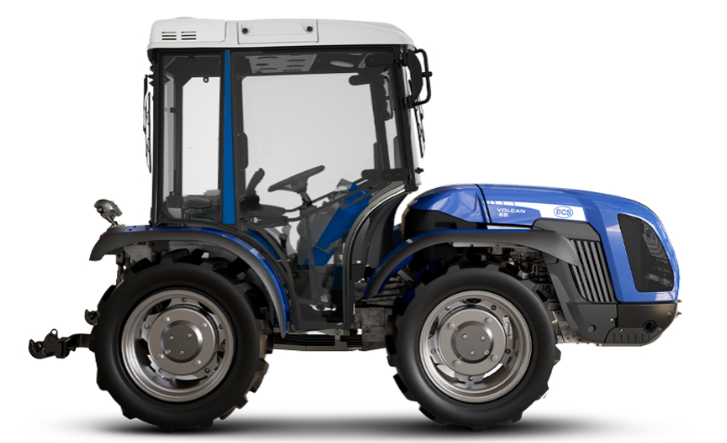

Volcan 85 AR - MODEL YEAR 24 T4 (4WD)

Vehicle Category

Vineyard Tractor

Fuel Type

Diesel

Application

Greenhouses, Olive Groves, Orchards, Vineyards on Slopes, Pergola Vineyards, Canopy Plantations

Specification

Details

Engine

Kohler KDI 2504 TCR, Diesel common rail direct injection, Turbo intercooler, 4 cylinders 16 valves, 2482 cc, Liquid cooling, Stage V

Power

55.4 kW / 75.3 hp @2300 rpm

Torque Max

300 Nm@1500 rpm

Transmission

32-speed synchronised gearbox: 16 FWD and 16 REV with synchronised reverser, Min/max travel speed 0.7 / 38 km/h

Transmission Clutch

Multidisc in oil bath with electronically-managed and proportional hydraulic control

Drive Disengagement

Four-wheel drive. Front-wheel drive disengagement with electro-hydraulic control

Specification

Details

Chassis

Swinging integral chassis (±15°) OS-FRAME with central articulation

Differential Lock

Front and rear with simultaneous locking and electro-hydraulic control

Axles

Front and rear with planetary reduction units

Brakes

Oil bath discs with hydrostatic control, acting on the four wheels with automatic engagement of the 4-wheel drive

Parking Brake

Automatic and independent Brake-Off acting as emergency brake with proportional action

Steering

Hydrostatic steering acting on the central joint. Flow deviator for steering unit

Specification

Details

Tyres

250/80-18 * 280/70 R18 * 280/70R18 Galaxy Garden * 320/65 R18 * 250/85 R20 * 300/70 R20 * 300/70R20 Galaxy Garden * 340/65 R20 * 31x15.50-15 XTC * 31x15.50-15 STG * 33x15.50-15 XTC * 280/70 R20 PneuTrac

Specification

Details

Power Take-Off

Rear, independent from the gearbox and synchronised with the forwarding speed. Negative safety hydraulic brake to stop the PTO, PTO clutch Multidisc in oil bath with electro-hydraulic control, PTO rotation speed Standard: 540/540E - Optional: 540/1000

Hydraulic System

Dual circuit with independent pumps and heat exchanger, Hydraulic pump flow rate of the power steering and electro-hydraulic controls 33.5 l/min, Hydraulic pump flow rate of the lift and control valves 29.5 l/min (optional oversized pump with 51 l/min flow rate), Maximum hydraulic pressure 180 bar

Rear Control Valves

Mechanically controlled, Standard For lift by rams: 1 double-acting with float + free flow oil return (total 3 hydraulic outlets) - For lift with draft and position control: 1 single-acting and 2 double-acting + free flow oil return (total 6 hydraulic outlets), Optional For lift by rams, in addition to the standard ones: 1 single-acting and 1 double-acting (total 6 hydraulic outlets) or 2 double-acting (total 7 hydraulic outlets). For lift with draft and position control, replacing the standard ones: 1 single-acting, 1 double-acting and 1 double-acting with float + free flow oil return (total 6 hydraulic outlets) or up to 3 double-acting + free flow oil return (total 7 hydraulic outlets)

Joystick

Optional, Proportional electronic control of rear lift and control valves consisting of: 1 continuous flow with adjustable flow rate and free flow oil return, 4 double-acting (replacing the standard ones) and circuit with increased flow rate 48 l/min (total 10 hydraulic outlets). Potentiometer for adjusting joystick sensibility. Remote control for PTO engagement. Storage armrest

Rear Lift

By two external cylinders. Standard: up/down lift - Optional: position and draft-controlled, 3-point implement hitch Standard: normal couplings cat. 1 - Optional: quick-couplings cat. 1 (arms not adjustable in length) or quick-couplings cat. 1 and 2, L-shaped, arms adjustable in length and hooks adjustable in width, Third point tie rod Standard: with manual adjustment - Optional: hydraulically controlled upper link and tie rod link arm (only for lift with L-shaped arms cat. 1 and 2), Ball joint lifting capacity 1900 kg

Front Lift

Optional, Two-cylinder, complete with front bumper and 4 front hydraulic outlets (replicated from the rear), Third point arms Rigid with quick-couplings cat. 1, Lifting capacity 800 kg

Towing Device

Standard: front and rear CUNA cat. C adjustable in height - Optional: rear tow hook EC approved or EC with Slider frame or CUNA with Slider frame or EC tow bar with Slider frame

Driving Position

Reversible with rotating platform suspended on silent blocks. Suspended pedals mounted on the rotating control tower

Safety

Front homologated roll-bar with gas springs for easy lowering and lifting

Cabin

Optional, VISTA PRO model, pressurised and category 4 approved (activated carbon filters required). Soundproof. Four-post monocoque frame with conical profile, mounted on silent block. Fully glazed doors and cloth seat. A/C, ventilation and heating system. Dust filters category 2. USB bluetooth car radio with handsfree and sound diffusers. Two USB sockets. LED work lights on the four sides of the cab (total of 10 lights). LED beacon lamp. Optional: activated carbon filters for category 4

Dashboard

Instrument panel with analogue gauges and TFT digital colour display. Warning lights and horn

Electric System

Battery 80 Ah / 12 V - Alternator 95 A, Standard equipment Vehicle Control Unit, full LED street lights and indicator system, front LED working lights, two USB sockets on the dashboard, rear 7-pin and 3-pin sockets

Weight

With roll-bar: 2240 kg - With cabin: 2390 kg

Tank Capacity

58 litres

Warranty

2 years warranty, with the opportunity to extend the guarantee up to 4 years

Minimum External Width

1125 mm
