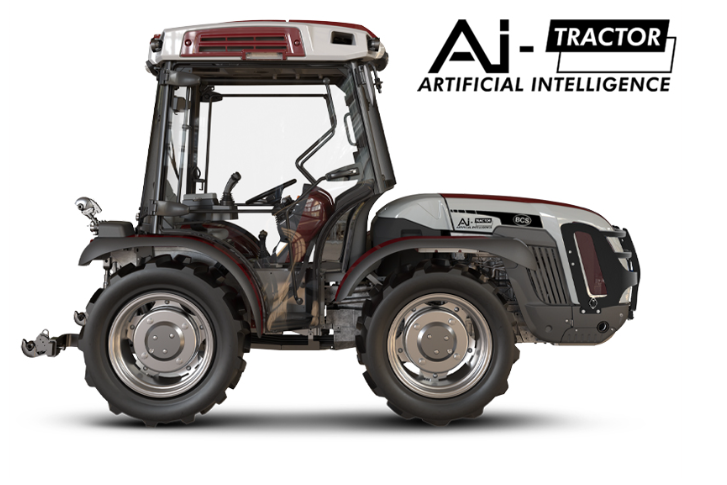

BCS Volcan 85 AI-Tractor MT – 4WD Specialized Tractor for Haymaking on Mountains
Specifications
|
Specification |
Details |
|
Tractor Model |
Volcan 85 AI-Tractor MT (4WD) |
|
Vehicle Category |
Specialized Tractor |
|
Fuel Type |
Diesel |
|
Application |
Haymaking on Mountains |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Kohler KDI 2504 TCR – Stage V, 4 in-line / 16 valves, 2482 cm³, Turbo / Intercooler |
|
Maximum Horsepower |
75.3 HP (55.4 kW) @ 2300 RPM |
|
Maximum Torque |
300 Nm @ 1500 RPM |
|
Transmission Type |

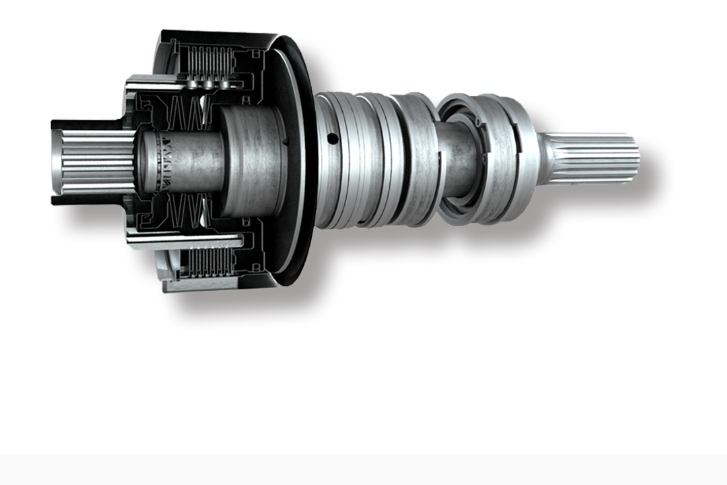

16 + 16 with Easy Plus™ Clutch and "Artificial Intelligence" that Optimizes the Management of the Clutch, Brakes and Electro-Hydraulic Reverser |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Steering Wheels |
|
Braking System |
Multidisc in Oil Bath with Hydrostatic Control Acting on Four Wheels and Hill Start Assist. Independent Manoeuvring Brakes Acting on Rear Wheels |
Components & Features
|
Specification |
Details |
|
PTO Type |
540 / 540E (optional: 540 / 1000), Independent and Synchronised |
|
Hydraulic System |
Dual Circuit with Independent Pumps, Heat Exchanger |
|
Rear Lifting Capacity |
2300 kg (at the Ball Joint) |
|
Front Lift |
Optional, Complete with Front Bumper and Four Front Hydraulic Outlets |
|
Joystick |
Optional, Proportional Electronic Control of Lifts and Control Valves, Potentiometer for Adjusting the Hydraulic Flow Rate, Remote Control for PTO Engagement and Throttle, Storage Armrest. Additional Buttons to Control AI-Tractor Different Driving Mode |
|
Steering |
Hydrostatic Steering Acting on the Front Wheels |
|
Weight |
2420 kg (with Semi-Cab), 2500 kg (with Cab) |
|
Cab Options |
Standard: Six-Post Semi-Cab. Optional: 'Space Clima' with Heating and Air-Conditioning System |
|
Ground Clearance |
184-294 mm |
|
Wheelbase |
1495 mm |
|
Width |
1291-1961 mm |
