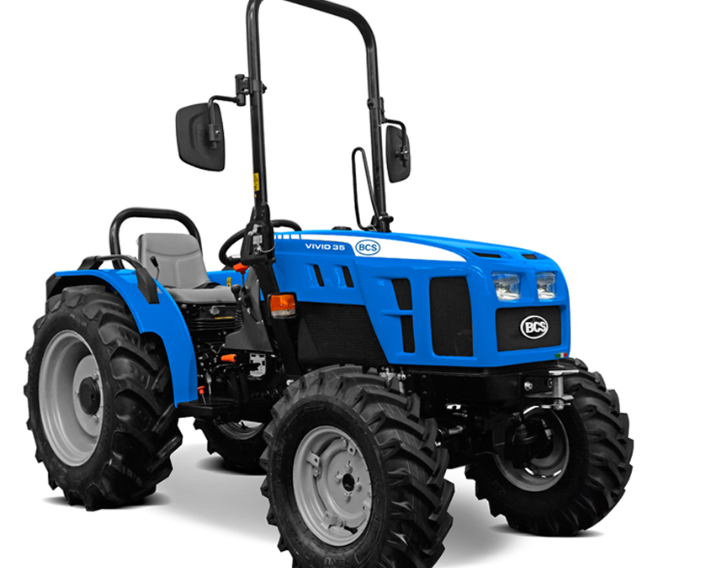

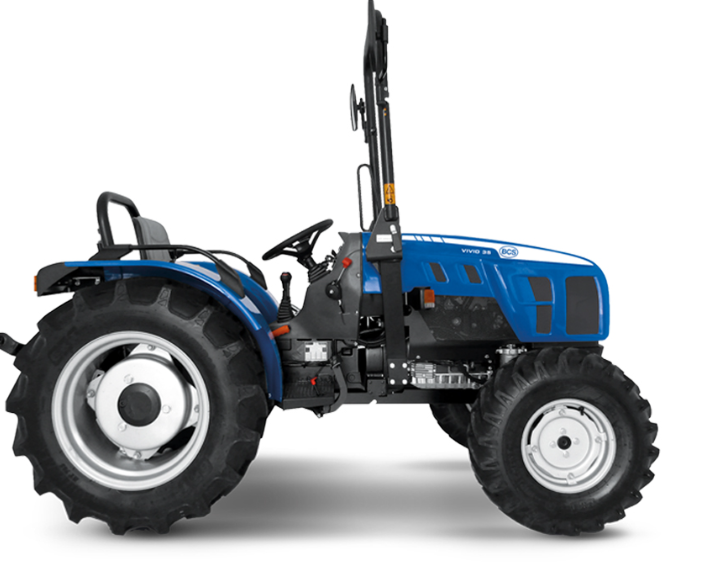

BCS Vivid 35 – 4WD Utility Tractor for Vineyard and Orchard Work

Images:
1
2

Specifications

Specification

Details

Tractor Model

Vivid 35 (4WD)

Vehicle Category

Utility Tractor

Fuel Type

Diesel

Application

Farm Transportation, Field Work, Vineyard, Orchard, Greenhouses, Nurseries, Greens Maintenance, Winter Municipal Use

Frame & Drivetrain

Specification

Details

Engine

Kohler KDW 1404, 4 Cylinders, 1372 cm³, Direct Injection, Natural Aspiration, Stage V

Maximum Horsepower

25.6 HP (18.8 kW) @ 3000 RPM

Maximum Torque

78 Nm @ 2000 RPM

Transmission Type

Synchronized Gearbox, 12 Forward + 12 Reverse with Synchronized Reverser

Clutch

Dual Disc, Pedal Control for Gearbox, Hand Lever Control for PTO

Suspension & Brakes

Specification

Details

Frame

Rigid Chassis with Steering Wheels

Braking System

Rear Multidisc in Oil Bath, Independent Manoeuvring Brakes on Rear Wheels, Parking Brake on Service Brakes

Differential Lock

Rear, Mechanical Control

Wheels & Tyres

Specification

Details

Tyre Size (Tractor)

6.5/80-12*250/80-18, 23x8.50-12*280/70R18, 7.00-12*300/70R20

Tyre Size (Garden)

25x8.50-14*380/70D-15 (36x13.50-15)

Components & Features

Specification

Details

PTO Type

Rear, Independent, 540 RPM, Synchronized with Forwarding Speed, Mechanical Engagement Control

Hydraulic System

Hydraulic Gear Pump, 19.3 l/min Flow Rate, 110 bar Maximum Pressure

Rear Lift

3-Point Hitch Cat. 1, 750 kg Lifting Capacity, Standard Up/Down Lift, Optional Position and Draft-Controlled

Front Lift

Optional, Cat. 1N, 350 kg Lifting Capacity, Front and Under-Belly PTO at 1700 RPM

Rear Control Valves

Mechanically Controlled, Standard 1 Double-Acting (2 Outlets), Optional Up to 6 Outlets with Up/Down Lift, Up to 4 Outlets with Draft-Controlled Lift

Steering

Hydrostatic, Acting on Front Wheels

Weight

1100 kg (2425 lb, Roll-Bar)

Ground Clearance

206-246 mm (8.1-9.7 in)

Fuel Tank Capacity

26 l (6.9 gal)

Wheelbase

1553 mm (61.1 in)

Width

1022 mm (40.2 in)

* All the images are screenshots!
* Data has been taken from official website (Publicly Available)!
