BCS Vithar K90 AR – 4WD Specialized Tractor for Orchards and Vineyards
Specifications
|
Specification |
Details |
|
Tractor Model |
Vithar K90 AR (4WD) |
|
Vehicle Category |
Specialized Tractor |
|
Fuel Type |
Diesel |
|
Application |
Orchards, Vineyards, Greenhouse Crops, Nurseries, Municipality Activities |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |

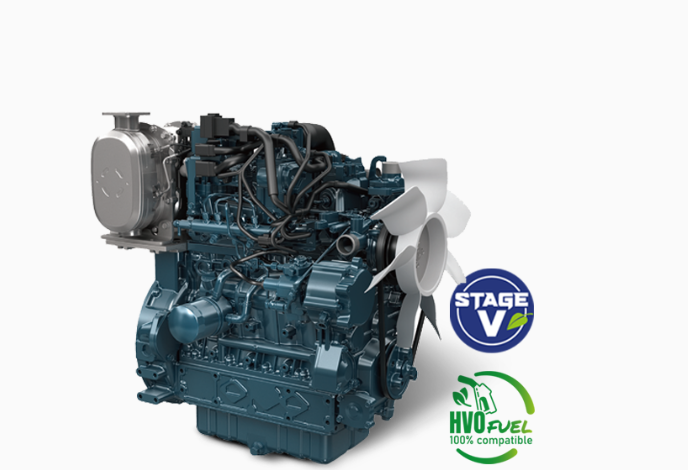

Kubota V3800-CR-T-EW03, 4 Cylinders in-Line, 3,769 cc, Turbo, Direct Injection Common Rail, Stage V, Counter-Balance Shafts |
|
Maximum Horsepower |
75 HP (54.6 kW) @ 2,400 RPM |
|
Maximum Torque |
305.4 Nm @ 1,500 RPM |
|
Transmission Type |
Synchronised Gearbox, 16 Forward + 16 Reverse with Synchronised Reverser |
|
Clutch |
Multidisc in Oil Bath with Hydraulic Control |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Swinging Integral Chassis (±15°), OS-FRAME with Central Articulation |
|
Braking System |
Multidisc in Oil Bath with Mechanical Control, Acting on the Rear Wheels |
|
Differential Lock |
Front and Rear with Simultaneous Locking and Electro-Hydraulic Control |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front/Rear Combinations) |
250/80-18 / 280/70R18 / 280/70R18 Galaxy Garden / 320/65R18 / 250/85R20 / 300/70R20 / 300/70R20 Galaxy Garden / 340/65R20 / 31x15.50-15 XTC or STG |
Components & Features
|
Specification |
Details |
|
PTO Type |
Rear, Independent from Gearbox, Synchronised with Forwarding Speed, Negative Safety Hydraulic Brake, Multidisc in Oil Bath Clutch with Electro-Hydraulic Control, Standard 540/540E RPM, Optional 540/1000 RPM |
|
Hydraulic System |
Dual Circuit with Independent Pumps and Heat Exchanger, Flow to Hydroguide 33.1 l/min, Flow to Lift and Control Valves 27.7 l/min (Optional Oversized Pump 49 l/min), Maximum Pressure 180 bar |
|
Rear 3-Point Hitch |
Category 1 and 2, Standard Raising/Lowering with Two External Rams, Optional Position and Draft Control, Normal Couplings Cat. 1 and 2 or Quick-Couplings Cat. 1 and 2, L-Shaped, Arms Adjustable in Length and Hooks Adjustable in Width, Third Point Tie Rod with Manual Adjustment, Ball Joint Lifting Capacity 2300 kg |
|
Front Lift |
Optional, Two External Rams with Front Protection and 2 Double-Acting Control Valves (Total 4 Hydraulic Outlets), Rigid with Quick-Couplings Cat. 1, Lifting Capacity 800 kg |
|
Steering |
Hydrostatic Steering Acting on Central Joint, Flow Deviator for Steering Unit in Reversible Version |
|
Electrical System |
Battery 100 Ah / 12 V, Alternator 95 A, Rear 7-Pin and 3-Pin Sockets |
|
Weight |
2150 kg (Roll-Bar) |
|
Ground Clearance |
195-275 mm |
|
Fuel Tank Capacity |
54 l |
|
Wheelbase |
1450 mm |
|
Width |
1125-1707 mm |
