Specification

Details

Tractor Model

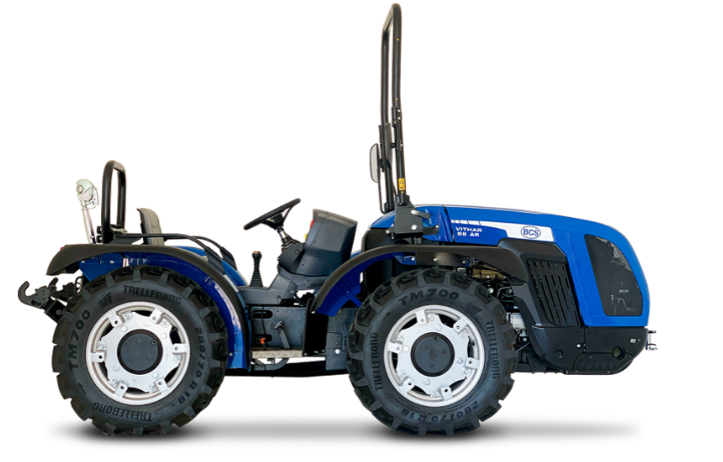

Vithar 85 AR T4 (4WD)

Vehicle Category

Vineyard Tractor

Fuel Type

Diesel

Application

Greenhouses, Olive Groves, Orchards, Vineyards on Slopes, Pergola Vineyards, Canopy Plantations

Specification

Details

Engine

Kohler KDI 2504 TCR, Common rail direct injection - 2000 bar, Turbo / Intercooler, 4 in-line cylinders / 16 valves, 2482 cc, Liquid Cooling, Stage V

Power

55.4 kW / 75.3 hp @ 2300 rpm

Torque Max

300 Nm @ 1500 rpm

Transmission

32-speed synchronised gearbox: 16 FWD and 16 REV with synchronised reverser, Min/max travel speed 0.7 / 38 km/h

Transmission Clutch

Multidisc in oil bath with hydraulic control

Drive Disengagement

Permanent four-wheel drive

Specification

Details

Chassis

Swinging integral chassis (±15°) OS-FRAME with central articulation

Differential Lock

Front and rear with simultaneous locking and electro-hydraulic control

Axles

Front and rear with planetary reduction units

Brakes

Multidisc in oil bath with mechanical control, acting on the rear wheels

Parking Brake

Acting on service brakes

Steering

Hydrostatic steering acting on the central joint. Flow deviator for steering unit in Reversible version

Specification

Details

Tyres

250/80-18 * 280/70R18 * 280/70R18 Galaxy Garden * 250/85 R20 * 300/70 R20 * 300/70 R20 Galaxy Garden * 340/65 R20 * 31x15.50-15 XTC or STG * 33x15.50-15 XTC * 280/70 R20 PneuTrac

Specification

Details

Power Take-Off

Rear, independent from the gearbox and synchronised with the forwarding speed. Negative safety hydraulic brake to stop the PTO, PTO clutch Multidisc in oil bath with electro-hydraulic control, PTO rotation speed Standard: 540/540E - Optional: 540/1000

Hydraulic System

Dual circuit with independent pumps and heat exchanger, Flow rate to the hydroguide and the electro-hydraulic controls 33.5 l/min, Flow rate to the lift and the control valves 29.5 l/min (optional oversized pump with 51 l/min flow rate), Maximum hydraulic pressure 180 bar

Rear Control Valves

Mechanically controlled, Standard For lift by rams: 1 double-acting with float + free flow oil return (total 3 hydraulic outlets) - For lift with draft and position control: 2 double-acting + free flow oil return (total 5 hydraulic outlets), Optional For lift by rams, in addition to the standard ones: 1 single-acting and 1 double-acting (total 6 hydraulic outlets) or 2 double-acting (total 7 hydraulic outlets), For lift with draft and position control, replacing the standard ones: 1 single-acting and 1 double-acting + free flow oil return (total 4 hydraulic outlets) or 1 double-acting and 1 double-acting with float + free flow oil return (total 5 hydraulic outlets)

Joystick

Optional, Proportional electronic control of rear lift (and front lift if present), 1 continuous flow with adjustable flow rate and free flow oil return, 3 double acting (replacing the standard ones). Potentiometer for adjusting the hydraulic flow rate and 49 l/min oversized pump

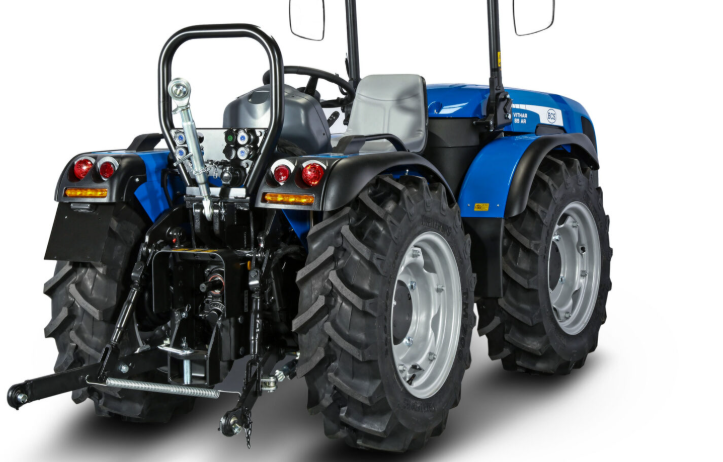

Rear Lift

By two external rams. Standard: raising/lowering - Optional: position and draft control, 3-point implement hitch Standard: Normal couplings cat. 1 and 2. Optional: Quick-couplings cat. 1 and 2, L-shaped, arms adjustable in length and hooks adjustable in width, Third point tie rod Standard: with manual adjustment - Optional: hydraulically controlled upper link and tie rod link arm, Ball joint lifting capacity 2300 kg

Front Lift

Optional, Two external rams with front protection and 2 double-acting control valves (total 4 hydraulic outlets), Third point arms Rigid with quick-couplings cat. 1 and 2, Lifting capacity 800 kg

Towing Device

Standard: front - rear CUNA cat. C adjustable in height, Optional Rear tow hook: EC approved or EC with Slider frame or CUNA with Slider frame or EC tow bar with Slider frame

Driving Position

Monodirectional or Reversible with rotating platform and twin pedal assembly

Safety

Front homologated roll-bar with gas springs for easy lowering and lifting

Cabin

Optional, "Compact Pro" low-profile, pressurised and homologated cat. 4 (activated carbon filters required). Soundproof, with monocoque body mounted on silent-blocks, beacon lamp and fabric seat. Safety cell integrated into the structure, automotive-type instrument dashboard and air vents. Air conditioning and Brake-Off parking brake as standard. Optional: activated carbon filters for cat. 4

Dashboard

With TFT colour display showing: hours of operation, engine rpm, forwarding speed, PTO rpm, particulate filter clogging level, instantaneous fuel consumption, battery voltage and current time. Analogue instrumentation complete with engine rpm, engine coolant temperature and fuel level indicator. Warning lights and acoustic alarm

Electric System

Battery 80 Ah / 12 V - Alternator 95 A, Standard equipment Vehicle Control Unit, single-pole dashboard socket, rear 7-pin and 3-pin sockets

Weight

With roll-bar 2170 kg

Tank Capacity

58 litres

Warranty

2 years warranty, with the opportunity to extend the guarantee up to 4 years

Minimum External Width

1125 mm
