BCS Valiant 60 RS T4 – 4WD Vineyard Tractor for Precision Tasks
Specifications
|
Specification |
Details |
|
Tractor Model |
Valiant 60 RS T4 (4WD) |
|
Vehicle Category |
Vineyard Tractor |
|
Fuel Type |
Diesel |
|
Application |
Greenhouses, Olive Groves, Orchards, Vineyards on Slopes, Pergola Vineyards, Canopy Plantations |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Kohler KDI 1903 TCA, Diesel common rail direct injection, Turbo intercooler, 3 cylinders, 1861 cc, Liquid cooling, Stage V |
|
Power |
36 kW / 49 hp @2600 rpm |
|
Torque Max |
190 Nm@1500 rpm |
|
Transmission |
24-speed synchronised gearbox: 12 FWD and 12 REV with synchronised reverser, Min/max travel speed 0.7 / 35 km/h |
|
Transmission Clutch |
Multidisc in oil bath |
|
Drive Disengagement |
Permanent four-wheel drive |
Suspension & Brakes
|
Specification |
Details |
|
Chassis |
Swinging integral chassis (±15°) OS-FRAME with steering wheels |
|
Differential Lock |
Front and rear with simultaneous locking and electro-hydraulic control |
|
Axles |
Front and rear with planetary reduction units |
|
Brakes |
Multidisc in oil bath with mechanical control, acting on the rear wheels. Independent manoeuvring brakes acting on the rear wheels |
|
Parking Brake |
Acting on service brakes |
|
Steering |
Hydrostatic steering acting on the front wheels. Flow deviator for steering unit in the reversible version |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
8.25-16 * 210/95R16 (7.50-16) * 250/80-18 * 280/70R18 * 280/70R18 Garden * 320/65R18 * 260/70R20 * 31x15.50-15 XTC * 31x15.50-15 STG * 33x15.50-15 XTC |
Components & Features
|
Specification |
Details |
|
Power Take-Off |
Rear, independent from the gearbox and synchronised with forwarding speed. Negative safety hydraulic brake to stop the PTO, PTO clutch Multidisc in oil bath with electro-hydraulic control, PTO rotation speed 540 |
|
Hydraulic System |
Dual circuit with independent pumps, Hydraulic pump flow rate of the power steering and electro-hydraulic controls 17.5 l/min, Hydraulic pump flow rate of the lift and control valves 23 l/min, Maximum hydraulic pressure 180 bar |
|
Rear Control Valves |
Mechanically controlled, Standard With rear up/down lift: 1 double-acting (total 2 hydraulic outlets), With draft-controlled rear lift: 1 double-acting and 1 double-acting with float (total 4 hydraulic outlets), Optional With rear up/down lift: up to 7 hydraulic outlets in total and free flow oil return - With draft-controlled rear lift: up to 5 hydraulic outlets in total and free flow oil return |
|
Rear Lift |
By two external cylinders. Standard: up/down lift - Optional: position and draft-controlled, 3-point implement hitch Standard: Normal couplings cat. 1 - Optional: Quick-couplings cat. 1 (arms not adjustable in length) or Quick-couplings cat. 1 and 2, L-shaped, arms adjustable in length and hooks adjustable in width, Third point tie rod With manual adjustment, Ball joint lifting capacity 1200 kg |
|
Driving Position |
Monodirectional or Reversible with rotating platform and twin pedal assembly |
|
Safety |
Front homologated roll-bar with gas spring for easy lowering and lifting |
|

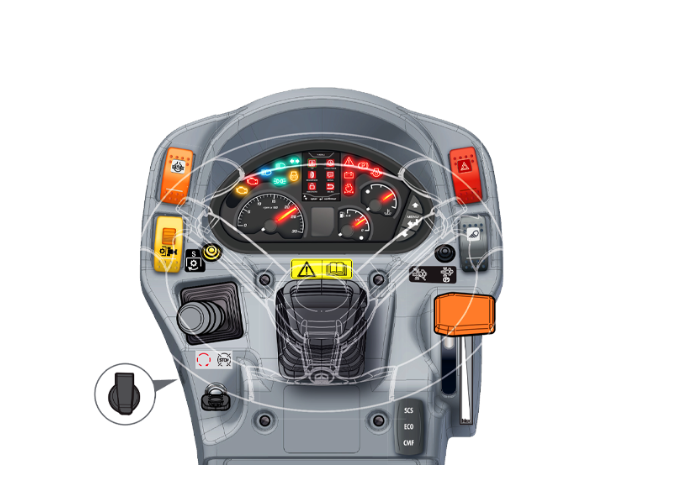

Dashboard |
Instrument panel with analogue gauges and TFT digital colour display. Warning lights and horn |
|
Electric System |
Battery 80 Ah / 12 V - Alternator 95 A, Standard equipment Vehicle Control Unit, street light and indicator system, single-pole dashboard socket, rear 7-pin socket |
|
Weight |
With roll-bar: 1700 kg |
|
Tank Capacity |
58 litres |
|
Warranty |
2 years warranty, with the opportunity to extend the guarantee up to 4 years |
|
Minimum External Width |
1207 mm |
